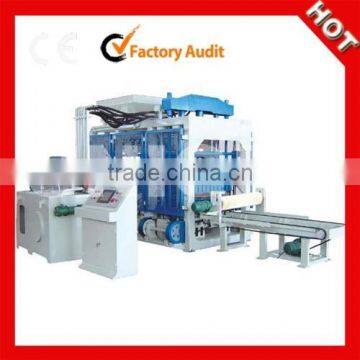

Hot Sale QT8-15 Hollow Concrete Brick Machine Price
- Qingdao
- T/T
You May Like
-
2015 China Famous Brand Artificial Marble Making Machine
-
2015 Good Sale QT8-15 Laying Concrete Block Making Machine
-
Hot Sale Block Production Line QT4-15 Automatic Brick Making Machine
-
2015 Hot Sale QT12-15 Compressed Earth Blocks Machines
-
High Performance QT8-15 Concrete Block Machine In Sri Lanka
-
Hot Sale QT4-15 Concrete Block Machine South Africa
Product Details
Condition | New | Type | Hollow Block Making Machine | |
Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
Method | Hydraulic Pressure | Automatic | Yes | |
Capacity | 11520-15360/8hours | Place of Origin | Henan, China | |
Brand Name | Unique | Model Number | QT8-15 | |
Power | 35kw | Dimension(L*W*H) | 4750*2000*2950(mm) | |
Certification | ISO | Warranty | More than one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
QT8-15 Hollow Concrete Brick Machine Price
Descriptions of QT8-15 Block Machine:
“QT” in QT 8-15 is given by Chinese government that all of the Concrete Block machine must use this Series Number.
“8” in QT8-15 stands for the production quantity is 8 blocks "390×190×190mm" per mould,
“15” in QT8-15 stands for one cycle time is 15 seconds.
Since the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.
The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with a steady year turnover and with a certain number casher to make the factory running.
This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 20 to 50 employees would keep this factory running at full capacity.
QT 8-15 Model Specification
Hollow Block Capacity(390×190×190mm) | 8/module |
Solid Brick Capacity(240×115×53mm) | 45/module |
Holland Brick Capacity(240×115×90mm) | 22/module |
Main Dimension(L×W×H) | 4750×2000×2950(mm) |
Pallet Size(L×W×H) | 980×840×40(mm) |
Pressure Rating | 12~25Mpa |
Vibration | 50~90KN |
Vibration Frequency | 2900~5600r/min |
Cycle Time | 15-20(s) |
Power(Total) | 35kw |
Weight | 8000kg |
Hollow Block Capacity(390×190×190mm) | 11520-15360/8hours |
Solid Brick Capacity(240×115×53mm) | 60480-80640/8hours |
Holland Brick Capacity(200×100×60mm) | 30240-40320/8hours |
Optional Parts:
1. Skip type concrete mixer……………………. Model JS750
2. Mould: we can manufacture the a certain special mould for you accordingly .
3. Double layer Color-face device.
Advantages Of QT Series Automatic Block Making Machine:
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
