Specifications
1.Strong and durable for operation (disc harrow )2.Convenient for transportation
3.Turning radius is small
UT 80HP 4WD used agriculture tractors disc harrow for sale
UT 80-90 Series have both 2WD AND 4WD type tractor for dry and paddy field and for transportation. It can be used for verious farm working with many implements, such as plough, harrow, harvest machine, flail mower ,trailer etc.
1.CE and ISO certificate
2. Four-wheel-drive, a well sealed from drive axle
4. Equipped with famous engine, Lower oil consumption , high torque reservoir, excellent starting
5.Excellent working with draft control lever and position control lever, hydraulic steering system.
6. ROPS, Canopy, Enclosed cabin, Multi-way Hydraulic valve etc.can be chosen according to working request.
Main Specifications of used agriculture tractors disc harrow for sale
Model |
UT704 |
UT754 |
UT804B |
Drive type |
4x4 |
4x4 |
4x4 |
Overal size(LxWxH)mm |
4010X1929X2568 |
4010X1929X2568 |
4010X1929X2568 |
Wheel base(mm) |
2236 |
2236 |
2236 |
Mininum ground clearance(mm) |
340 |
340 |
340 |
Front tire |
8.3-24 |
||
Rear tire |
14.9-30 |
||
Engine | |||
Engine Model |
LRC4108T77-1 |
LR4B3Z-77-A |
LR4MC-77-1 |
Type of engine |
Vertical,direct injection,water cooled, 4 cylinder,4 Stroke diesel engine |
||
Capacity of fuel tank(L) |
78L |
78L |
78L |
Engine power |
51.5KW |
55KW |
59KW |
PTO power at rated speed |
2200 |
2200 |
2300 |
Clutch |
Dry,dual stage type |
Dry,dual stage type |
Dry,dual stage type |
PTO speed |
760 |
||
Gear shift |
8F+4R /16F+8R(Optional)/8F+8R (Optional) |
||
Hydraulic output valve |
Mulit-way Valve (optional) |
||
Category of 3-point link |
II |
II |
II |
Lifting force(at point of 610mm)KN |
15 |
15 |
16.9 |
Speed (Km/h) |
3.20-32.92 |
||

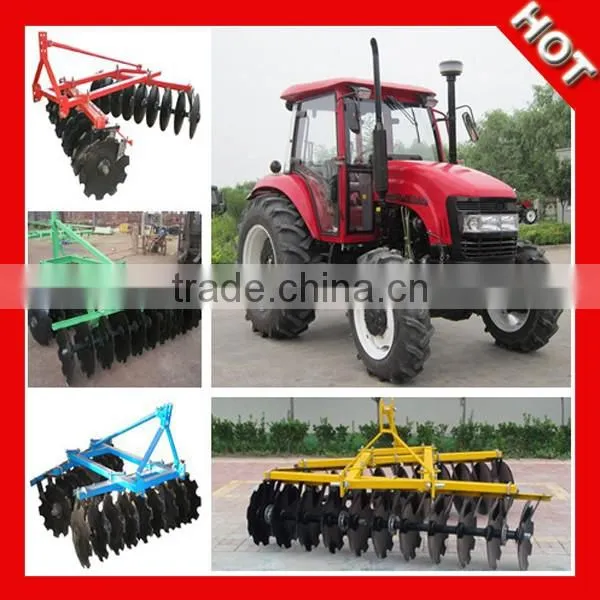

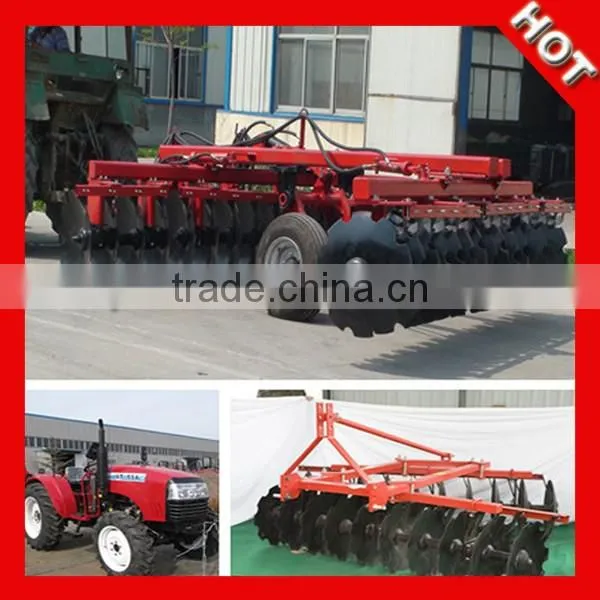

Photos of used agriculture tractors disc harrow for sale

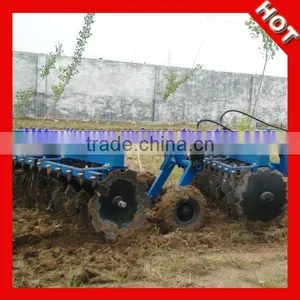

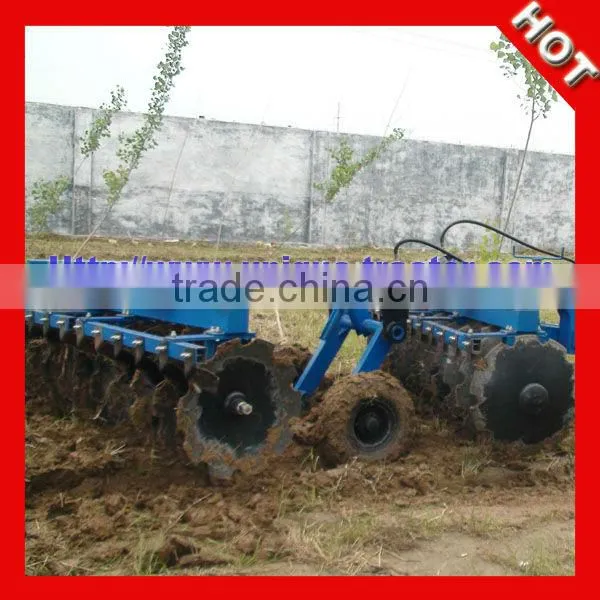

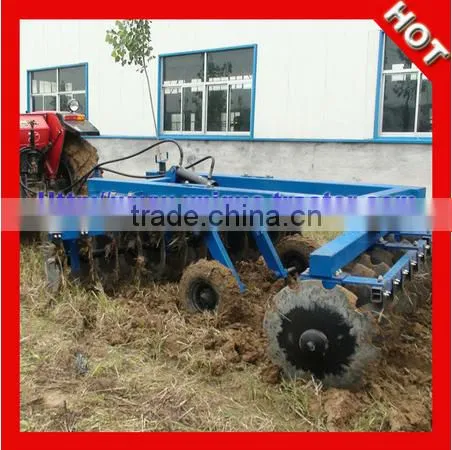

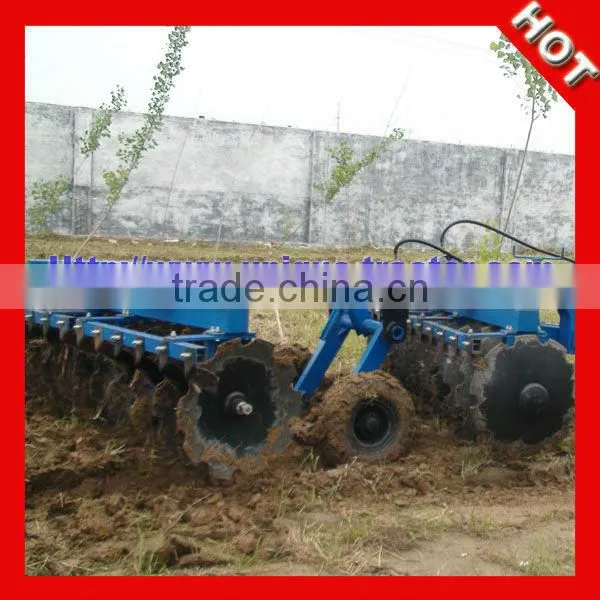

Our heavy disc harrow includes configuration and advantage as below:
Having absorbed all advantages from such machines of foreigners and Chinese, UT1BZ series disc harrow is designed according to the standard as the assembled structure, the main frame is welded with rectangular tubes, on which assembled with hydraulic lifting transportation wheels, spring adjustable device and special used bearing assemblies. Therefore this machine is strong and durable for operation with the reasonable structure, convenient for transportation; turning radius is small, easy to be adjusted and maintained, etc.
UT1BZ Series used agriculture tractors disc harrow for sale
Model |
UT1BZ-2.2 |
UT1BZ-2.5 |
UT1BZ-3.0 |
UT1BZ-3.4 |
UT1BZ-4.0 |
UT1BZ-5.3 |
Dimension(cm) |
520*257*134 |
532*201*134 |
541*303*134 |
550*354*134 |
540*410*150 |
650*540*150 |
Matched Power |
80 hp |
80 hp |
100 hp |
120 hp |
140 hp |
160 hp |
Working Width |
2.2 m |
2.2 m |
3 m |
3.4 m |
4.0 m |
5.3 m |
Qty of Disc |
20 |
24 |
28 |
32 |
36 |
48 |
Disc Diameter |
660 mm |
660 mm |
660 mm |
660 mm |
660 mm |
660 mm |
Working Depth |
180-200 mm |
180-200 mm |
180-200 mm |
180-200 mm |
180-200 mm |
180-200 mm |
Total Weight |
1250 kg |
1350 kg |
1450 kg |
1550 kg |
1700 kg |
2300 kg |
Fitted Power |
59.6 kw |
59.6-74.6 kw |
73.5 kw |
88.2 kw |
102.9 kw |
117.6 kw |
Linkage |
Tows |
Tows |
Tows |
Tows |
Tows |
Tows |
Customers visit us
Zhengzhou Unique Industrial Equipment Co.,Ltd. is professional China wheeled tractor supplier. We can offer you all typs of agriculture tractors 18~130hp. If you are interested in our products, please contact us directly or email us. To quote the tractor price, please kindly inform us followings: 1. what is the power of the wheel tractor? 2. with or without tractor cab? 3. about how many units? 4. need the new tractors to be with any certificated for your market? We are certain that you will be satisfied with your purchase.
