High Quality Motor Grader With Factory Price

High Quality Motor Grader With Factory Price thumbnail-1
High Quality Motor Grader With Factory Price thumbnail-2
High Quality Motor Grader With Factory Price thumbnail-3
High Quality Motor Grader With Factory Price thumbnail-4
High Quality Motor Grader With Factory Price thumbnail-5
High Quality Motor Grader With Factory Price thumbnail-6
High Quality Motor Grader With Factory Price photo-1
High Quality Motor Grader With Factory Price photo-2
High Quality Motor Grader With Factory Price photo-3
High Quality Motor Grader With Factory Price photo-4
High Quality Motor Grader With Factory Price photo-5
High Quality Motor Grader With Factory Price photo-6
US$ 15,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, motor grader
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Unique Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, motor grader
By wheel 4WD
Usage Other, motor grader
Drive Type Gear Drive
Power(W) 125kW
Certificate CE
Brand Name UNIQUE
Model Number UT6114
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Motor Grader:
1.Safety braking system.
2.Luxury cabin, widely overview
3.Hydraulic steering system
4.PLC Control System

Hydrodynamic self-propelled motor grader with factory price

specification

 Hydrodynamic self-propelled motor grader



UTseries of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement .



specification of Hydrodynamic self-propelled motor grader



Basic specification

Engine model

UT6114

Rated power/speed

125kW/2300rpm

Dimension(LxWxH)

8900×2625×3470mm

Operating weight(Standard)

15000kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

77KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

3965×610mm



Detailed Images

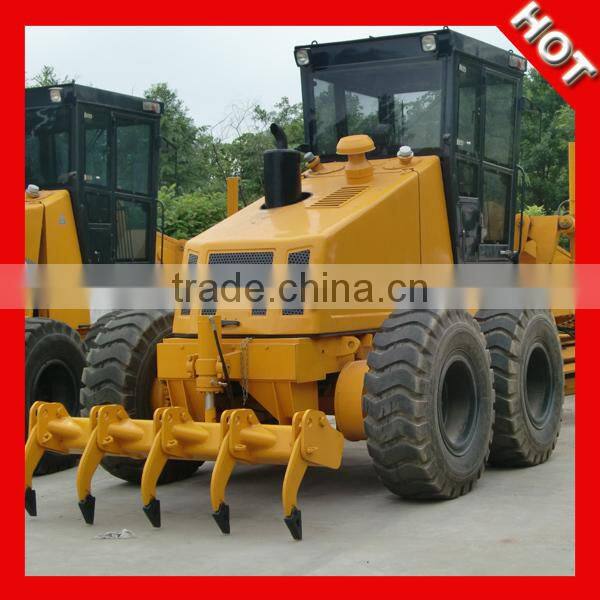

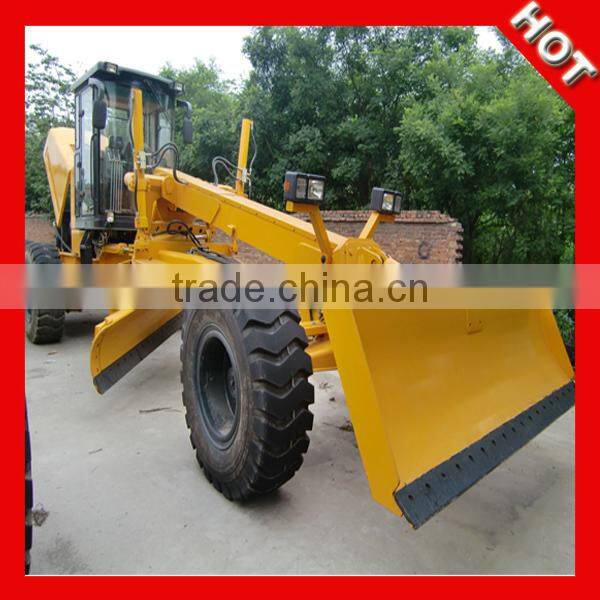

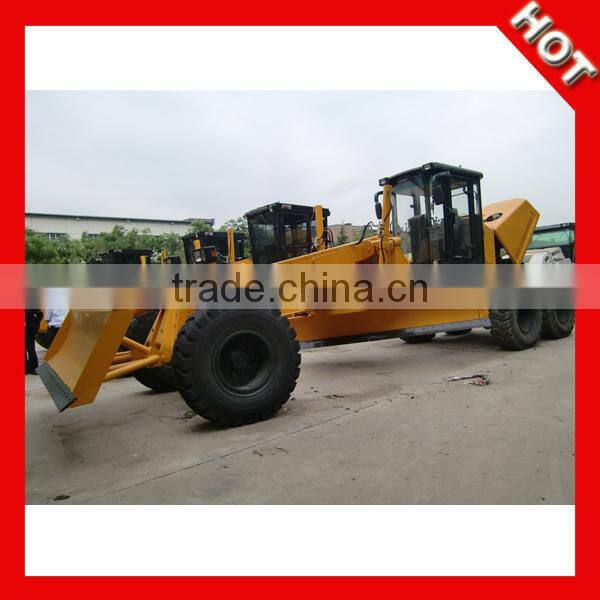

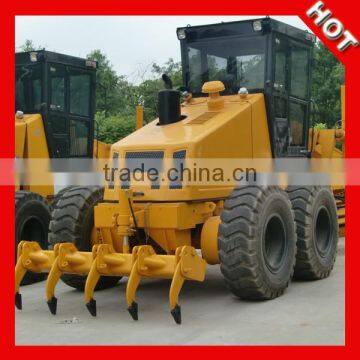

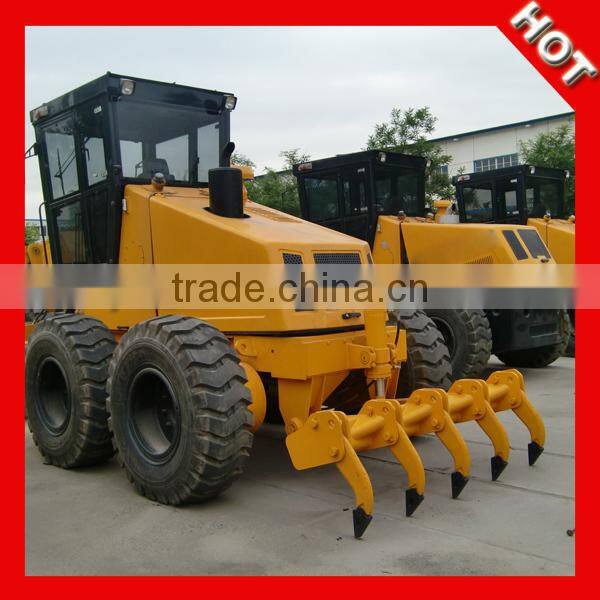

pictures of Hydrodynamic self-propelled motor grader

high quality motor grader with factory pricehigh quality motor grader with factory pricehigh quality motor grader with factory pricehigh quality motor grader with factory pricehigh quality motor grader with factory pricehigh quality motor grader with factory price



After-Sales Service

After-Sale Service:

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time: 30 days after receiving advanced payment.

Products Certificate: TUVRheinland CE, ISO9001:2000

Packing: Standard Exporting Packing

Payment: T/T or L/C



Zhengzhou Unique Industrial Equipment Co., Ltd: Professional Motor Grader Manufacturer.
