Polyglass tape
- 100000 Roll / Rolls per Month
- XINGANG PORT
- T/T Credit Card
You May Like
Product Details
| Brand Name | ENC | Model Number | POLYGLASS | |
| Type | Insulation Tape | Material | Fiberglass |
Product Description
Specifications
Polyglass banding tapes are made of high tensile strength E-fiberglass yarns, impregnated with a thermosetting resin systemPolyglass banding tape
Polyglass banding tapes are made of high tensile strength E-fiberglass yarns, impregnated with a thermosetting resin system.
During the manufacture, the yarns are laid parallel to form a thin flat ribbon with exceptional strength. And during curing the resin fills voids and air spaces to form a homogenous laminate. After curing, the band is rigid with a hard smooth resin rich surface with the resistance of dirt adhesion. Furthermore the tape composed entirely of non-conducting materials is far better than the traditional steel bands.

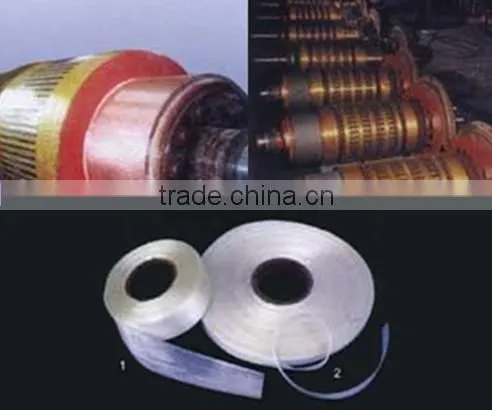

Polyglass banding tapes, which are soft and a little bit sticky, are easy to use and they are widely used in manufacturing heavy duty AC/DC motors, traction motors, generators and transformers.
| Performance:(JB/T6236.3-92) | ||||||||
| No. | Index | Unit | Standard Value | |||||
| 2830 | 2831 | 2840 | 2841-W | 2842-W | 2843-W | |||
| 1 | Volatile | % | ≤5.0 | |||||
| 2 | Resin content | % | 27±2 | |||||
| 3 | Soluble resin content | % | ≥90 | |||||
| 4 | Curing property | Easy to be peeled off ,not adhesion | ||||||
| 5 | Tensile strength before curing | N/10mm width | — | ≥5.00×102(0.17mm thickness) | ||||
| ≥1.00×103(0.30mm thickness) | ||||||||
| 6 | Tensile strength of annular sample(room temp. | MPa | ≥8.00 | ≥9.00 | ≥8.00 | ≥9.00 | ≥1.15 | ≥9.00 |
| ×102 | ×102 | ×102 | ×102 | ×103 | ×102 | |||
| 7 | Tensile strength of annular sample(Termal state) | MPa | ≥5.00×102 | ≥5.60 | ≥9.00 | ≥5.60 | ||
| ×102 | ×102 | ×102 | ||||||
| 8 | Elongation at break of annular sample | % | ≤4.0 | |||||
| 9 | Tensile elastic modulus for annular sample | MPa | ≥4.50×104 | |||||
| 10 | Temperature index for long-term heat resistance | °C | ≥130 | ≥ 155 | ||||
| Storage: Should be kept in dry,well-ventilated,clean place under 30°C,or Reefer.Storage life (from the ex-factory date),pls see below: | ||||||||
| Storage Temp.°C | ≤5 | 6~10 | 11~15 | 16~20 | 21~25 | 26~30 | ||
| Storage Life Month | 12 | 8 | 6 | 4 | 3 | 2 | ||
