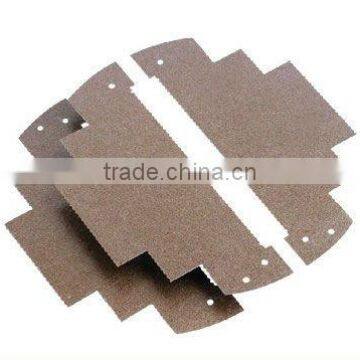

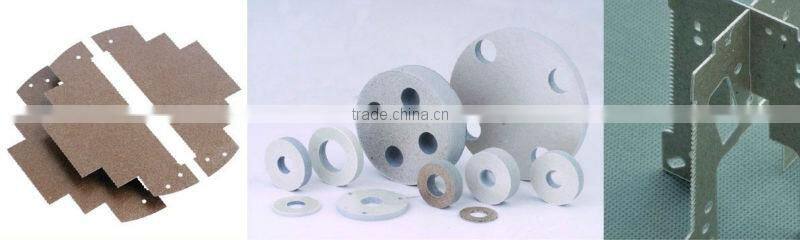

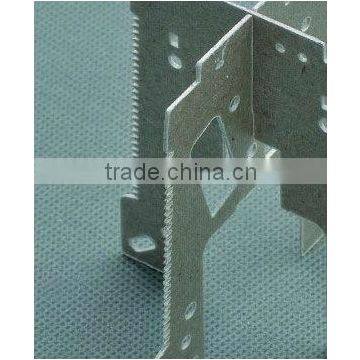

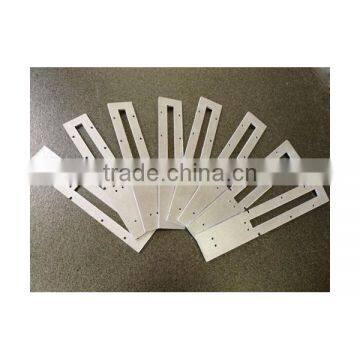

Mica parts, Mica laminate made of our own high quality mica plates are used for home appliances, electro-magnets, etc.,Mica Laminate & Mica Parts
Mica laminate and washers made of our own high quality mica plates are used for home appliances, electro-magnets, micro-sensitive control gear etc.
MICA SEATS
1.Properties and Usages
Mica seats are parts made after processing of hard type insulate board. At normal conditions, it has very good mechanical strength and electric capability and suitable for use as back-seat insulator.1.Properties and Usages
2.Specifications
The size and dimension and thickness of the back seat mica is to be fixed between the users and manufacturer.
Mica Tube
Mica tube is formed by muscovite paper or phlogopite paper fixed with silicon resin, and processed by roll form.
It has good dielectric capability and excellent mechanical strength, and often used as the insulating tube form material in all kinds of electric equipments, motors, furnaces, electric-arc furnaces, other metallurgy industry equipments.
Mica tube is 10~1000mm length, the internal diameter is 8—300mm. Special size and tolerance can be determined by agreement.
Tolerance for Mica Tube
Standard Internal Dia. (mm) |
Internal Dia. (Deviation) (mm) |
External Dia. (Deviation) (mm) |
| <10 | ±0.3 |
±0.4 |
| 10-20 | ±0.4 |
±0.5 |
| 21-50 | ±0.5 |
±0.7 |
| 51-100 | ±0.6 |
±1.0 |
| 101-200 | ±0.8 |
±1.2 |
| 201-300 | ±1.0 |
±1.5 |
