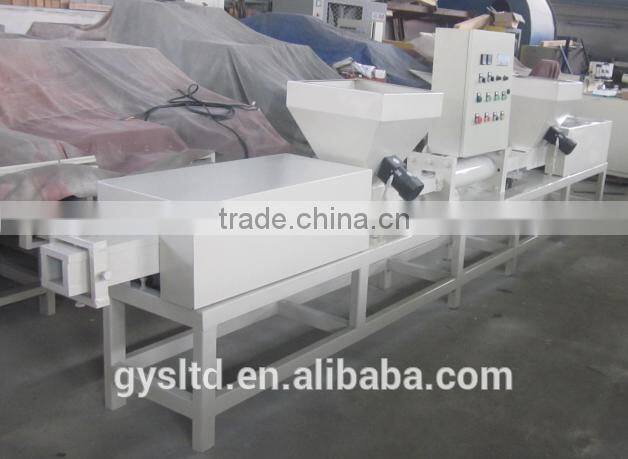

Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine

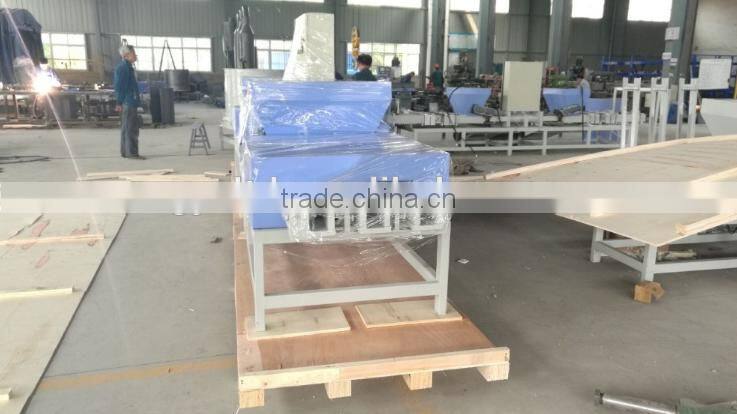

Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-1

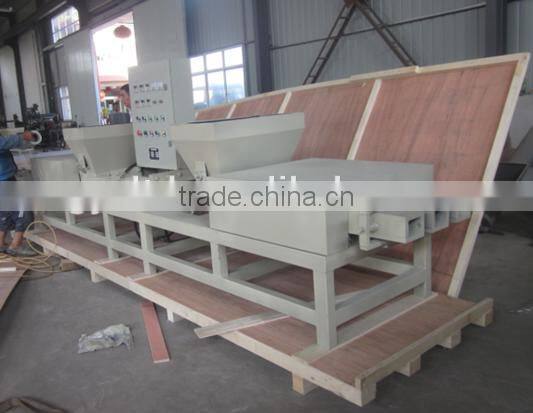

Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-2

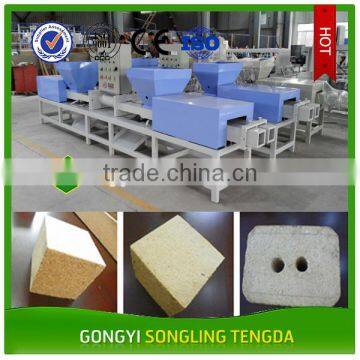

Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-3
Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-4
Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-5
Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine photo-6
US$ 5,000 - 8,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Application:
Biomass Fuel
Production Capacity:
99%
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.
Application Biomass Fuel
Production Capacity 99%
Place of Origin Henan, China
Brand Name SLTD
Model Number Double head
Voltage 380V 50HZ
Power(W) 12kw
Dimension(L*W*H) 4900*668*1800
Weight 1000-2200kg
Features Energy Saving
Condition New
Certification CE/ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Single-head Wood Shaving Pallet Block Machine for Pallet Block/Sawdust Pallet Block Press Machine is mainly used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics. The raw material can be wood shavings, sawdust and so on. The pallet blocks have the charasteristics of smooth surface, water proof ,and durable for use.

Model
Size (mm)
Capacity
Glue water amount
Density
Power
(kw)
Weight
(kg)
Double head
4900*668*1800
2-3m3/24h
100-120kg/m3
550-600kg/m3
12
1000
Four head
4900*800*1800
4-5m3/24h
550-600kg/m3
550-600kg/m3
16-18
1500

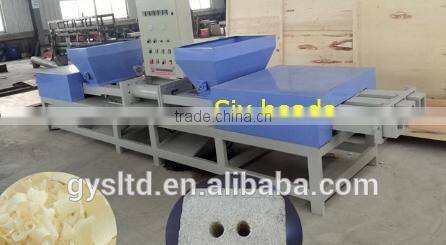

Six head
4900*940*1800
6-8m3/24h
550-600kg/m3
550-600kg/m3
24
2200
Machine features

1. Recycle wood waste, heat treatment or fumigation;
2. High tempearture, high pressure can press the material into pallet feet one tim, standard size, without metal material in the pallets;
3. Pallets can be used in export package, free fumigation, and free quarantine; don't need any test before export;
4. According the the European standard, biodegradability;
5. Good water proff, insect prevention, and protection against termites and do not easy to burn;
6. Strong bearing capcity, no deformation and can be reused;
7. Can be forked from four directions, easy to use the pallets;
8. Can be store in bulk, save room, easy to be transport.

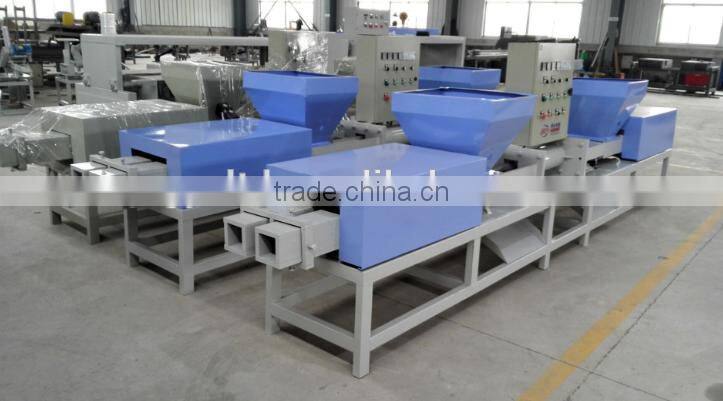

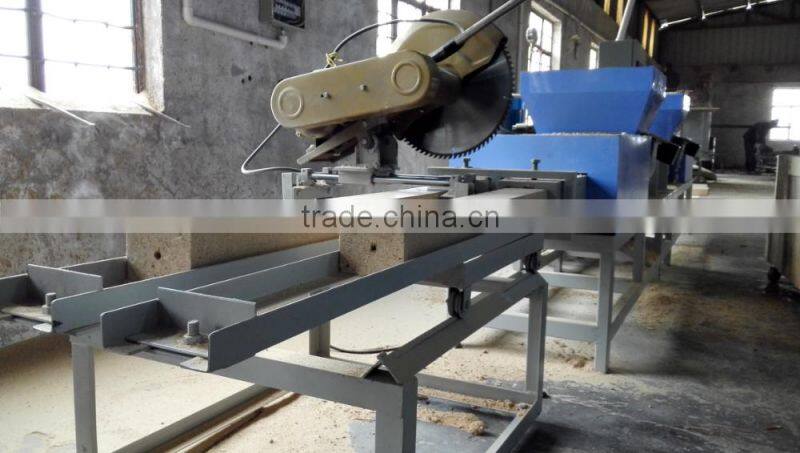

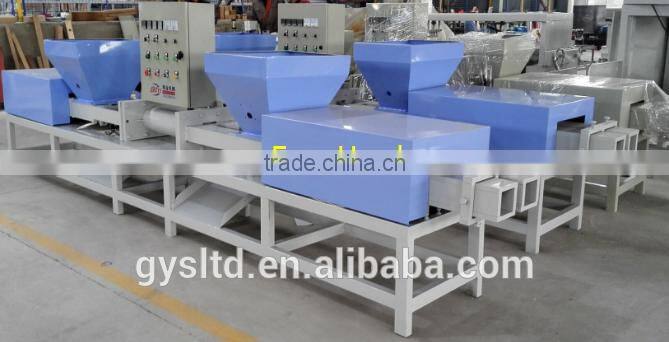

Detailed Images

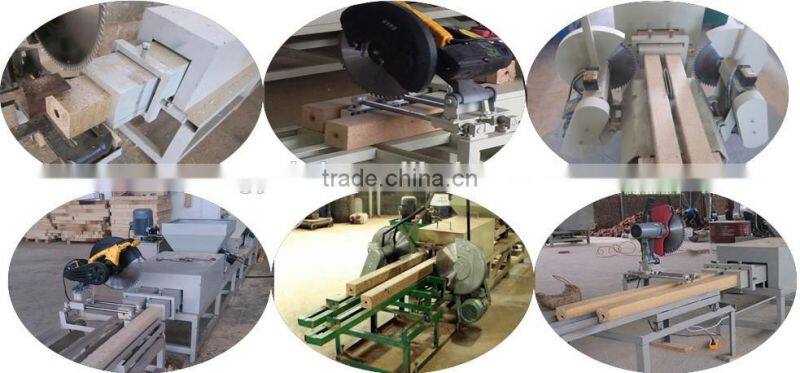

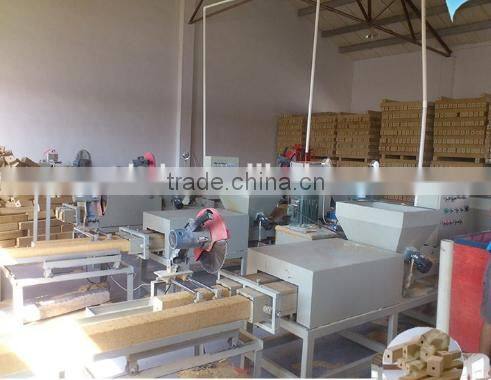

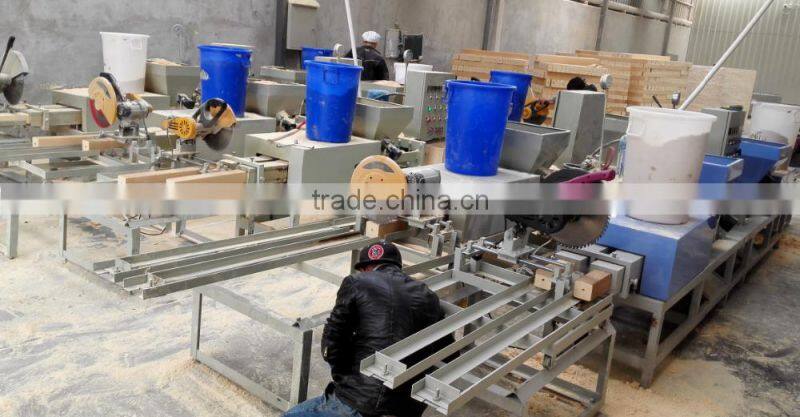

Machine line

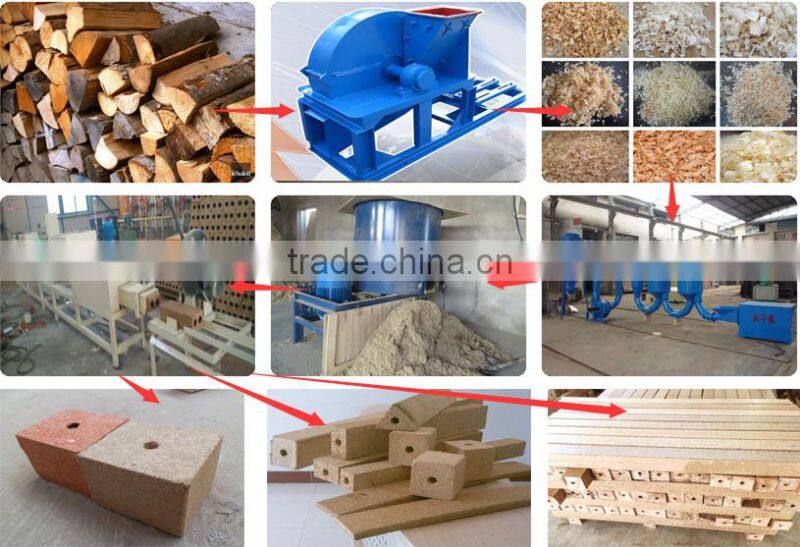

Wood sawdust block making machine production line is consist of four main machines: the crusher, the dryer, the gluing machine and the hot press machine(main machine of the wood block production line).


A: Crusher: if the material is bigger than 5mm, we need to crush the material into 5*5mm for further processing;

B: Dryer: If the material's moisture is above 15%, we need to dry the material before mixing with glue;

C: Gluing machine: 16-17% glu for 100kg raw material, glue water amount 100-120kg/m3.

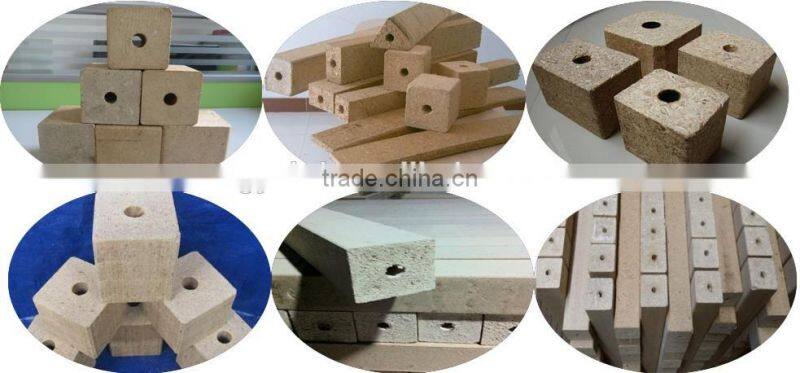

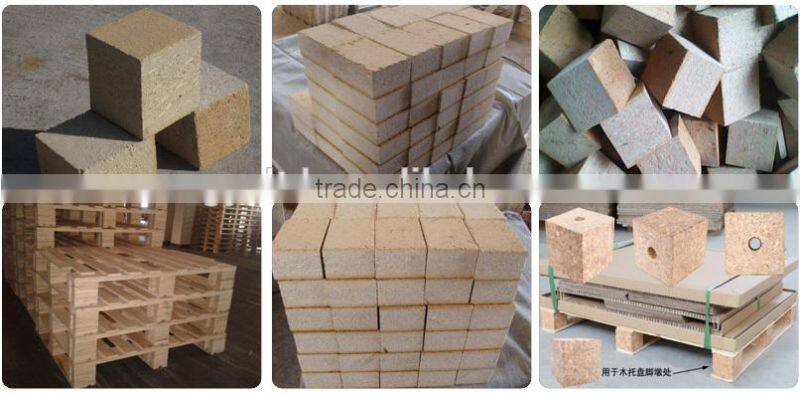

Final products
Certifications
Our Company
Our Service

(1)Pre-sales service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d.Other travel arrangements.
(2)After-sales service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
(3)Our shipping terms
We can accept EXW FOB and CIF terms.
Also our freight forwarding has high effieiency and quick shipping speed.
If stock machine, we can send out your products within 7 days.
If you need special molds or customized producion line, the delivery time according to you machine quantity, but we will ship machines for you as soon as possible.
(4)Our payment terms
T/T, L/C, Western Union or others.
