Specifications
1.Oilseed drying/roasting machine2.Suit for peanut, sesame, coffee, nuts etc.
3.CE ISO
4.100-1000kg/h
5.Gas, electric,coal
Peanut/Soya/Oilseeds
Drying Machine/Roasting Machine
Introduction:
Suitable for roasting/drying different oilmaterials, such as rapeseed, peanut, soybean, sesame seeds, cottonseeds, coconut, palm, olive, etc.
6GT Series closed rotary roaster is a new roasting machine for food and oil plant. It is developed by our experience of oil machine manufacture for many years based on home and abroad advanced technology. It changes the single outlet into double outlet, increase the input diameter and achieve the fast input and fast output. It has these main features: reasonable structure, temperature meter, easy operation and high capacity. Because the roaster is closed, so it can control the heat to go out and achieve the steaming and roasting function, speed up the roasting seeds. The other advantage is continuous turning work, materials roasted turned constantly, make its surface uniformly touch with pan area and avoid that flat pan roasting seeds not uniform and flammable and scorched, so it develops the oil output and oil quality.
Structure and principle:
The machine is mainly made up of machine frame, hopper, cylinder, block fire cover etc, the motor drives the gear shaft by the V-belt, the gear on the gear shaft drives the big gear on the cylinder to run; then the cylinder rotates continuously and uniformly, the materials are fed into the cylinder to be roasted.
Main data:
6GT-400
Productivity:100kg/h
Weight:150kg
Power:1.1kw
6GT-700
Dimensions(mm): 1700 x 1220 x 1440
Productivity: 200-250kg/h for oilseeds
Power: 1.5kw
Weight: 200kg
6GT-1000
Dimensions(mm): 2350 x 1150 x 1660
Productivity: 450kg-550KG/h for oilseeds
Power: 3kw
Weight: 700kg
6GT-1500C
6GT-1500G Dimension (mm):2300*1190*1470 mm
Handling capacity:700-1000kg/h for oil seeds
Power: 2.2-3KW
Weight: 1080KG
The fuel is coal, also gas, LPG(4000kcal/h), electricity.
NOTE:C means to use wood, coal for the fuel; G means to use gas or LPG for the fuel. Stainless steel structure is accepted.
6GT1500 you can choose matched with one bucket conveyor for feeding the raw materials into
roaster.

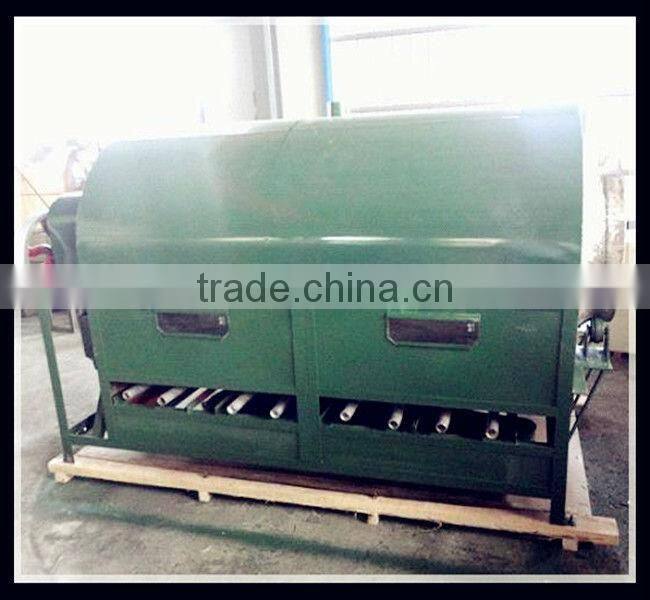

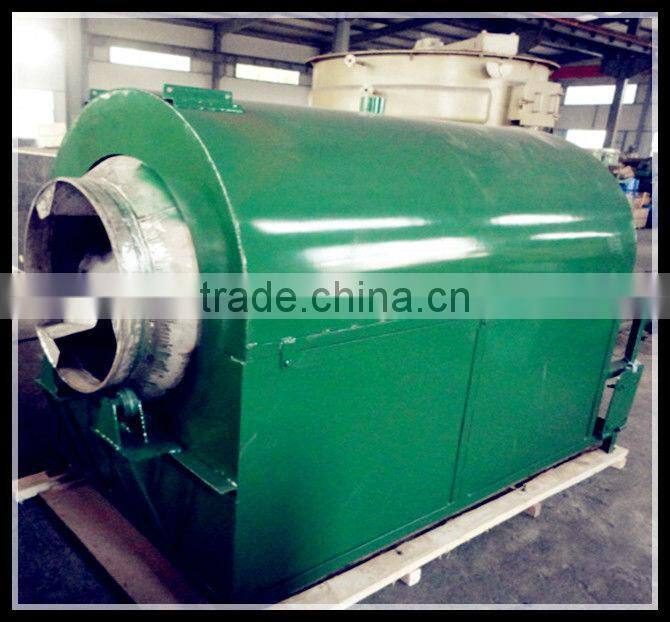

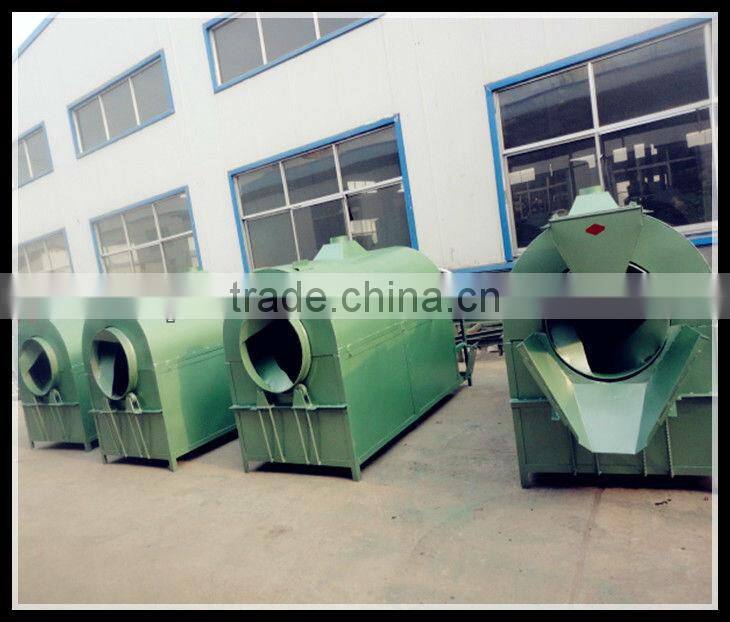

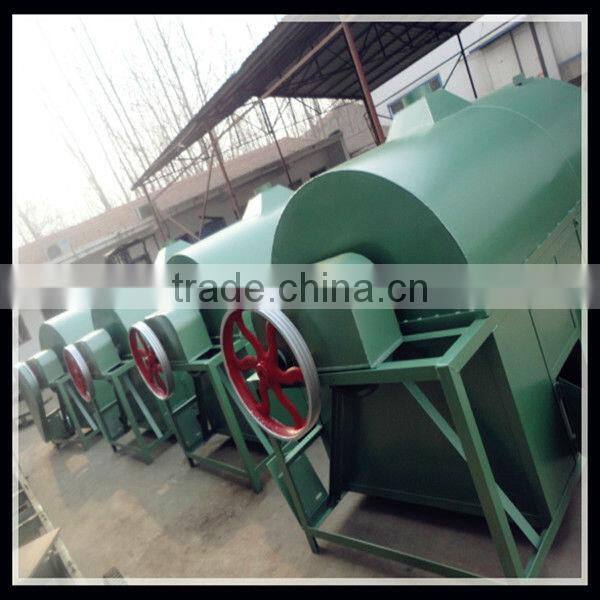

Detail Pictures:
Any more question and advice, pls call TEL:0086 15038228936 !!! I'm waiting for you.
