Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Suspension System > Bracket Bushing

Bracket Bushing

Name: Bracket Bushing
Brand: DALON
SKU: 138856463

US$ 0.05 - 50 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Type:

Suspension Bushing

Bushing Material:

Other

Position:

Front

Contact Supplier Request Quote Chat Now

Dalon Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port ( Shanghai Ningbo)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Suspension Bushing

Bushing Material Other

Position Front

Size 5-300mm

Car Make OEM

OE NO. OEM

Place of Origin Zhejiang, China

Brand Name DALON

Model Number SJ;BIMETAL

Oilless Slidng Series: BiMetal Bushing

We always focus on quality as you are .....

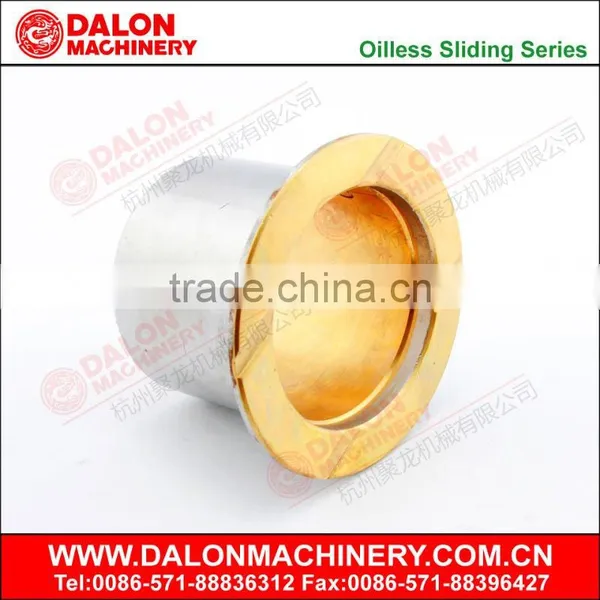

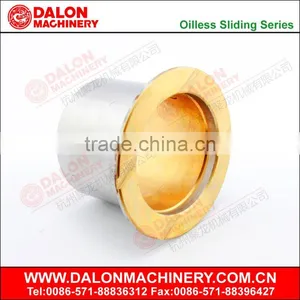

Bi-Metal Self-Lubricating Bushing Briefing:

-----------------------------------------------------------------------------------------------------

Sliding Bushing is composed of high quality low carbon steel and bronze with
the characters of wear high speed, high load capacity, very compact dimensions, low wear.
It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-
conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
The dimensions of the bushing both in metric and imperial series are in accordance with
DIN1494/ISO3547 Standard sizes.

Performance		Data
Load capacity P	Static load	150N/mm²
Max line speed V	Dry friction	0.4m/s
Max line speed V	Oil lubrication	5m/s
PV value limit	Dry friction	2.2 N/mm².m/s
PV value limit	Oil lubrication	10 N/mm².m/s
Friction coef u	Dry friction	<2.2
Friction coef u	Oil lubrication	<0.08
Alloy Hardness		HB60-90
Alloy material		CuPb10Sn10

Other Bi-Metal Series Bushing:

SJ-2 BIMETAL BUSHING

It's made of high quality low-carbon steel plate, sintered porous bronze as its interlayer and the compound of PTFE material and Pb as its surface. It can offer the properties of good self-lubricating anti-abrasion, low-friction, fully develop the advantages of metal and multi-element polymer. It's used in steel metallurgical industry, such as those used in roller grooves of successive casting machines, cement grout pump and spiral conveyers for cement etc.

Alloy Hardness		HB45-70
Alloy material		Cu70Pb30

SJ-3 BIMETAL BUSHING

made by high quality low-carbon steel strip, rolled and sintered many times with tin-lead-bronze alloy on surface. It is with very high fatigue-resistance, load capacity, excellent surface property. It is mainly used in main shaft and con rod shaft of internal combustion engine.

Alloy Hardness		HB40-60
Alloy material		Cu75Pb22Sn3

SJ-4 BIMETAL BUSHING

It consists of a specially designed surface layer of PTFE formulations and is specifically applied for the high PV value of gear pump bearing. It can work on the condition of semi-dry. It's used in medium, high-pressure gear pump, ram pump, vane pumps etc.
