Rubber Belt Conveyor|Conveyor Belt for Sand/Coal Mining

FOB Price

USD $500 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Xia Men Shanghai Guangzhou Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangxi, China	Brand Name:	Hengchang Rubber Belt Conveyor	Model Number:	B 1000, Kinds of model
Condition:	New	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Rubber Belt Conveyor|Conveyor Belt for Sand/Coal Mining

Applicaiton of Rubber Belt Conveyor :

Rubber Belt Conveyor is widely used in mining ,metallurgy ,coal and other industries ,the belt conveyor can be used to transfer bulk materials or materiala in pieces ,according to different transgerring requirements ,the transferring system can be of only one belt conveyor or consists of several conveyors ,or combined with other transferring equipmens .the belt conveyoer .

Advantages of Rubber Belt Conveyor

1.High precision, high loading capacity with hard mask gear(2 to 3 times more than soft mask gear)

2.Long service life ( reach 10 years)

3.Compact construction and small floor space (reduce above 50%)

4.Light weight and small volume (reduce 50%)

5.Specially vertical driving construction, more used in mining delivery machinery under coal mine well.

Main technical parameters of Rubber Belt Conveyor

Belt width (mm)	Belt length(m)/Power(kw)			Belt speed (m/s)	Capacity (t/h)
Belt width (mm)	I(L/kW)	II(L/kW)	III(L/kW)	Belt speed (m/s)	Capacity (t/h)
B400	≤12/1.5	12-20/2.2-4	20-25/3.5-7.5	1.3-1.6	40-80
B500	≤12/3	12-20/4-5.5	20-30/5.5-7.5	1.3-1.6	80-190
B650	≤12/4	12-20/5.5	20-30/7.5-11	1.3-1.6	130-320
B800	≤6/4	6-15/5.5	15-30/7.5-15	1.3-1.6	280-550
B1000	≤10/5.5	10-20/7.5-11	20-40/11-12	1.3-2	440-850
B1200	≤10/7.5	10-20/11	20-40/15-30	1.3-2	660-1200

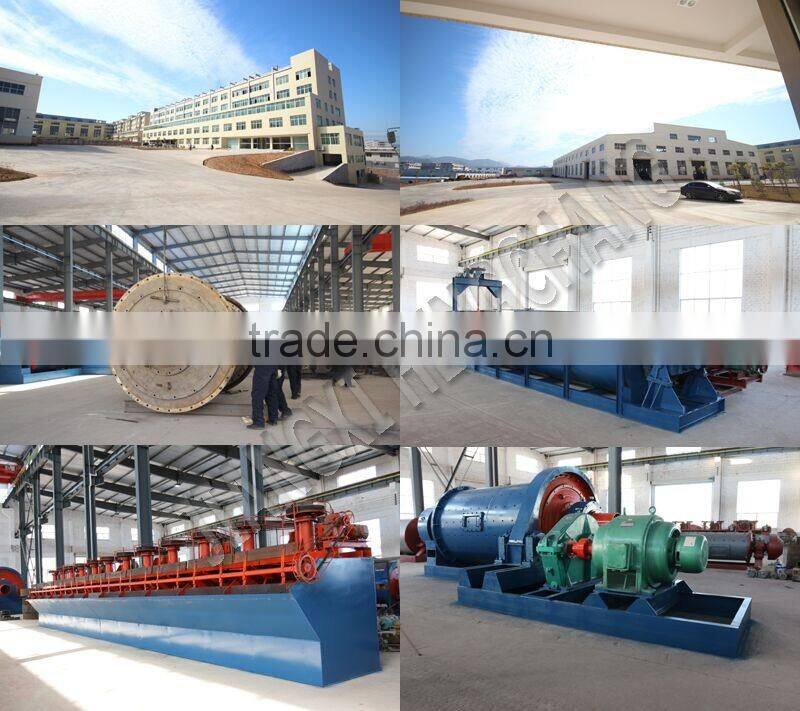

Welcome to visit our factory in your free time !

Contact Us

Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd.: Contact nameBella Chen; Phone86-797-5792699; AddressNo. 3 Chuangye Road, Guzhang Industrial Park,Shicheng County Ganzhou,Jiangxi
