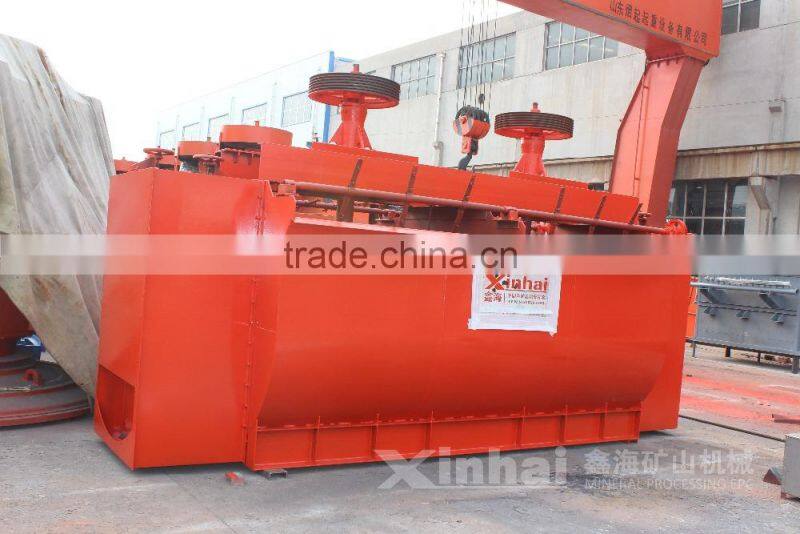

high quality zinc ore separation , zinc ore separation for mining plant
l Mechanical agitating, self air- inflation and self slurry absorbing.
l Constitute a flotation unit with JJF flotation cell to be the absorbing tank of each process.
zinc ore separation —Application
l It can be widely used in the beneficiation of non ferrous metals, black metals and nonmetals.
l It is suitable for the roughing and scavenging of the large and middle dressing plants.
zinc ore separation— Technical Parameters
Model | Effective volume (m³) | Capacity (m³/min) | Impeller diameter (mm) | Impeller rotating speed (r.p.m) | Agitating motor power (kw) | Scraper motor power (kw) | Single tank weight (kg) |
SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.55 | 470 |
SF-0.7 | 0.7 | 0.3-1.0 | 350 | 336 | 3 | 1.1 | 970 |
SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 | 1400 |
SF-2.8 | 2.8 | 1.5-3.5 | 550 | 280 | 11 | 1.5 | 2120 |
SF-4 | 4 | 2-4 | 650 | 235 | 15 | 1.5 | 2600 |
SF-6 | 6 | 3-6 | 760 | 191 | 30 | 2.2 | 3000 |
SF-8 | 8 | 4-8 | 760 | 191 | 30 | 1.5 | 4292 |
SF-16 | 16 | 5-16 | 850 | 169-193 | 45 | 1.5 | 7415 |
SF-20 | 20 | 5-20 | 730 | 186 | 30×2 | 1.5 | 9823 |
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
this is our factory and our office building.
this is our laboratory and laboratory data.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
this is our project in Africa.
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
How To Contact Us?
You can tell us the kind of ore that you want to process and the capacity that you need. We will give you the most suitable models.
