Introduction of hot sale wood chipper/ wood chipping machine
Drum Wood Chipper can process branch material, slab, waste veneer, bamboo, cotton stalk and other wooden fiber bar, and cut them into certain specifications for the raw material of shaving board, chipboard, the man-made board and pulp of paper making industry. The machine can cut material into pieces with good quality and wide adaptability. It has features of advanced structure, convenient operation and maintenance, and it is made up of machine base, knife roller, up and down feed roller, conveyor belt and hydraulic system, etc.
Technical Data of hot sale wood chipper/ wood chipping machine
|
(MODEL) |
BX215 |
BX216 |
BX218 |
|
(CUTTER DIAMETER) |
500 |
650 |
800 |
|
(CUTTING TIP AMOUNT) |
3 |
3 |
3 |
MAX INPUT |
170 |
240 |
300
|
(POWER) |
37 |
55 |
110
|
|
CAPACITY |
3000-5000 |
5000-8000 |
8000-18000 |
|
DIMENSION (MM) |
1.6*1.3*1.55 |
2.1*1.9*1.75 |
2.75*2.2*1.95 |
|
WEIGHT |
2800 |
4000 |
7000 |

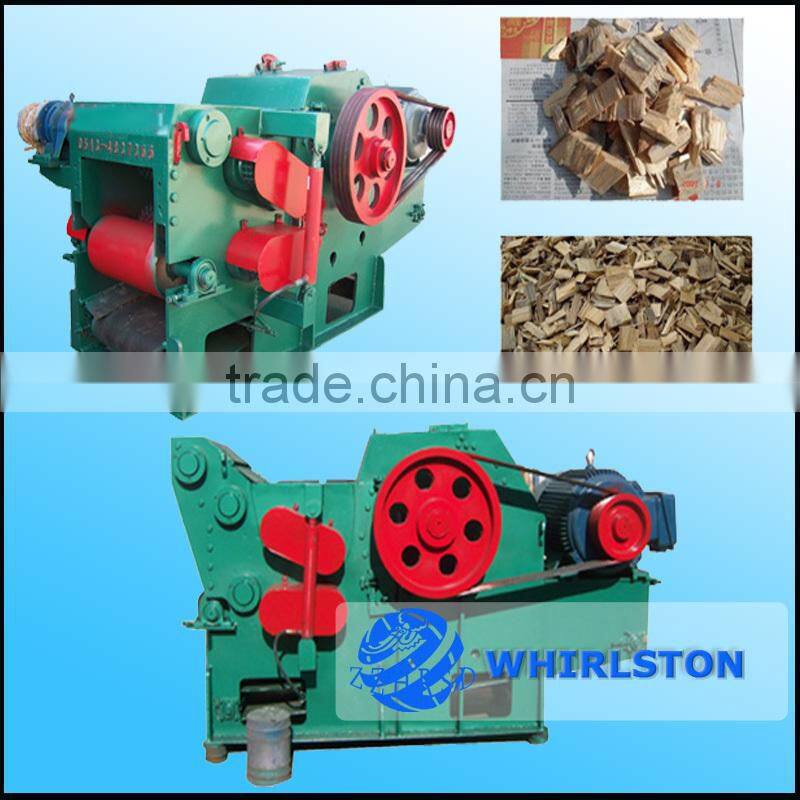

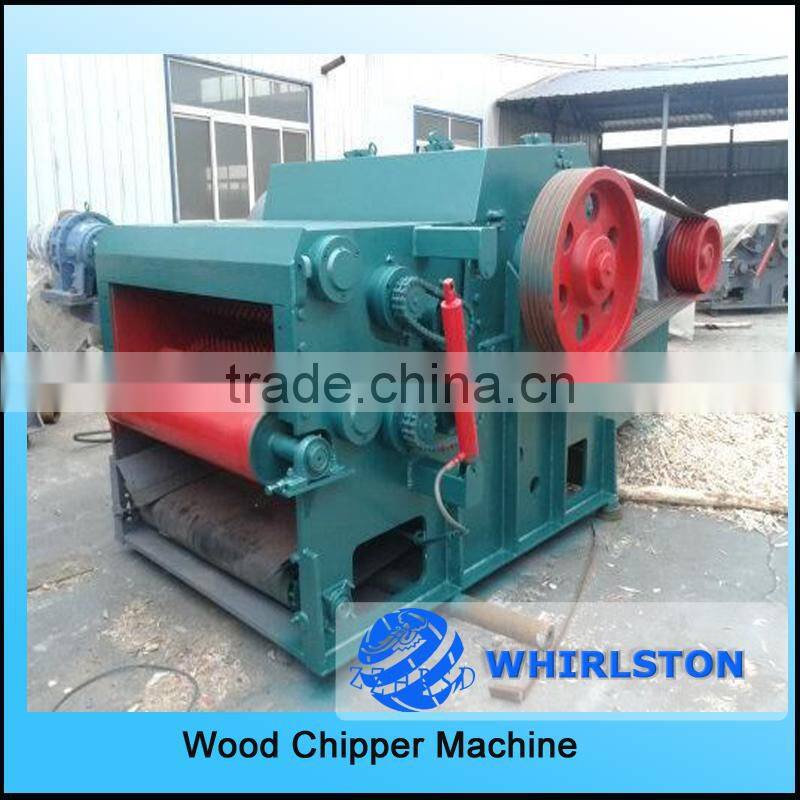

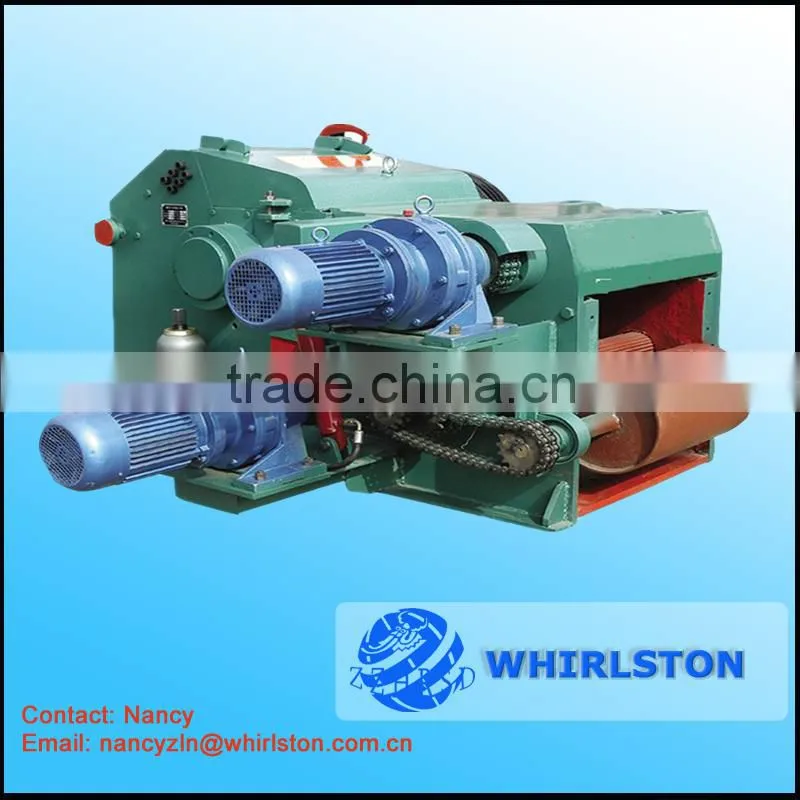

pictures of hot sale wood chipper/ wood chipping machine
1. Hydraulic system: From the pump to oil cylinders, the cover can be opened; it is easy to change the blade. It can raise the upper feed roller in maintenance; it is easy to adjust the space between fly cutter and knife.
2. Two or three knives are installed on knife roller with specialized in manufacturing, the fly cutter is fixed on the knife roller through the bolt. According to the different thickness of raw materials by cutting, feed roller assembly by hydraulic system can fluctuate within a certain scope. Wood chipper machine cutting down the qualified materials through the screen mesh from bottom of large discharge will cutting again in the inner of this machine.
For more information,please contact me as soon as possible.
