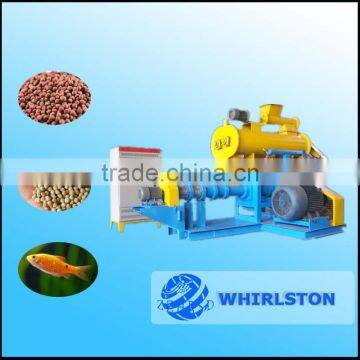

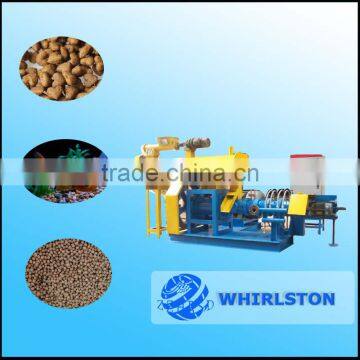

high quality floating fish feed pellet machine, animal feed pellet extruder machine
Floating Fish Feed Pellet Machine Introduction
Floating fish feed machine regard as advanced single screw extruder by belt drive has won lots of
popularity and is widely accepted. The extrusion of feedstocks serve the purpose of sterilization and
ripening under high temperature and high pressure. It generally includes dry type and wet type.
Pellets produced by this machine are solid, water resistant and damp resistant.
Floating Fish Feed Pellet Machine Characteristics
1.Equipped with impeller feeder, advanced frequency convertor and magnetic device for uniform
feeding and reliable operating.
2.The Reasonable combination of practical spindle bearing ensures reliable and safe operation.
3.Adjustable pellets lengths are made through changing various dies.
4.The finished pellets can keep floating for 3-15 hours without pollution to water.
5.Dry type and wet type fish feed machine for your choice.The wet type machine needs a boiler to
make steam which can conduct steam to the conditioner and ripen the raw material in advance. The
output is higher than the dry type machine in the case of the same power. So wet type machine is
more suitable for large scale production.
Floating Fish Feed Extruder Working Principle
Extrusion can be defined as a technological process namely, forcing feed raw material in one or
more of the following process conditions (such as mixing, heating, cutting, etc.) flow through the die, make material forming or eruption gasification. Making feedstocks from loose state into a continuous shaped dough, the resulting paste is extruded through holes in a metal plate. The diameter of the
holes sets the diameter of the pellets, which can range from various different sizes.

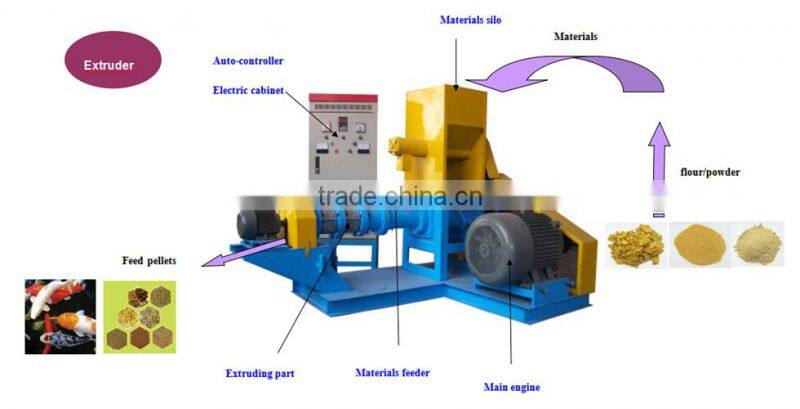

The main process of fish feed pellet machine
Features
1. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours.
2. Various shapes feed pellet are available, superior quality fish feed pellet, shrimp feed pellet and
pet feed pellet can be produced.
3. The puffing time can be controlled according to the puffing degree adjustment.
4. The feed pellet diameter is customized 1.0-20mm by changing the mold.
5. The final product feed pellet is easy digest, and being cooked with high temperature and pressure, the salmonella and bacterial can be killed completely.
6. Pellet length is adjustable.
Technical Parameters
Model | Main Power | Screw diameter(mm) | production capacity |
WDDGP50-C | 7.5-11KW | 50mm | 60-80kg/h |
WDDGP60-C | 15KW | 60mm | 100-150kg/h |
WDDGP70-B | 18.5KW | 70mm | 200-350kg/h |
WDDGP80-B | 22KW | 80mm | 250-300kg/h |
WDDGP90-B | 37KW | 90mm | 350-400kg/h |
WDDGP120-B | 55KW | 120mm | 500-600kg/h |
WDDGP135-B | 75KW | 135mm | 700-800kg/h |
WDDGP160-B | 90KW | 155mm | 1000-1200kg/h |
WDDGP200-B | 75KW | 195mm | 1800-2000kg/h |
WDDSP60-C | 15KW | 60mm | 150-200kg/h |
WDDSP70-B | 18.5KW | 70mm | 250-350kg/h |
WDDSP80-B | 22KW | 80mm | 400-500kg/h |
WDDSP80-B | 37KW | 90mm | 600-700kg/h |
WDDSP160-B | 90KW | 155mm | 1800-2000kg/h |
WDDSP200-B | 132KW | 195mm | 3000-4000kg/h |
The picture of final fish feed pellet
Our Service
1. We provide 1 year guarantee with life-time service.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours. If big problem, we can send technician to customer's local place.
