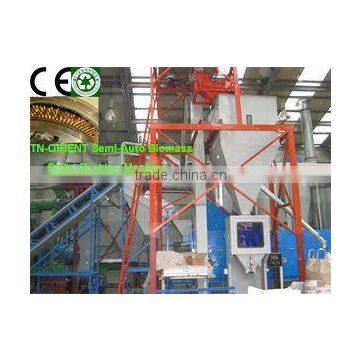

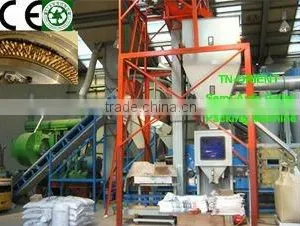

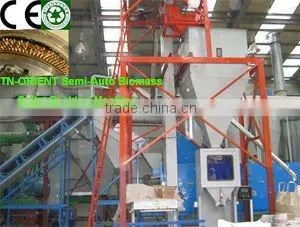

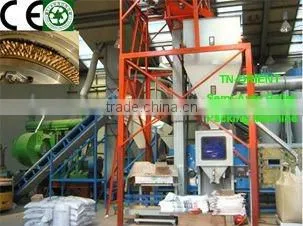

Help CenterTN-ORIENT Wood Packing Machine With Good Quality for Sale
Related Products
-
Auto Packing Machine/Auto Packing Machine With Fast Speed High EfficencyUS$ 8,500 - 11,000MOQ: 1 Set -
Wood Pellet Packaging Machine on 15th November,selinaUS$ 9,000 - 25,000MOQ: 1 Unit
-
November 14's 2012 Auto Wood Pellet Packaging MachineNegotiableMOQ: 1 Unit
-
Exclusive Research and Development Machine Packing With Reasonable Price and High QualityUS$ 1,000 - 10,000MOQ: 1 Set
-
Energy Saving Small Wood Pellet Packaging MachineUS$ 5,000 - 25,000MOQ: 1 Set
Specifications
1.wood packing machine2.high efficiency
3.low price
4.high quality
WOOD PACHING MACHINE :
Equipment performance specifications
- A. Technological process:
Material loading(Connect with storage bin or DT2 BUCKET ELEVATOR) --- Automatic weighing machine(CJD50K-S25 WEIGHING MACHINE) --- Automatic bag feeding packaging machine unit(feed, open, expend the bag, clamp the bag, load the material) --- Horizontal automatic bag sewing machine unit(Automatic convey, sew the bag, cut the thread) --- Finish the pack
- B. Technical parameters:
No. |
Equipment name |
Technical parameters |
|
Material name |
Pellets |
|
Material type |
Granular |
|
Bag type |
Paper bag ,Woven bags(lined with PP/PE film), plastic bag(film sickness 0.2mm) etc. (To pack the monolayer bags, and the bag can be absorbed by sucker) |
|
Bag size(L×W) |
According to client’s request |
|
Packing speed |
6-8 bags/min |
|
Packing weight |
15kg/bag (If the bag size change a lot, it need to customized another feed bin) |
|
Sealing/sewing acceptability |
≥99.9% |
|
Machine noise |
≤70Db |
|
Power type |
5.5KW AC380V±10% 50Hz |
|
Air source pressure |
≥5kg/cm2 |
|
Prepare bag amount |
40~80bags |
|
Maximum air source consumption |
0.5m3/min |
|
Equipment advantage |
Unmanned participate and full automatic packaging machine |
- C. Structure components:
1) Bag feeding device: Automatic take out the premade bags;
2) Bag opening, clamping and expending devices: Automatic open, expend and fasten the bags;
3) Bag holding conveying device: Hold the expended bags and convey;
4) Leading device: Automatic recovers the filled bags;
5) Bag sealing and conveying device: Convey and seal/sew the finished bags;
6) Pneumatic control part: Central system fully controls;
7) Automatic weighing machine: ZDBZJ-15 Electrical weighing machine;
8) Material elevator or conveyor: Automatic elevate/convey the material to the weighing machine bin.

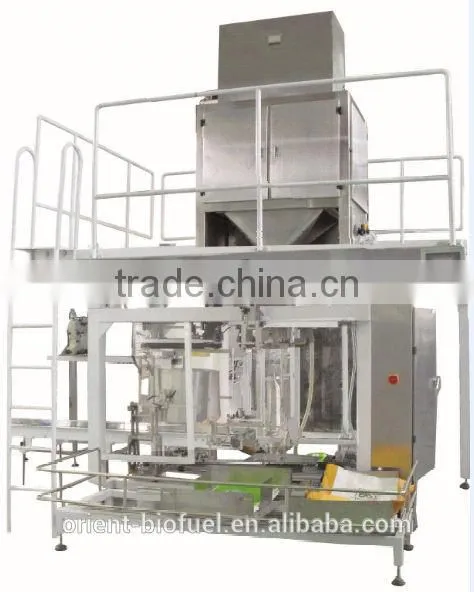

- D. Equipment picture (Only for reference):
- E. Equipment introduction
ZDBZJ-15 AUTOMATIC BAG FEEDING PACKING MACHINE:
This unit is used for packing granular grain powder into the woven bag, bag sewing and output, this unit consists of fully automatic packaging machine, fully automatic sewing machine and product conveyor.
Automatic packaging machine for woven bags can realize automatic bag feeding, bag opening, counting, filling, shifting and output, guiding into automatic sewing machine to realize automatic bag sewing. Realize unmanned packaging process.
This unit adopts touch screen control, and features better man-machine relation, convenient operation, size change and repair as well as safety and reliability.
