2016 Best wood sawdust block making machine/wood sawdust block press machine
Introduction of wood sawdust block press machine :
1.wood pallet machine is used to make the block for the pallet which is used into the transportation.

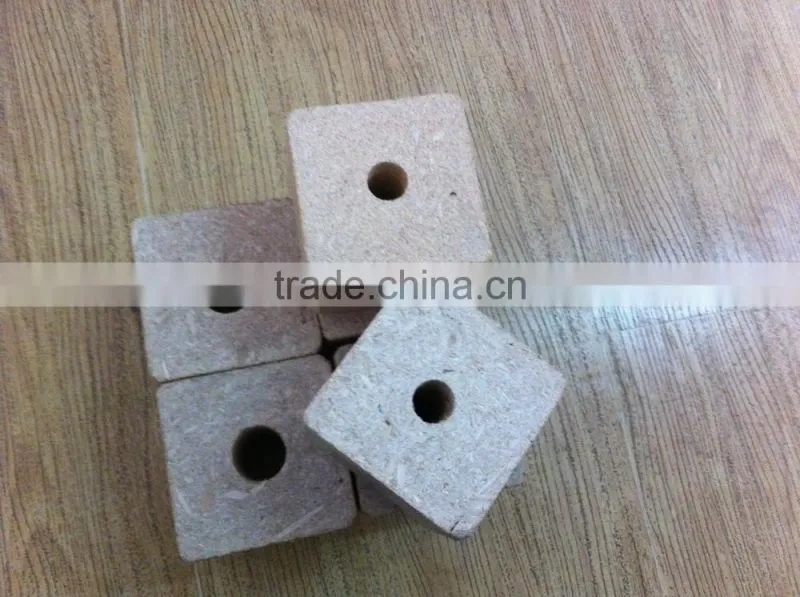

2.The raw material is sawdust and wood shavings.The pallet block's size can be made by customer's demands. The end product is with a hole inside.
3.One whole production line includes the following machines: crushing machine for material; drying machine; gluing machine; forming machine and the saw to cut the product piece by piece.
4.The machine can be made as with two outlets or four outlets. If two outlets, the motor will be 12kw; if four, 16kw.
1.Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood shavings or wood chips;
2.Dry the raw materials into certain moisture as 10%;
3.Mix materials with glue;
4.Press materials into block shape as your demand size.
Technical parameter of wood sawdust block press machine :
Type |
Power (kw) |
Machine size (mm) |
Capacity (m3/24h) |
Glue water amount used (kg/m3) |
Supports density (kg/m3) |
machine weight (kg) |
FR75*75 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
1000 |
FR80*100 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
1000 |
FR80*120 |
13 |
5000*600*1300 |
2.2 |
100-120 |
550-600 |
1050 |
FR90*90 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
1000 |
FR90*140 |
13.5 |
5000*600*1300 |
2.4 |
100-120 |
550-600 |
1100 |
FR100*100 |
13 |
5000*600*1300 |
2.2 |
100-120 |
550-600 |
1050 |
FR100*115 |
13 |
5000*600*1300 |
2.3 |
100-120 |
550-600 |
1080 |
FR100*140 |
13.5 |
5000*600*1300 |
2.5 |
100-120 |
550-600 |
1120 |
FR140*140 |
15 |
5000*600*1300 |
3 |
100-120 |
550-600 |
1350 |

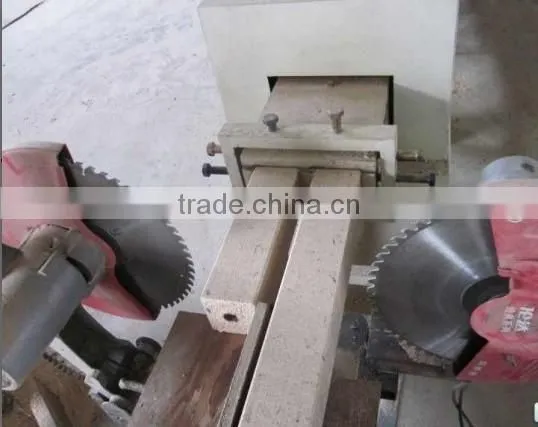

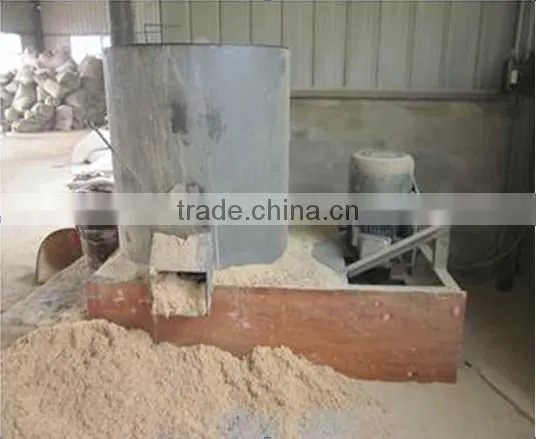

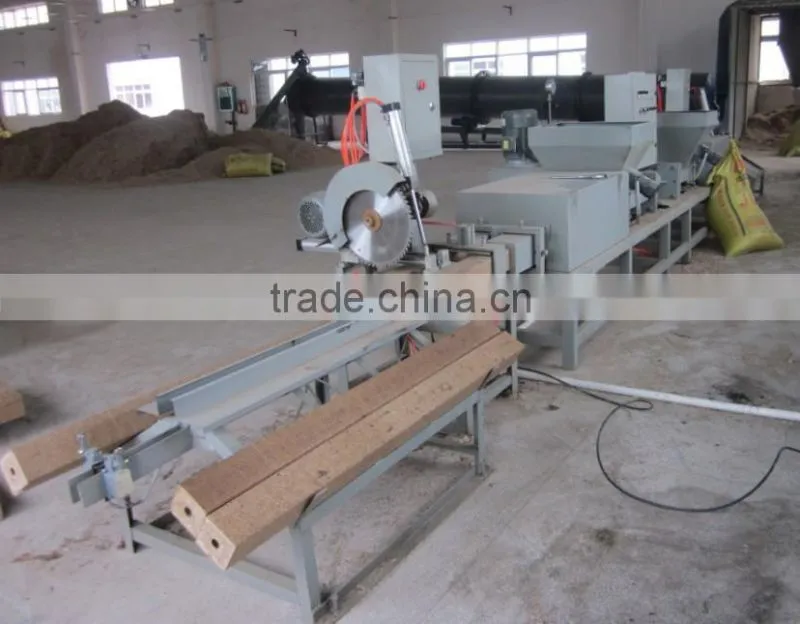

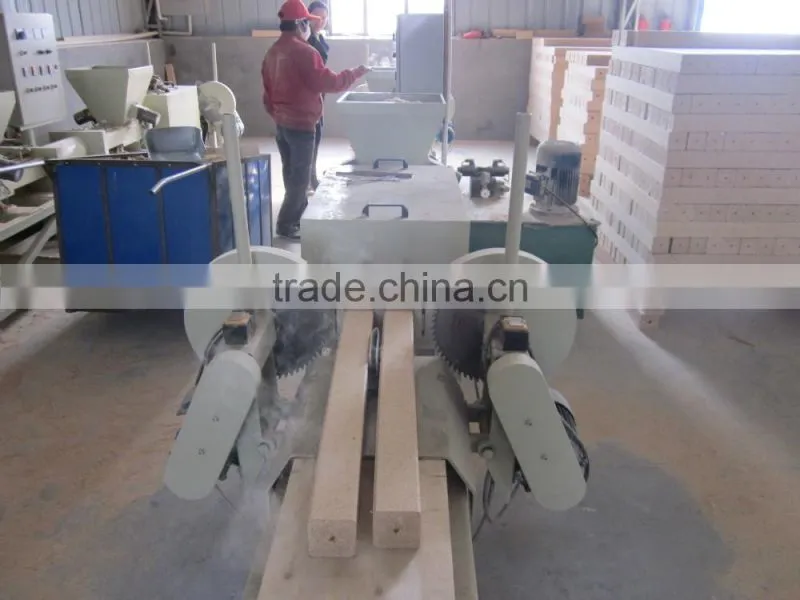

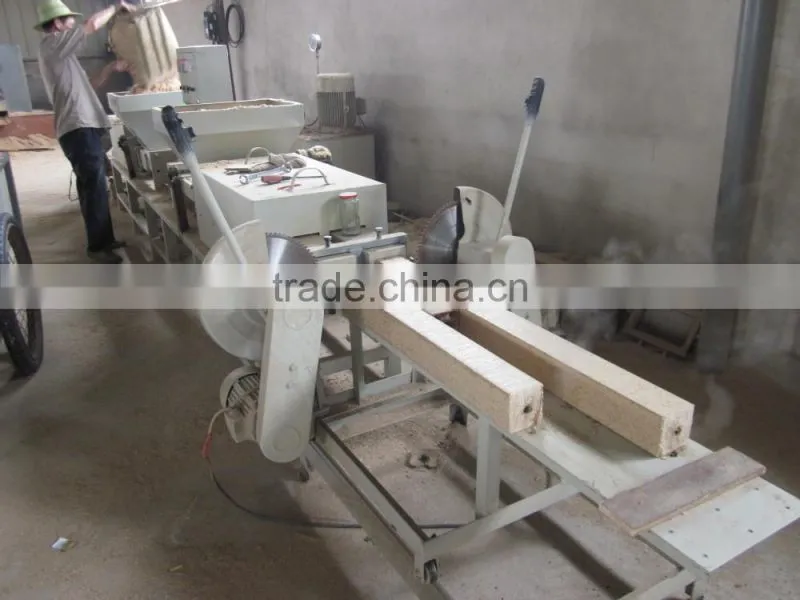

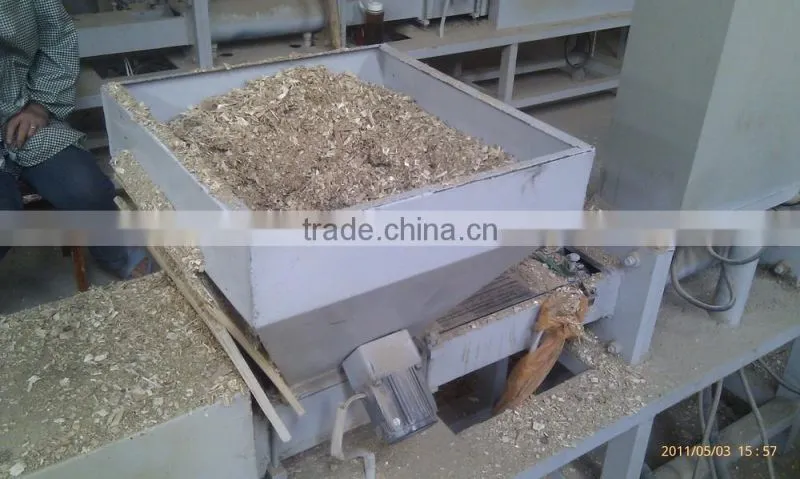

Pictures of wood sawdust block press machine Working:

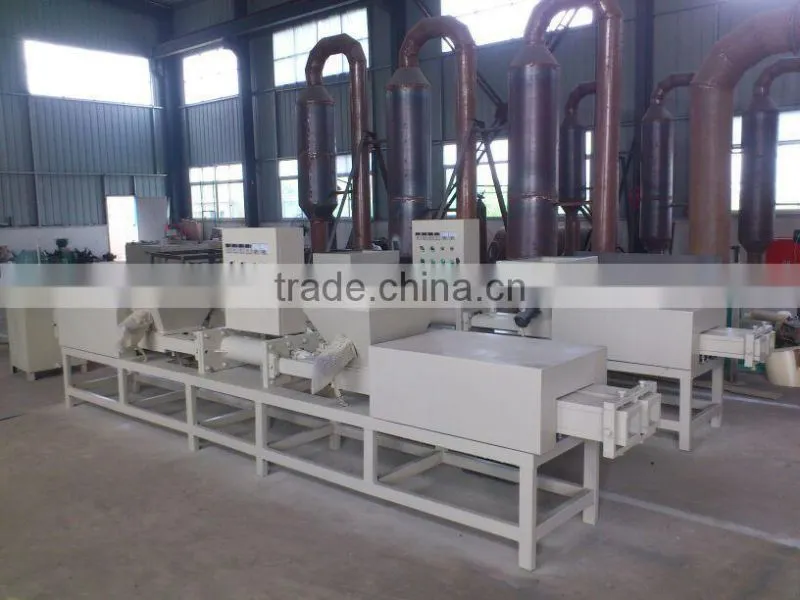

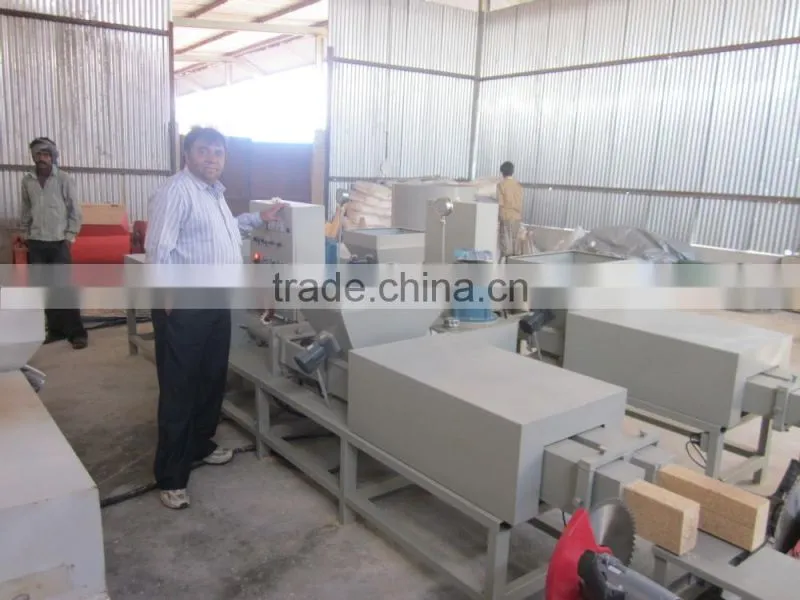

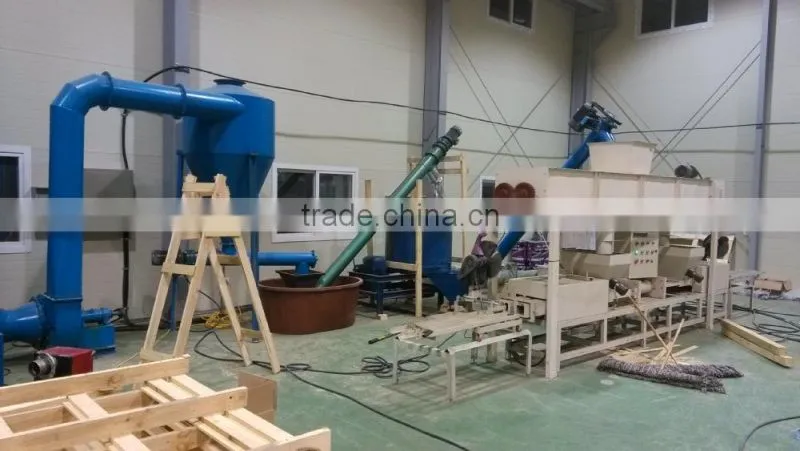

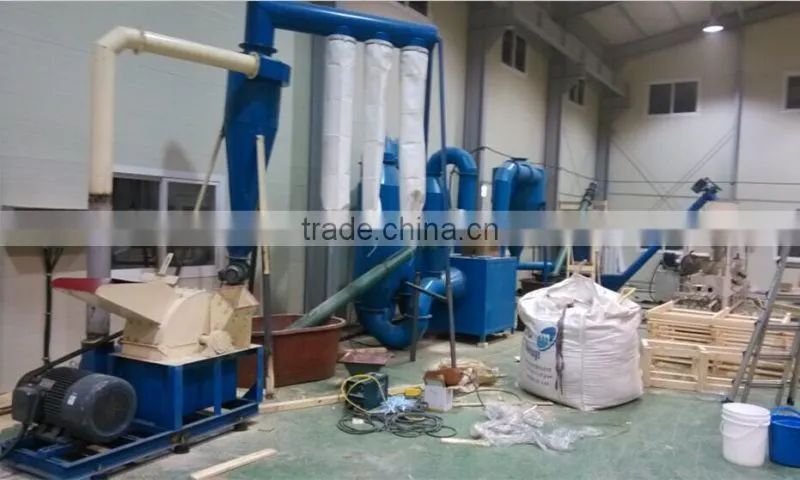

Automatic wood sawdust block press machine for custermer:

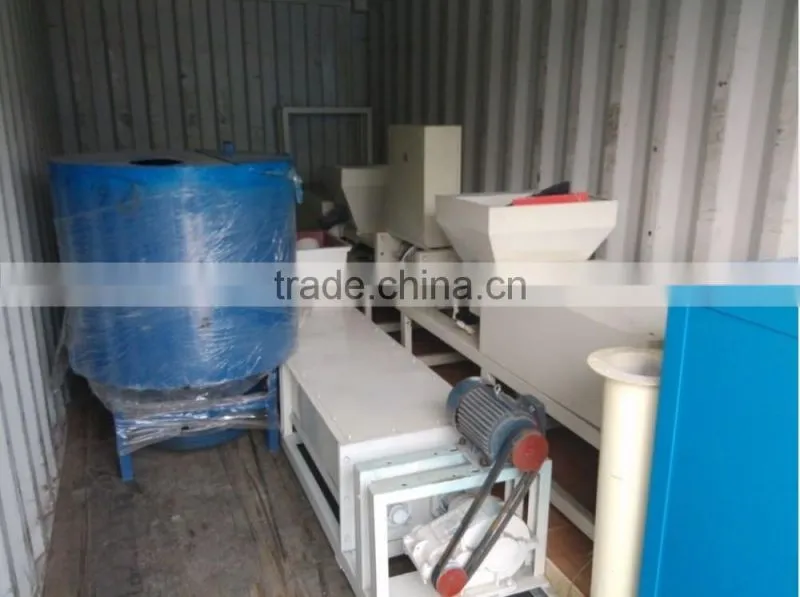

Pictures of delivery:
If You need this machine,pls contact me .
