Excellent!!! candle making machine china/candle wick machine/candle machine manufacturers
1.Description of candle making machine china
1).Candle making machine is used to make candles. The mold is made of seamless copper tube which can be used for more than 10 years non-stop.
2).The way of cooling is by circulating water .Meanwhile we can adjust the output according to custom's demand.
3).There are many kinds of molds which can made different candles. If you need, we all can do it.
2.Structure of candle making machine china
The machine is composed of candle holding dish, water tank, machine frame, spool box, hand wheel, spindle, bevel gear, lead screw, nut, nut shelf, bearing box, cross beam, push-off tube and candle molding tubes, etc.
3.Parameters of candle making machine china
| Model | Candel size (mm) |
Weight (G) |
Pipe quantity |
Time (H) |
Capacity (KG/H) |
Machine size (cm) | Package size (cm) |
| 19B | φ13.5×φ12×170 | 19 | 240 | 6 | 27 | 140×50×90 | 145×55×115 |
| 19C | φ13.5×φ12×170 | 19 | 240 | 6 | 27 | 140×65×110 | 145×60×115 |
| 25A | φ14.5×φ12.5×203 | 25 | 80 | 5 | 10 | 140×50×85 | 145×55×100 |
| 25B | φ14.5×φ12.5×203 | 25 | 240 | 5 | 30 | 140×50×90 | 145×55×115 |
| 25C | φ14.5×φ12.5×203 | 25 | 240 | 5 | 30 | 140×65×110 | 145×60×115 |
| 28A | φ15×φ13.8×203 | 28 | 80 | 5 | 11 | 140×50×85 | 145×55×100 |
| 28B | φ15×φ13.8×203 | 28 | 240 | 5 | 33 | 140×50×90 | 145×55×115 |
| 28C | φ15×φ13.8×203 | 28 | 240 | 5 | 33 | 140×65×110 | 145×60×115 |
| 35A | φ17×φ15×203 | 35 | 80 | 4 | 11 | 140×50×85 | 145×55×100 |
| 35B | φ17×φ15×203 | 35 | 240 | 4 | 33 | 140×50×90 | 145×55×115 |
| 35C | φ17×φ15×203 | 35 | 210 | 4 | 29 | 140×65×110 | 145×60×115 |
| 50A | φ20×φ18×210 | 50 | 70 | 3 | 10 | 140×55×90 | 145×58×105 |
| 50B | φ20×φ18×210 | 50 | 210 | 3 | 31 | 140×50×90 | 145×55×115 |
| 50C | φ20×φ18×210 | 50 | 180 | 3 | 27 | 140×65×110 | 145×60×115 |
| 66A | φ22×φ20×220 | 66 | 60 | 3 | 12 | 140×55×90 | 145×58×105 |
| 66B | φ22×φ20×220 | 66 | 180 | 3 | 36 | 140×50×90 | 145×55×115 |
| 80A | 23X21.5X240 | 80 | 60 | 3 | 14 | 140×55×90 | 145×58×105 |
| 80B | 23X21.5X240 | 80 | 180 | 3 | 43 | 140×52×90 | 145×58×115 |

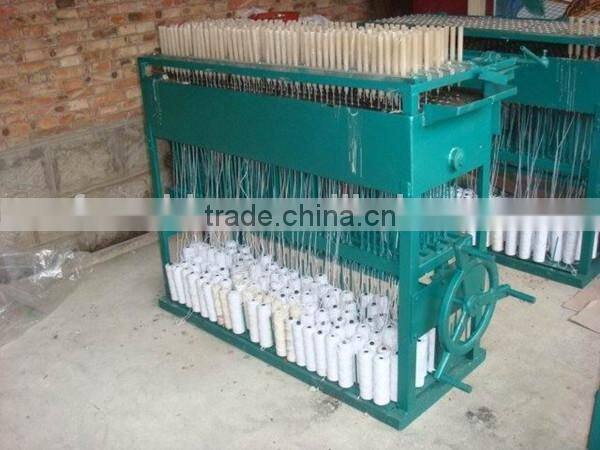

4.Pictures of candle making machine china
If you need this machine,pls contact me.
Contact person:Raymond Meng
Skype:furuimachine008
Mobile:0086-15517543529
