Most Popular Products Charcoal Rod Making Machine Made in China
Specifications
1.charcoal rod making machine2.briquette diameter:50-80 mm
3.sawdust,straw,rice husk
4.fast deliver
5.CE,ISO9001
most popular products charcoal rod making machine made in china
1.introducion of charcoal rod making machine
charcoal rod making machine can make stick shape, wood briquettes of different diameters and different shapes from forest wasted.
charcoal rod making machine is equipped with automatic temperature control and designed to produce high density wood briquette from biomass.
2.direction of charcoal rod making machine
1. dry the material by drying machine or dried it in the sun, till the moisture is less than 12%.
2. put the material into the feeding port of wood briquette machine .
3. it can produce the briquette stick from biomass material without any additives.
3.parameter of charcoal rod making machine
Type | FR-I | FR-II | FR-III |
Capacity ( Kg/h) | 150-200 | 200-250 | 250-350 |
Motor power (KW) | 15kw | 18.5kw | 22kw |
Weight( kg) | 550 kg | 650kg | 800 kg |
Out size (mm) | 1800*700*1450 | 1800*700*1450mm | 2200*900*1600 |
4.raw material of charcoal rod making machine

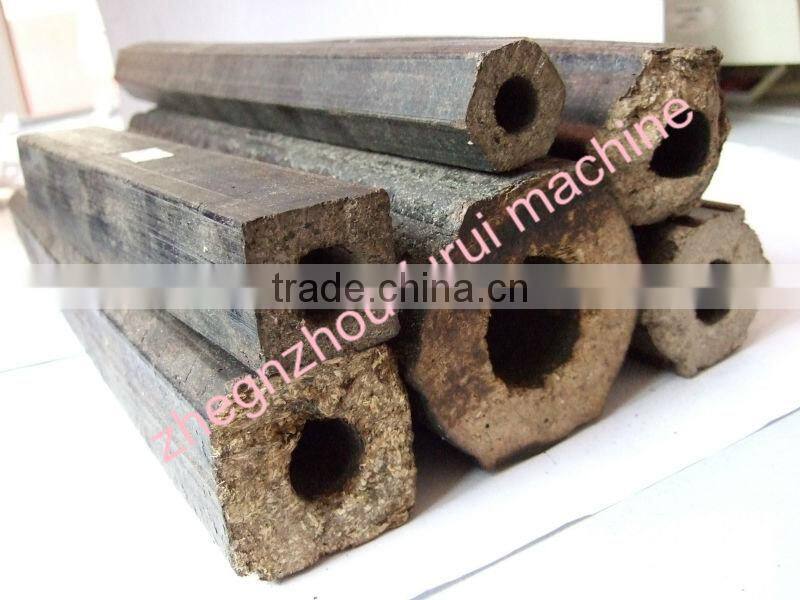

5.briquette showing of charcoal rod making machine
It can make wood briquettes of different diameters and different shapes from biomass ,quadrangle,pentagonal,hexagon.
minimum size is 500 mm L *50 mm W *50 mm L ,maximum 500 mm L *80 mm W * 80 mm H, the length can be controlled by you ,500 mm is just for your reference .
6.packing machine of charcoal rod making machine
1.It adopts infrared quartz pipe to heat the packing material. So it can efficiently save the electric power.
2.The contraction temperature and transmission speed are adjustable.
3.It adopt infrared quartz heating tube and air circulation heating, stable and reliable performance, good effect
packaging, reasonable structure, convenient operation and maintenance.
4.In PE or PVC shrinkable packaging
Model | Power | Conveyor speed | Conveyor weight | Shrink oven (W*H*L) | Weight | Out size (L*H*W) |
FR-400*300 | 6kw | 0-10m/min | 5-10kg | W400*H300*L800mm | 65kg | L1120*H640*W870mm |
7.service of charcoal rod making machine
1. pre-sale service : To provide design focus on pre-market,with installation and commissioning,provision of technical guidance.
2. after-sale service: Strong technical force, excellent market after-sales service, are our source of power development. our machine is guarantee two years.
So what else are you worried about ?
8.from briquette to charcoal ,whole line :
If you are interested in charcoal rod making machine ,pls contact with us .
24hours hot line:0086--13103718527
