Factory supply knitting machine socks/sock knitting machine
Introduce of small computer socks knitting machine
This socks knitting machine can knit socks with a variety of designs and colors , such as tabby, rib, three-dimensional mesh, collective circle, pile loop, half pile loop, partial pile loop, pile loop with jacquard, elastic jacquard with Y heel, multilayered rib collar, additional thick in sole, and dissymmetric design socks, and so on.
Main characteristics of small computer socks knitting machine
1. One essential color includes 8 yarn paths, 5 assistant colors, each of them includes 3 yarn paths, the shuttle in the same loop and same yarn path can do up and down action at about 20 needle distances.
2. The elastic device can set different yarn feeding speed, to adapt different elastic band's request
3. With the highest level reciprocation to improve the production benefit during knitting sock head and sock heel.

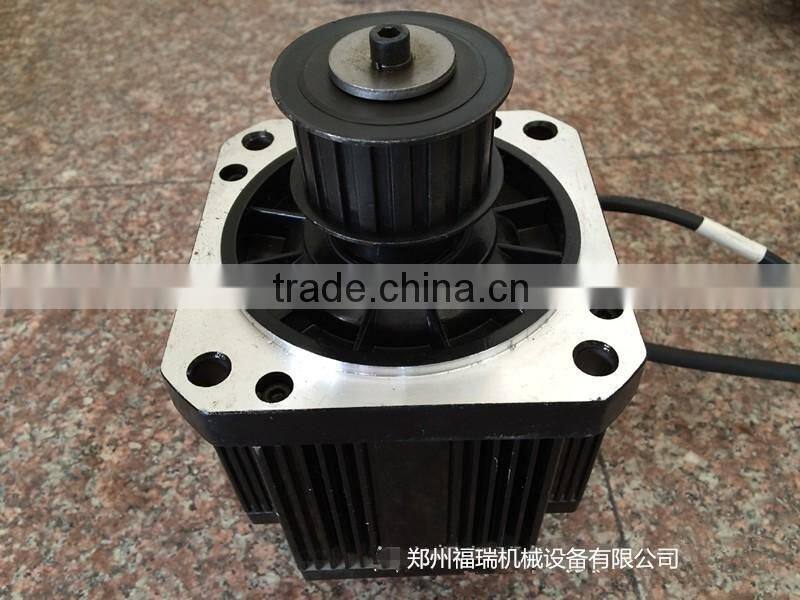

4. Use stepping motor to control, which may adjust the yarn's tensile force and position.
5. It can directly adjust weave density, speed, rotation speed and output for each section on PC and the control panel.
6. It can knit dimensional cocks, can knit the heel willingly.
Technical Data of small computer socks knitting machine
Model |
FR-6F |
Cylinder diameter |
3.75″ |
Needle counts |
200-220N(children's stocking,ladies' stocking) 200-272N(men's stocking) |
R.P.M |
220-320 |
Drive control |
Servo drive |
Drive motor Power required |
1.0KW |
Fan motor Power required |
0.75KW |
Air Pressure |
0.55MPa-0.6MPa |
Electricity |
110V/220V/380V/415V |
Net weight |
300Kg |
Gross weight |
320Kg |

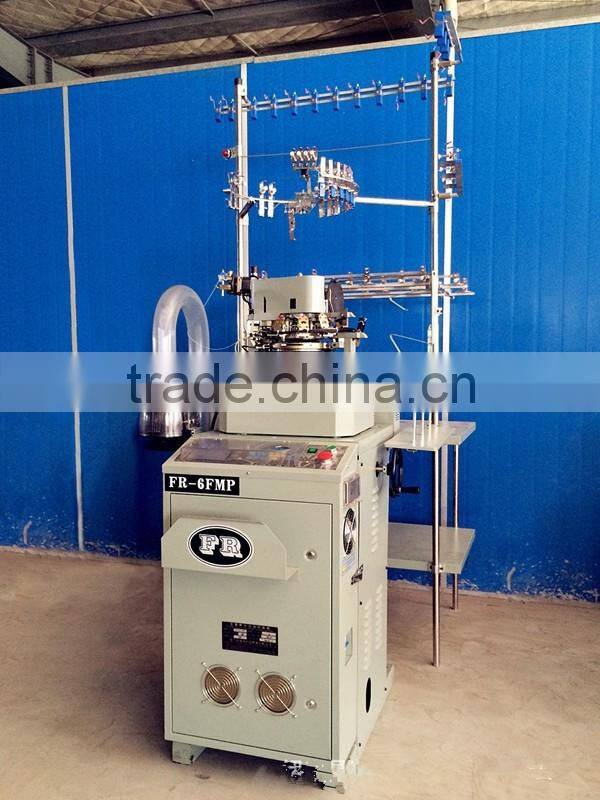

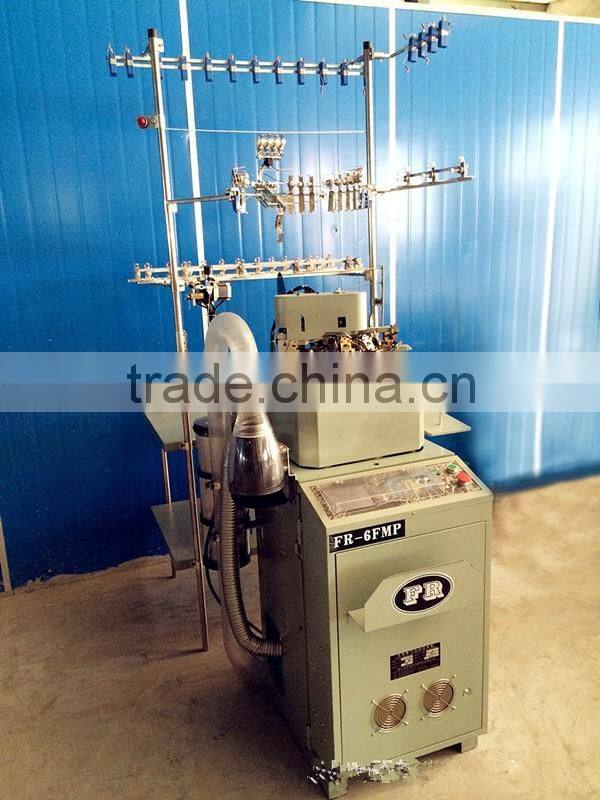

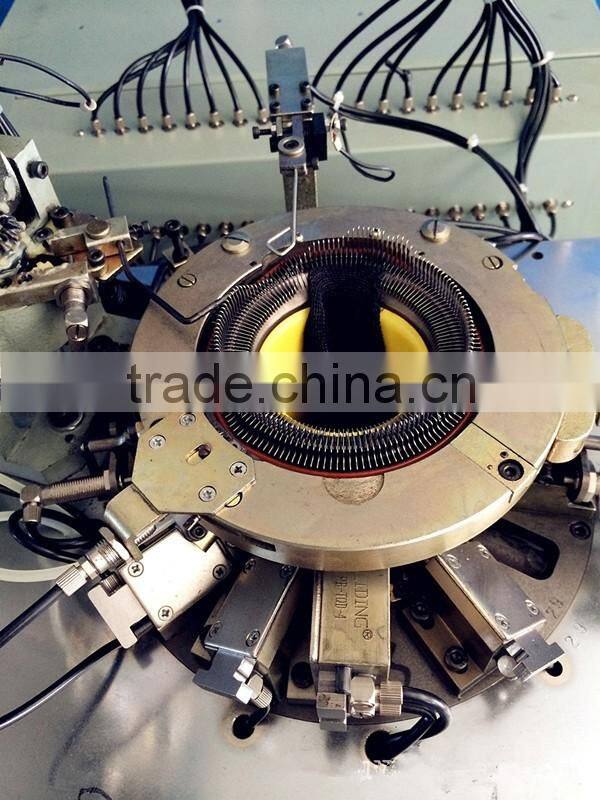

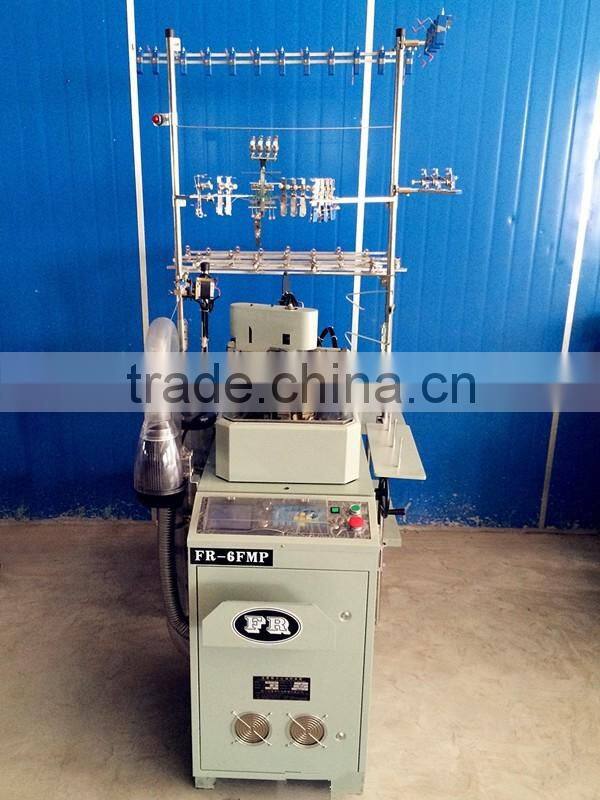

Pictures of small computer socks knitting machine
Welcome to contact me freely!
