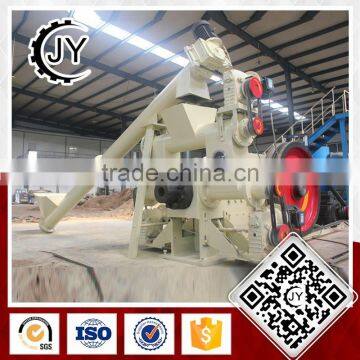

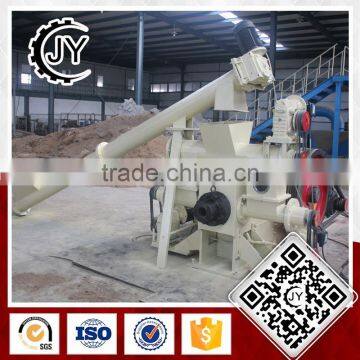

Biomass Briquetting Plant Small Charcoal Press Briquette Machine
Name |
Punching type saw dust briquette machine |
Brand |
XW |
Model |
XW-A |
Die quantity |
1 |
Main power |
45 Kw |
Impact pressure |
300T |
Impact frequency |
272 times/min |
Capacity |
1-1.5T/H |
Production density |
1-1.3g/cm3 |
Production diameter |
6-80mm |
Production moisture |
≤10% |
Powder percentage |
≤2% |
Die life |
400T |
Equipment dimension |
4000mm*2000mm*2300mm |
Equipment weight |
6000Kg |
|
Feature

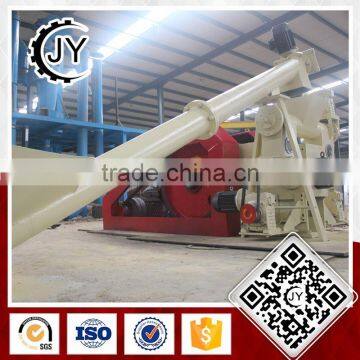

Two level feeding screw conveyor, No.1 Two way feeding conveyor, even feeding the material No.2 inspection window let the user check the feeding conditions No.3 Level two feeding conveyor, feeding the material and pre-compaction |
|
|
All the feeding conveyor connect the motor with gear box |
|

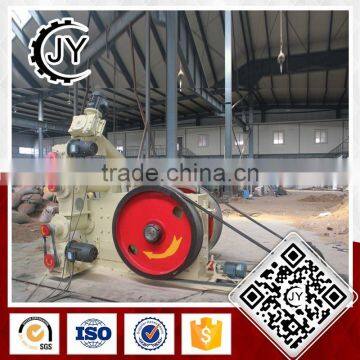

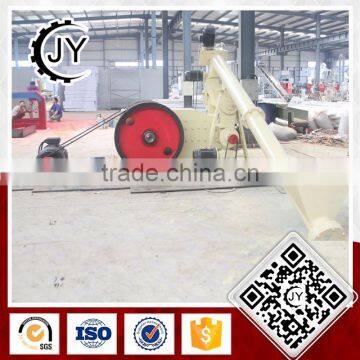

Two fly wheels, 850 Kg for each, turning speed is 272R/Min, this two wheels connect with the position, to produce a 300T punching force.
45Kw main motor drive the production system. |
|
|
45Kw main motor drive the production system. |
|
Raw Material 1.Plant straw, Foot shell, peanut straw(shell),rice husk 2. Wood waste, sawdust ,branch,tree bark, forest residues 3. Cotton shell(straw), scobs, coconut shell Production Conditions 1. Size of raw materials: powder or no longer than 10mm 2. Moisture content of raw materials: 8%-15% 3. Raw materials can be the mixture of 2 or more than 2 kind’s different materials, they must be evenly mixed. 4. The production processing don't need any adhesive or chemicals. |
|
1.The whole machine is very stable, average capacity before first time fault is about 7000T.
2.Use special alloy steel making the die, small and light for changing, and the working life is about 300-400T.
3.Use the converter technique, the feeding speed is adjustable, to reduce the energy use to maximize.
4.The shaft sleeve is designed as high-precision bearing bush, to increase the smoothness of turning and impact resistance of the main shaft, to solve the bearing easy broken problem for the pellet machine.
5.The machine has the force oiling system for the piston and the shaft, to increase the working life.
6.Wide material fitting, can use more material for produce.
7.Mechanical piston punching system works with three levels pre-press.
8.Multifunction machine can produce 6-80mm production by simply changing the die.
9.The energy consumption is very low, can continuous work, and low maintenance rate.
10.The requirement for the working is low to operate the equipment, just need one or two days training.
Click here to learn more about other products.
If you want to know more about accessory equipment, please feel free to contact us.
More product in Homepage >>> http://biomass-machinery.en.china.cn/
Saw dust air steam drying process:
The screw conveyor will transport Saw dust (initial moisture 30-40%) into roller screener, after screening the optimal size saw dust material will be transport to saw dust dryer via conveyor.
The Hot wind stove produce the hot air flue gas (150-200°C),those hot air will mix together with the saw dust material ,the moisture will be evaporation in the dying cyclone pipe .After drying saw dust moisture at 10% will be out at the bottom of the cyclone, the off gas will be out through the chimney.
Saw dust briquette production process:
After dying saw dust from the cyclone, those optimal moisture saw dust will be transported into the material hopper, then the screw conveyor will take those material evenly to 5 sets briquette machine, after getting the briquette, the belt conveyor will take the final products briquette out.
The flue gas produce during the briquette production process through the flue gas pipe out .then guarantee working environment its good.
♦ After-sale Service
1. We devote to all-round service of all products from production to maintenance.
2. Our professional service includes: free training, guidance, installation, and debugging.
3. After selling, we provide the warranty of one year.
4. If you have any problems, we will try our best to help you at the first time to solve it.
