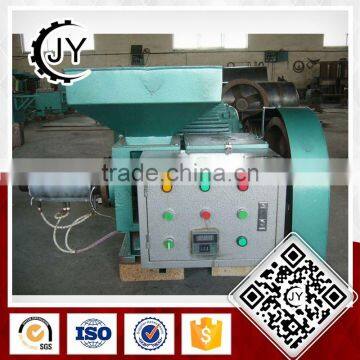

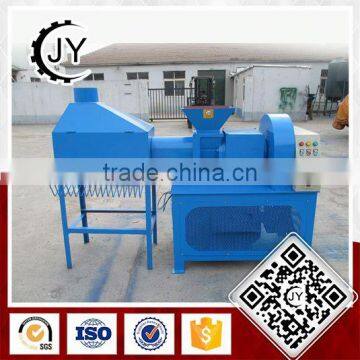

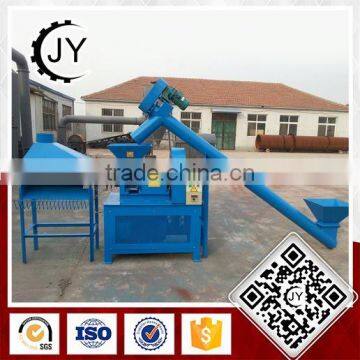

Bark Screw Press Charcoal Dust Wood Briquette Machine
|
Model |
Xw-z-3 |
Extrusion speed(kg/h) |
180-220 |
|
Active power |
18.5kw |
|
Heating power |
2.5kw*2pcs |
|
Weight |
560kg |
|
Dimensions |
1300*1000*1200 |
|
Robs diameter(mm) |
48-55 |
|
Price( reference) |
3200 |
The machine is the third generation equipment, by our actual use in our charcoal factory, we get the actual result, to help us keep improving, so we have many absolute advantages on the equipment, such as
Wear-resistant Alloy Screw Propeller
The screw propeller is the most important part of the briquette machine, its wear rate directly affects the quality and capacity of the briquette. And by ourselves using and test, we get the best material mixture ratio to make the alloy screw, make the service life can reach 50-80 hours as a service period, and it can be repaired after every service period until an accident damage it.
Wear-resistant Alloy Dies
By ourselves using and test, we get the best material mixture ratio to make the alloy dies, make the service life of the dies can reach about 1000-1300 hours, much longer than the other similar products.
The Heating Coil And The Temperature Controller
By ourselves using and test, we found the best heating coil and temperature controller, this two part work together, make the equipment get best temperature for the briquette making, the temperature is very important during the briquette making, temperature too high, the briquette will be burned, too low, the briquette can’t be molding.
Wind Wheel
Click here to learn more about other products.
If you want to know more about accessory equipment, please feel free to contact us.
More product in Homepage >>> http://biomass-machinery.en.china.cn/
Saw dust air steam drying process:
The screw conveyor will transport Saw dust (initial moisture 30-40%) into roller screener, after screening the optimal size saw dust material will be transport to saw dust dryer via conveyor.
The Hot wind stove produce the hot air flue gas (150-200°C),those hot air will mix together with the saw dust material ,the moisture will be evaporation in the dying cyclone pipe .After drying saw dust moisture at 10% will be out at the bottom of the cyclone, the off gas will be out through the chimney.

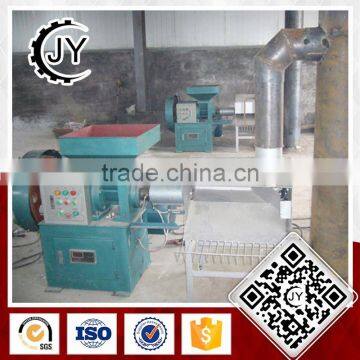

Saw dust briquette production process:
After dying saw dust from the cyclone, those optimal moisture saw dust will be transported into the material hopper, then the screw conveyor will take those material evenly to 5 sets briquette machine, after getting the briquette, the belt conveyor will take the final products briquette out.
The flue gas produce during the briquette production process through the flue gas pipe out .then guarantee working environment its good.
♦ After-sale Service
1. Guarantee period is one year , since the date of purchasing.
2. 24- hour technical supports
3. Design product according to the customers requirement.
4. We provide available price.
