2014 Lantian professional sugarcane bagasse charcoal briquette machine

Specifications

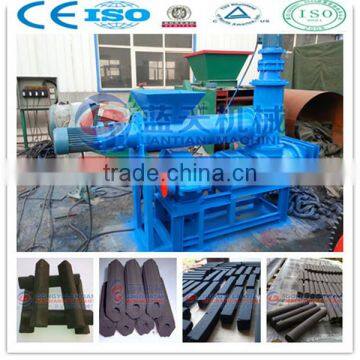

sugarcane bagasse charcoal briquette machine
1.CE BV ISO certificate
2.molds can be customized
3.easy operation
fession



2014 Lantian professional sugarcane bagasse charcoal briquette machine



1.Introduction of sugarcane bagasse charcoal briquette machine
sugarcane bagasse charcoal briquette machine is the briquette machinery,which using the principle of screw

extrusion to compress the sugarcane bagasse charcoal powder into a predetermined shape with a certain

intensity . After the sugarcane bagasse charcoal powder poured into machine chamber,it bears tremendous

pressure.With the help of all kinds of shaped molds,it will be shaped into certain shapes.Now,our factory has

developed and researched double-headed and four-head sugarcane bagasse charcoal extruder.It not only

improve production capacity largely,but also give the buyers more choices.This kind machine not only

can accept sugarcane bagasse charcoal powder,but also coal powder ,coconut shell powder and so on.



2.Working principle of sugarcane bagasse charcoal briquette machine

Rotating impeller from the charging  port clip sugarcane bagesse charcoal and  put sugarcane bagasse

charcoal forward, charcoal is gradually compressed into tightly  closed particles, while  generating relatively

large agitation and mixing. At this time between the sugarcane bagasse charcoal particles and between the

particles and the blades have a strong simplified friction and shear,while under the action of heat  generation,

the sugarcane bagasse charcoal  temperature rise, water  and binder  more uniform, sugarcane bagasse

charcoal  plasticity also greatly increased, then  after the  constraining  effect of  the cone  mold, compressed

between the sugarcane bagasse charcoal particles more closely, and then pressed into a flat mold parts,and

molded out from sugarcane bagasse charcoal briquette machine

3.Parameters of sugarcane bagasse charcoal briquette machine

4.Characteristics of sugarcane bagasse charcoal briquette machine

(1)sugarcane bagasse charcoal briquette machine use hardened reducer, small size, high load carrying capacity.
(2)Thick internal impeller blade design,impeller and liner using wear-resistant cylinder body made of cast materials,life expectancy increased 4-5 times than ordinary materials.
(3)sugarcane bagasse charcoal briquette machine head can be replaced by a wear-resistant alloy steel,

also easy to replace.
(4)Head and cylinder use splicing forms so it can be opened when the overhaul,replacement of internal impeller and cylinder liner is very convenient.

5.The finished products
Shapes:The shapes can be various, such as finger shape,cubic shape, bar, hexagon,etc.
Features:High density,high hardness,stable shape,good performance,long burning time,convenient to

store and transport



6. The transport of sugarcane bagasse charcoal briquette machine
In the processing of transport,sugarcane bagasse charcoal briquette machine is packaged as follow ways
(1)Nude packaging or free fumigation plywood case for single machine.
(2)Export standard container 20GP,40GP,40HQ,etc. for production line.
(3)Other packaging according to your special requirement.



Production line



7. We have professional service for you

Pre-sales service: We can assist you analyze your particular requirements and offer you a single machine,

a multi-stage production, or a complete production line.
After-sales service: We can offer you related technical support and guide you to install the products,or send

our engineer to your factory for the installation. Also we provide one year warranty for all of our products.

Payment and Delivery terms

(1).Payment:TT,LC,Western union or other payments

(2).Packing: Naked or can be customized

(3).Allocate and allot according to supplier’s regulation at random.

(4).Liability for breach of contract: Resolve through consultation.

(5).Other unaccomplished matters, are resolved through consultation separately by both sides

Skill standard, Quality guarantee
(1).The technical standard consults the standard of supplier’s enterprise.
(2).Equipment must be100% brand new when leaving factory.Malfunctions which are caused by manufacturer’s default and quality will be responsible by manufacturer.Other malfunctions which

are caused by operation mistake,man-made problem,etc will be responsible by client herself.

FAQ
(1)What is your company business type? Trading company or factory?
We are a 30 years factory, all the machines are manufactured by ourselves, factory direct sales,so you can get the factory outlet price,all the products quality and after-sales service can be guarantee.
(2)Could you offer complete production line?
Yes, we will allocate suitable production line, according to your special requirement,such as crusher,conveyor,
mixer, dryer, briquette machine, etc.
(3)Where is your factory located? How I get to?

We are located in Gongyi city, Henan province, China, you can come here by air or train. The nearest airport

is Zhengzhou Xinzheng International Airport,and the Airport Code is CGO.We will pick you up at airport or high

speed train station.Welcome to visit our factory.

8.Our customers from different countries



9.In order to offer you more accurate quotation as soon as possible, please inform me follow information
What is your raw material?
What is your capacity demand per hour?
What is your finished products shape and size?
What is a single machine or a complete production line do you need?

Certifications and factory view



Please contact me freely! Any questions will be highly appreciated and valued!
