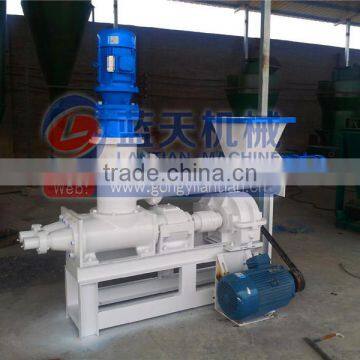

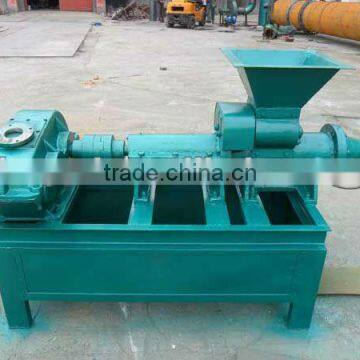

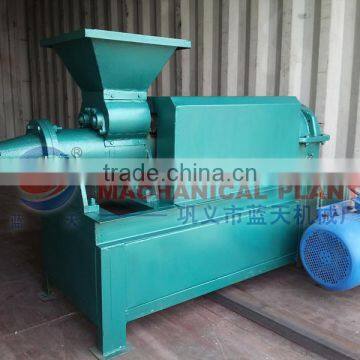

Good performance best price charcoal bars briquette machine charcoal dust stick extruder machine
Introduction of charcoal dust stick extruder machine
This charcoal dust stick extruder machine is used for pressing coal powder, iron, coke, aluminum powder, iron filings, iron oxide skin, toner, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste materials powder and waste residue. It is also widely used in refractories, electric powder plant, metallurgy, resource, chemical and other industries.This machine is energysaving and easy to transport.Also,it increases the use of the waste materials and economical benefits.
Features of charcoal dust stick extruder machine
1. The press rollers use 65mn rigid material with good abrasion resistance, lengthening effectively service life of the press rollers, and the pressure can be as big as 15 tons.
2. The coal and charcoal extruder machine is the latest style, it can work automatically and design with vertical structure, upper and nether beams of cast steel, so it is very easy to operate.
3. The final products with high strength and high burning rate, are smokeless, testless, non- toxic and no harful to human beings.
.
Application of charcoal dust stick extruder machine
1 coal powder
2 charcoal powder of all kinds of biomass,such as Waste material of the sawdust, wood shavings,
wood, branches, rice husk, peanut shell, bagasse, wine residue, cotton stalk, corn stalk, wheat straw, rice straw.
Working principle of charcoal dust stick extruder machine
1.The motor transmits power to transmission through the V-belt.
2.At the same time, the transmission output shaft transmits power to propeller through the floating coupling.
3.The thruster of propeller push the materials forward through forming to produce the high-pressure sticks.
Technical parameter of charcoal dust stick extruder machine
Model |
MB140 |
MB180 |
MB300 |
Capacity ---Charcoal |
400-600kg/h |
600-800kg/h |
2000-3500kg/h |
Capacity ---Coal |
1-2t/h |
2-3t/h |
4-6t/h |
Diameter (mm) |
20-40 |
20-60 |
20-80 |
Motor power |
11 kw |
18.5kw |
45kw |
Weight |
0.6 t |
0.8 t |
1.2 t |
Dimension |
1.87*0.9*1.15 m |
2.35*0.9*1.37 m |
2.7*1.25*2 m |
Production line of charcoal dust stick extruder machine
(1).Binder mixer: It is using for dissolving and thicking binder.
(2).Crusher and mixer: It is a machine with the function of crushing and mixing together, crushing the raw material below 5mm, and mixing them uniformly. The moisture need controlled between 25%-30%.
(3).Coal briquette machine: It presses coal powder, charcoal powder, or other powders into different shapes and size.
(4).Dryer. We have vertical dryer, box dryer and mesh belt dryer. I will suggest suitable dryer according to your raw machine, shape and size.
Shipping of charcoal dust stick extruder machine
(1)Wrapped with plastic,then in free fumigation wooden case with steel frame.
(2)Wrapped with plastic,loaded in standard container 20GP,40GP,40HP
(3)Nude packing, then in standard containder.
Our service
(1)Pre-sales service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
(2)After-sales service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
Company introduction
We are a 30 years factory located in "mechanical city" Gongyi city, Henan province, China. 30 dedicated development, we have become to a factory including design, manufacture, sale and after-sales service. Good product quality and finest after-sales service are our intention and goal.
Our main products are different kinds briquette machines, coal briquette machine, charcoal briquette machine, shisha charcoal briquette machine, biomass briquette machine, and other auxiliary machine crusher, dryer, feeder, conveyor machine, mixer, etc.
If you have any other questions about the machine, please send the inquiry. Contact with me at any time!
