Tyre shredder machine
Production description
The double shaft machine reduce the size of material through cutting, tearing, and squeezing. This kind of shredding machine widely used in waste plastic, waste rubber, wood, crop, straw and other large volume of waste. Its mature technology and advanced design provides quality assurance for waste recycling, but also makes a great contribution to environmental protection.
In addition, double shredding machine has been certified by CE and adopted Siemens Motors. The microcomputer automatic control system be also used in this machine, which includes start, close, and overload inversion. The low speed, high torque,and low noise are the advantages of this shredding machine.

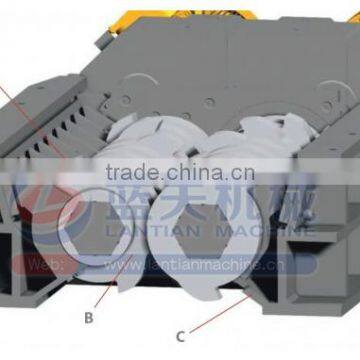

The structure of double shredding machine
1. Crusher body
The main body of equipment adopts high quality steel plate welding, that eliminates stress treatment/whole machine processing and ensures the stability of the equipment in the long time heavy load.
2. Bearing and seal
The bearing block using detachable patent registration, it not only quickly remove the knife, knife, bearings and other components, but also conducive to maintain and replace knife tool. Its unique sealing structure barrier to the crushing material and grease contact effectively. Moreover, handling liquid materials can also protect the bearings and gears.

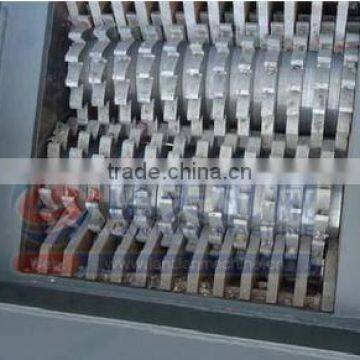

3. Moving blade and fixed blade
The material of moving knife adopts special alloy tool steel forging blank, with precision machining, multiple heat treatment and low temperature refrigeration heat treatment technology. In addition, the integrity of the overall toughness hardness conduce to repair and reuse, this way ensures the cutting performance and working life. The fixed knife is installed with the patent hook, which optimizes the cutter replacement function and improve efficiency of the tool maintenance and replacement.

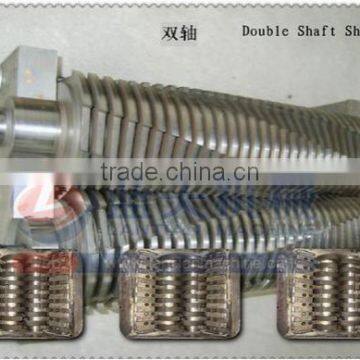

4.Cutter shaft
Processing and refining of cutter shaft using the special steel with high strength and heavy duty, its reasonable cooperation provides power to cut.
Product application
1.All kinds of hollow containers: plastic beverage cans, plastic barrels, drums, packing box, packing barrel
2. Waste home appliances: TV, washing machine, refrigerator shell
3.Pipe: large pipe, pipe, PE pipe
4. Waste template: wooden pallets, plastic pallets, pallet truck
5. Scrap tires: car tires, truck tires
6.Scrap metal: aluminum alloy shell, automobile, scrap aluminum casting, steel, lead and the engine shell thickness below 5mm
7.Kitchen waste, garbage, animal carcasses, RDF derivatives, medical waste, biological straw, garden waste
8.Rubber material, paper mill head rope
The cracteristic of double shredding machine
Thick knife, high crushing efficiency
The knife and blade are made of alloy steel casting, strong, long service life
Iron frame plate thickness, high torque resistance, extremely strong
Easy to adjust, low maintenance cost, economic and durable
Technology parameters
Motor |
1900 |
1500 |
1000 |
500 |
Motor power(kw) |
6-55kw, 8-55kw |
6-45kw, 8-45kw |
6-37kw, 8-37kw |
4-7.5kw, 4-7.5kw |
The spindle speed(r/min) |
40,30 |
40,30 |
40,30 |
35,35 |
Output(t) |
8-10 |
6-8 |
3-6 |
1-3 |
Weight(kg) |
9600 |
7500 |
5200 |
3500 |
Conveyer motor power (kw) |
4-3kw |
4-3kw |
|
|
Number of the knife dish |
50 |
40 |
40 |
16 |
Crushing particle size (cm) |
3-10 |
3-10 |
3-10 |
3-10 |
| Bin size (m) | 1.6 x 2.5 |
1.2 x 1.8 |
0.8 x1 |
0.7 x0.75 |
Length, width, height(m) |
6.5x1.6x2.4 |
5.2x1.5x2.4 |
2.9x1.5x1.7 |
2.1x0.85x1.6 |
Company profile
Gongyi Lantian Machanical Plant was located in Zhengzhou. Henan province. It has over 20 years history. This company mainly produce all kinds of briquette machines, charcoal equipment, drying equipment and mine equipment, such as ball press machine, coal/charcoal extrude machine, shisha briquette machine, biomass briquette machine, brick briquette machine, pellet machine, honeycomb briquette machine, etc., and all indispensable auxiliary machines.
In 2005, Lantian company has been authorized China import and export enterprise, ISO international quality certification company, the European Union CE certification enterprises. At present, it has been obtained eight utility model patents, two external appearance patents, and one invention patent. During last 10 years, Lantian machinery has been exporting all over the world, such as Malaysia, India, South Africa,Indonesia, Sadi Arabia, Canada, Pakistan, Kuwait,Turkey, Egypt and others.
Service Commitment
Pre-sales service
Providing the project design and process flow design.
Draw up the machine equipment purchase plan according to your actual demands.
According to your specific needs to design and manufacture products.
Training technical person for you.
On-sales service
Completing the acceptance of the equipment and assist in the development of construction programs and detailed procedures
After-sales service
Technicians guide the installation of equipment, commissioning and training of operators on the scene.
Tips:
We are Liantian Mechanical Plant with over 30 years experience, and we can provide the whole production line for you.
Our factory was located in Heluo Road, Gongyi City, Henan Province.
The nearest Airport is Xinzheng International Airport, and the airport code is CGO. We can pick you up.
Welcome to Gongyi Lantian machinery manufacture! We are sincerely looking forward to cooperation with you!
