Full-Automatic wood Pellet packing machine for sale
1. What are the applications of wood pellet packing machine?
This DCS pellet packing machine is self-developed by our company, with the obvious advantage of high-tech electromechanical integration products, uses the meter measurement and PLC advanced control technology, one labor can control complete flour packing machine.
2. What are the main structures of Wood Pellet Packing Machine?
Main data:
Model |
DCS-50A |
Extent |
5-20kg(wood pellet) |
Error |
0.1%F.S |
Speed |
≥300 bags /h |
Packing Scale Power |
AC220V 50Hz |
Division Value |
20g |
Conveyor length |
2700mm |
Conveyor width |
420mm |
Belt width |
340mm |
Sewing type |
Heat sealer |
Conveyor power |
3 phase 380V 50Hz |
Sealing length |
600mm |
Sealing width |
8mm |
Film thickness |
0.01-0.12mm |
3. How does automatic biomass pellet packing machine work?
The basic principle of Wood Pellet Packing Machine 15-50kg
When packing machine into automatic operation state, weighing control system to open the feeding door began feeding, the feeding device is fast, slow two stage feeding mode; when the weight of material to achieve fast feeding the set value quickly, stop feeding, keep slow feeding; when the weight of material to the final set value, close the feeding door, complete the dynamic weighing process; at this point the system detection bag clamping device is in a predetermined state, when the packaging bag is clamped, the system sends out control signals to open weighing hopper discharge door, the material into the packing bag, the material released after shut down automatically weighing hopper discharge door; unload materials after loosening the clamping bag device, automatic packing bag falling; fall sewing bag packing bag and transported to the next station after. So move in circles to run automatically.

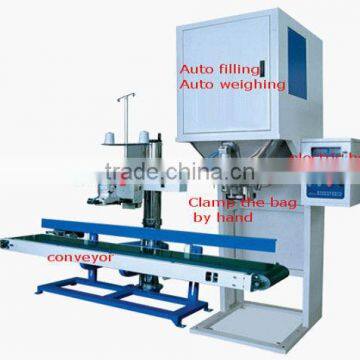

Working Flow: Clamp the bag ---Auto filling---Auto weighing—-Conveyor--Sealing
4.Bag Type:
Kraft bag , Woven bag, PP bag
