Specifications
1.screw press tyep low rotate speed2.304.stainless steel
3.Convenient installation and maintenance
4.economic and recycling
small sludge dewatering machine press filter
Application:
The solid and liquid separation of sludge, pig/cattle/chicken and other poultry’s manure, brewer grain and brewer yeast
Features:
1. Reduce the manure’s storage volume, remove the bad smell of manure, solid dehydrated manure is easy to be transported and do not pollute the environment;
2. The separated solid can be used to make livestock’s mattress and make organic fertilizer.
3. The liquid dung can be used for marsh gas or fertilizer of the plant and dewatering sludge.

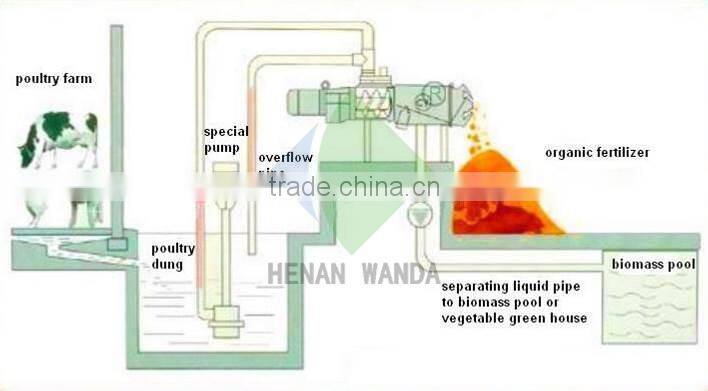

Working principle of automatic sludge dewatering machine
Installation and construction drawings of sludge dewatering machine press filter
Sludge pump in the manure pits upgrade the original fecal residue to solid-liquid separator, the extrusion screw which is installed
in the mesh will push the original fecal residue to move forward by 46 rev/min speed.
Dry product will come out from discharge outlet by pressing of cylinder. The liquid which is filtered through the sieve mesh
will flow into the conditioning tanks.
Technical parameter:
Model No. |
WDCL-I |
WDCL-II |
WDCL-III |
Power(KW) |
4 |
5.5 |
7.5 |
Capacity(M3/H) |
5-9 |
13-16 |
15-25 |
Outsize |
1900*750*1680 |
1950*780*1680 |
2100*820*1680 |
Weight |
300KG |
450KG |
650KG |
Debug machine test machine on site:
Economic value of dewatering sludge press filter
Along with rapid economic development, many countries pay more attention on Resource Efficiency and Recycling.
This high efficient sludge dewatering machine press filter is designed and manufactured by Henan Wanda Chemical Equipment Company in the past years.
This screw press China automatic sludge dewatering machine is an ideal poultry and sewage treatment equipment in scale livestock and poultry farm. Also can be used for dewatering brewery waste.
Final dry brewer yeast can be used for animal feed, or as fertilizer in the farm directly.
