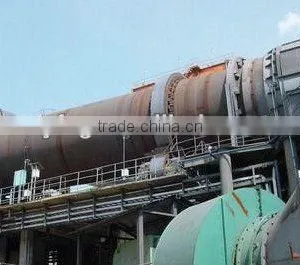

Lime Kiln/rotary Kiln
US$ 8,000 - 4,500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
90%
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 New Lime Kiln MachineryUS$ 50,000 - 8,000,000MOQ: 1 Set -
Used Cyclone Dust Collector /used Cyclone Dust CollectorUS$ 50,000 - 650,000MOQ: 1 Set
-
Cyclone Dust Collector for Wood /dust Collector PriceUS$ 40,000 - 560,000MOQ: 1 Set
-
2014 New Cyclone Dust Collectors MachineryUS$ 2,000 - 700,000MOQ: 1 Set
-
Industrial Cyclone Dust Collector ,dust CollectorUS$ 60,000 - 650,000MOQ: 1 Set
Condition
New
Production Capacity
90%
Place of Origin
Henan, China
Brand Name
YUFENG
Model Number
JZQ750-1/UT2-110/PM650/ZS145-11/ZL130-14/ZSY500-28/JZS-81/JZTY71-4/YCT
Voltage
220v/380v
Power(W)
50/163/157/28/22/15/30/55/90/190/315
Weight
53/75/34/80/130/167/237/263/280
Certification
ISO9001:2008
Warranty
2 years(except the easy-damaged parts)
After-sales Service Provided
Engineers available to service machinery overseas

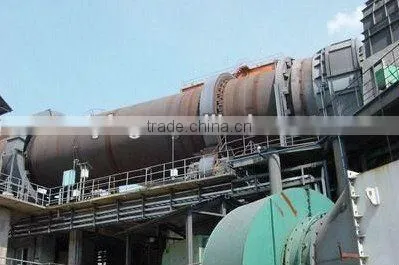

Rotary kiln refers to rotary calciner, belongs to the building materials device class. Rotary kiln according to different materials handled can be divided into cement kiln, metallurgy chemical kiln and lime kiln.
Cement kiln is mainly used for calcinating cement clinker, including dry process production cement kiln and wet process production cement kiln. Metallurgy chemical kiln is mainly used for metallurgy industry steel lean iron ore magnetized roasting, chromium and nickel ore oxidizing roasting, refractory plant roasting high aluminium vanadium and soil ore and aluminum plant roasting clinker, aluminum hydroxide, chemical chromium ore and chromium ore powder roasting and so on. Lime kiln (is activity lime kiln) is used for roasting activity lime in steel factory and ferroalloy factory and light burning dolomite.
Technical parameters of rotary k
| Type | Technical data | Reduction drive | Main motor power | Block wheel form | Support quantity | Weight | |||||
| Speed r/min | Slope % |
Power t/h |
Type | Ratio | Type | Powder kw |
Speed r/min |
||||
| Φ1.9/1.6x36 | 0.53-1.59 | 4 | 2.5-3 | JZQ750-1 | 48.58 | JZT-72-4 | 30 | 1200/400 | Mechanical | 3 | 53 |
| Φ2.1/1.8x36 | 0.5-1.51 | 4 | 4 | UT2-110 | 163.36 | JZS-81 | 30/10 | 1410/470 | 3 | 75 | |
| Φ1.2x25 | 0.5-1.6 | 3 | PM650 | 40.17 | JZTY71-4 | 22 | 1200/120 | 3 | 34 | ||
| Φ1.6x32 | 0.158-0.258 | 3 | PM750 | 48.57 | JZJY61-4 | 15 | 1200/120 | 3 | 46.82 | ||
| Φ1.8x45 | 0.66-1.98 | 4 | 3.5 | UT2-110 | 163.36 | JZS-81 | 30/10 | 1410/470 | 3 | 80 | |
| Φ2.2x50 | 0.125-1.25 | 3.5 | 4 | ZS145-11 | 157 | YCT280-4A | 30 | 1320/132 | 3 | 130.71 | |
| Φ2.5x50 | 0.516-1.549 | 3.5 | 5.5 | ZS165-7 | 99.96 | YCT355-4A | 55 | 1320/440 | 3 | 167.5 | |
| Φ3x48 | 0.3309-3.309 | 3.5 | 35 | ZL130-14 | 32.11 | ZSN4-250-21B | 90 | 1000/100 | 3 | 237 | |
| Φ3.2x50 | 0.398-3.975 | 3.5 | 50 | ZL130-16 | 40.85 | ZSN4-280-11B | 190 | 1500/150 | 3 | 263 | |
| Φ3.3x52 | 0.391-3.91 | 3.5 | 50 | ZSY500-28 | 27.707 | ZSN4-315-082 | 190 | 1000/100 | 3 | 280.8 | |
| Φ4x60 | 0.396-3.96 | 3.5 | 104 | ZSY630-35.5 | 34.601 | ZSN4-355-092 | 315 | 1000/100 | Hydraulic pressure | 3 | 487.5 |
| Φ4.2x60 | 0.4165-4.165 | 3.5 | 116 | ZSY710-35.5 | 35.526 | ZSN4-355-12 | 420 | 1000/100 | 3 | 576.1 | |
| Φ4.3x62 | 0.398-3.98 | 3.5 | 125 | ZSY710-35.5 | 35.714 | ZSN4-355-12 | 420 | 1000/100 | 3 | 598.5 | |
| Φ4.8x74 | 0.35-4 | 4 | 208 | JH710C-SW305-40 | 42.226 | ZSN4-400-092 | 630 | 1500/130 | 3 | 841 | |
....
