Specifications
gypsum board equipmentHigh level automation and great productivity, much better product with lighter weight and more strength

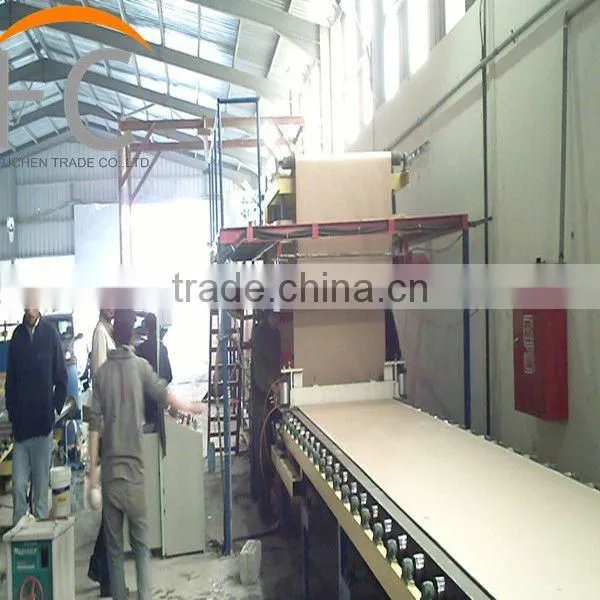

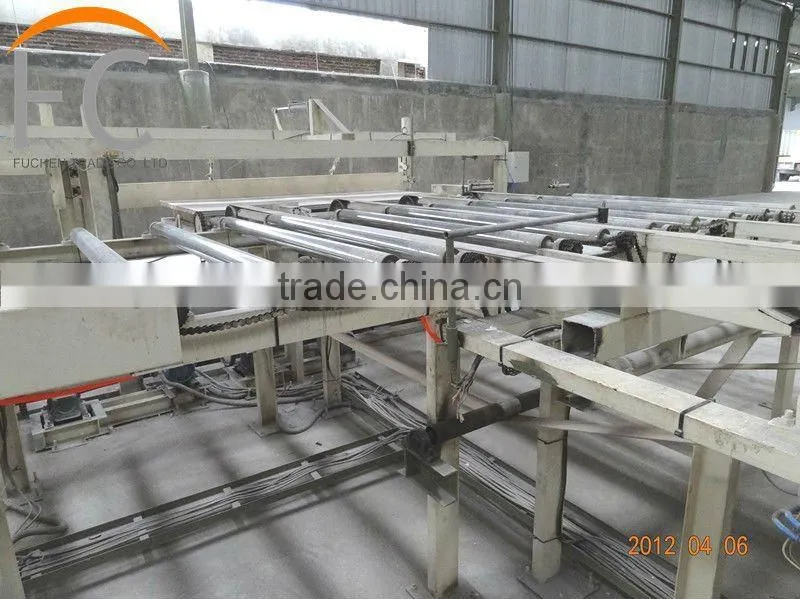

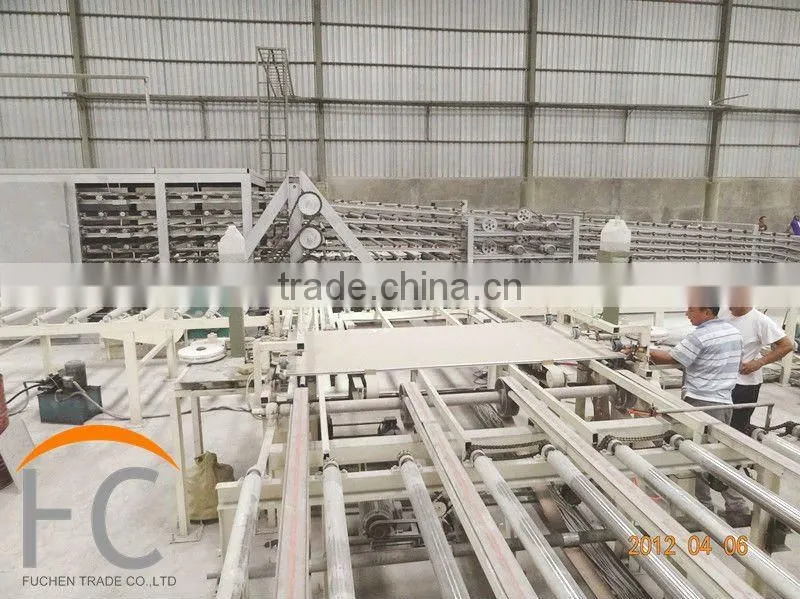

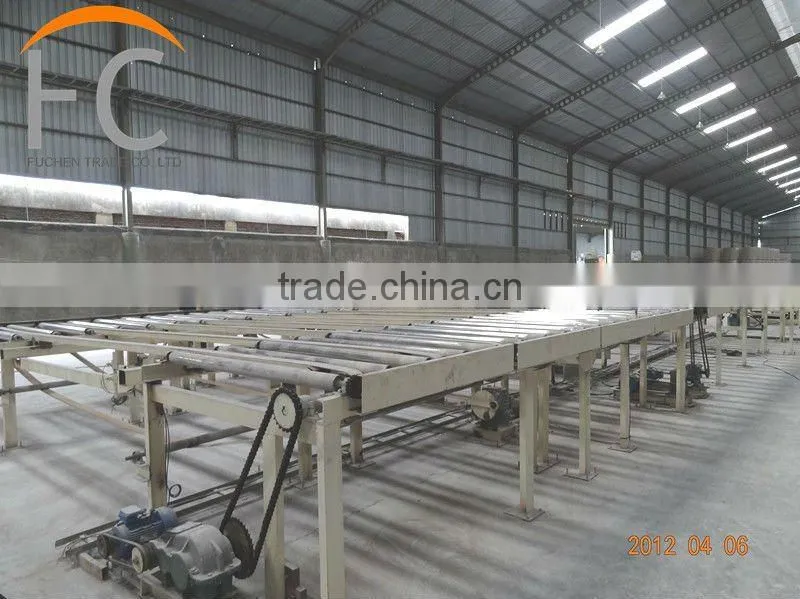

gypsum board production line
Auto stacking system
1. Capacity
2 million m2/y~50 million m2/y (thickness of 9.5mm)

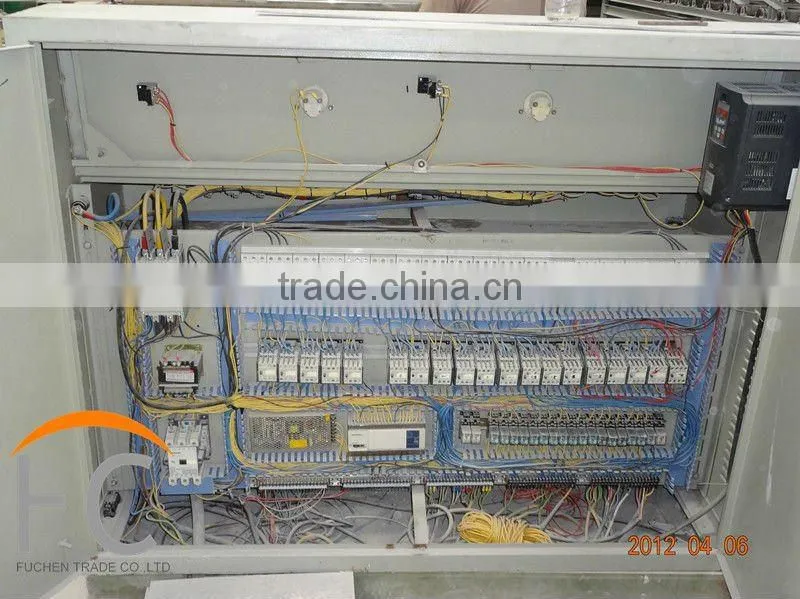

2. Automation Full automatic
3. Drying system: Using hot air for drying
4. Fuel: Coal, natural gas, heavy oil and diesel oil
5. Main materials
Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp (adding selectively according to different raw materials and kinds of products)
Quantity of raw material required for producing per m2 gypsum board (referenced data) (thickness of gypsum board 9.5mm)
Gypsum powder(CaSO4·1/2H2O) |
6.8kg/m2 |
Protective paper |
0.48kg/m2 |
Modified starch |
0.035kg/m2 |
Foaming agent |
0.008kg/m2 |
White latex |
0.005kg/m2 |
Fiberglass (used selectively ) |
0.025kg/m2 |
Electricity |
0.3kwh/m2 |
Water |
4.8kg/m2 |
Heavy oil |
Heat consumption~3800kcal/m2 |
Natural gas |
Heat consumption~3800kcal/m2 |
6. Dimension of product
thickness: 8mm-22mm
width: 1200mm or 1220mm
length: 2400mm~3600mm
We can design and manufacture products of other dimensions as clients’ special requirement.
7. Standard of product quality
in conformity with national standard GB9775-2008

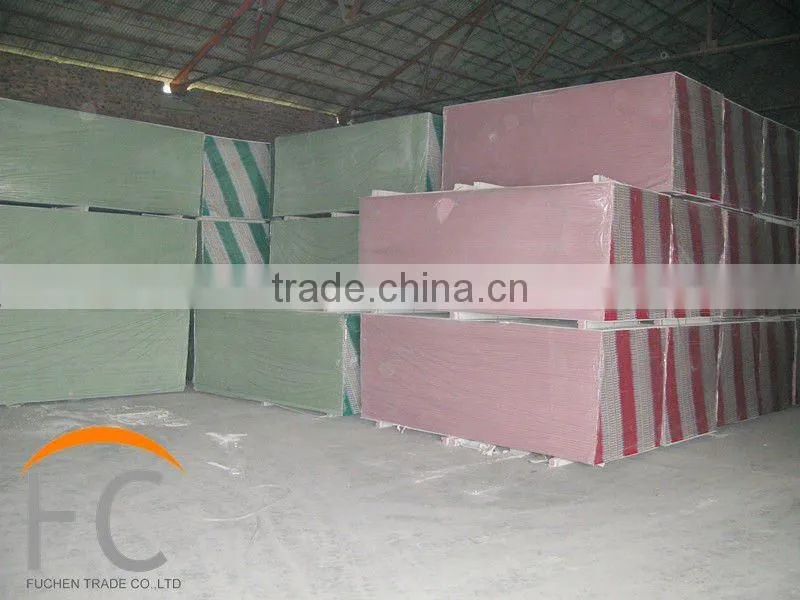

8. Category
a) Common paper surface gypsum board
b) Fireproof paper surface gypsum board (H)
c)Waterproof paper surface gypsum board (S)
If you are interested in our products,pls feel free to contact with me,i will give you our competitive price and the best service.
