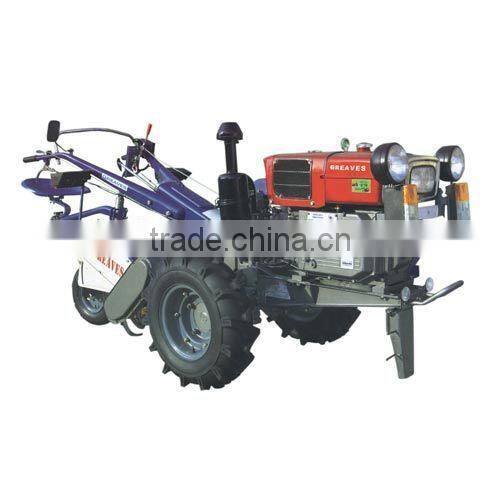

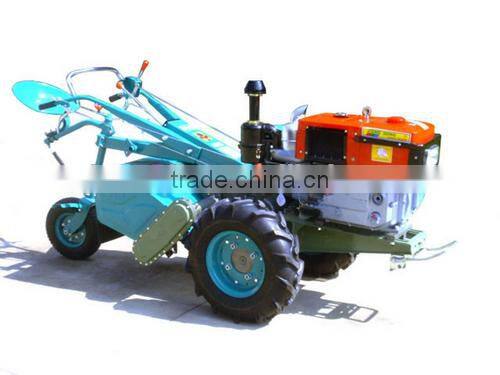

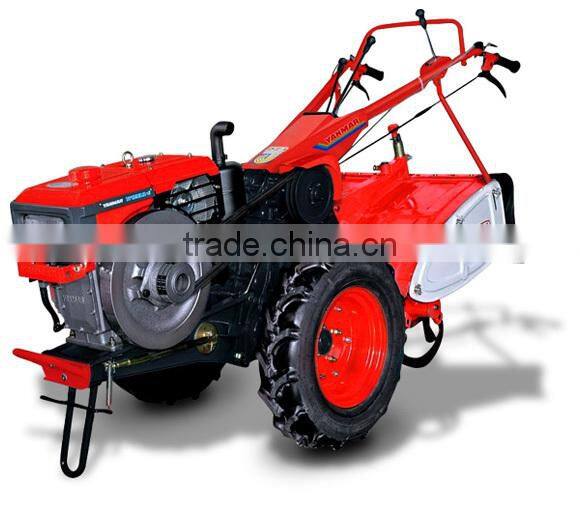

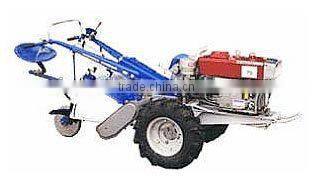

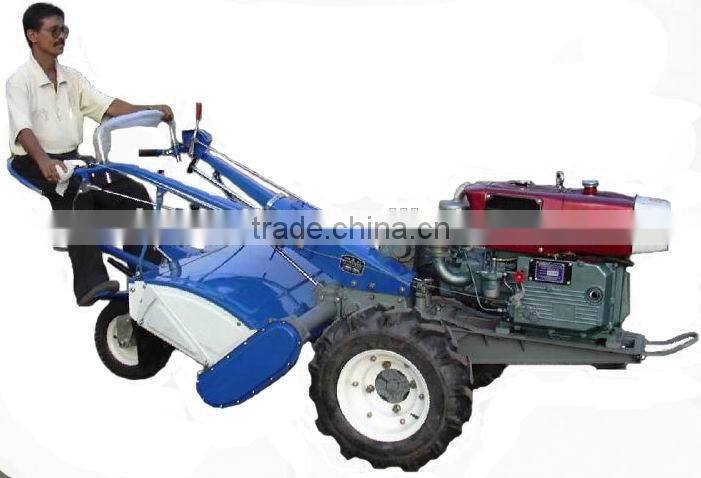

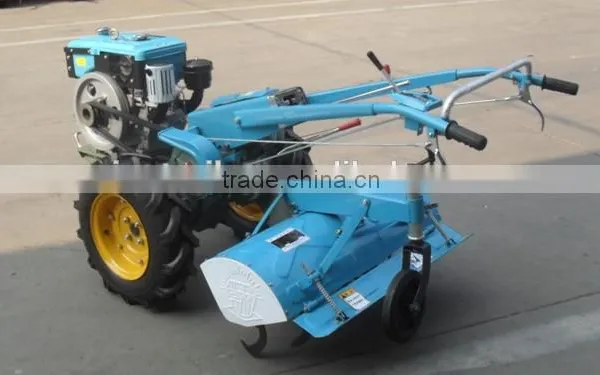

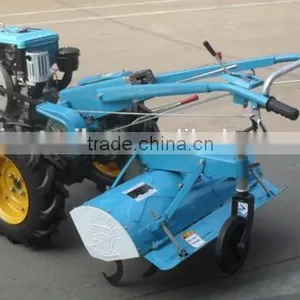

Home > Manufacturing & Processing Machinery > Agricultural Machinery > Tiller > Farming TILLER With Plough WALKING TRACTOR
US$ 500 - 3,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Garden Cultivator
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tractor Front End Loader Farm TractorUS$ 12,500 - 13,500MOQ: 1 Set -
Front End Loader With CEUS$ 1,000 - 5,500MOQ: 1 Piece
-
Front Loader And BackhoeUS$ 1,000 - 4,000MOQ: 1 Piece
-
3-Point Linkage BackhoeUS$ 1,000 - 4,000MOQ: 1 Piece
-
2WD&4WD By Wheel and New Condition Mini Tractors With Front End Loader BackhoeUS$ 1,000 - 4,000MOQ: 1 Piece
Condition
New
Type
Garden Cultivator
Power Type
Diesel
Power(W)
6.6, 6.3
Certification
iso
Warranty
one year
Use
farming, tilling/cultivating/plowing
Place of Origin
Shandong, China
Brand Name
shenzong
Model Number
SZTM-1
Weight
100KG
Dimension(L*W*H)
1700*1050*800mm
Specifications
Specificationstiller machines
a.easy start&operation;
b.energy saving&environment-friendly;
c.customized design offered.
farming Tiller Machines
Specifications
Diesel tiller machines
a.engine available,8.6hp 186FA diesel power engine
b.easy start & operation
c.energy saving&environment-friendly;
d.customized design offered;
e.any color can be made.
GS-9010D 5.0 PS AGRICULTURAL POWER TILLER |
DESCRIPTION |
* DIMENSION: L1450 × W650 × H850 MM. * ENGINE: 5.5~6.5 HP. * Powered with Honda GX200 6.5HP that more powerful. * ENGINE: ROBIN EY20B / 5.0PS / 1,800RPM. * SPEED TRANSMISSION: 2 FORWARD AND 2 REVERSE. * TILLING DEPTH: 3 ~ 28 CM. * TILLING WIDTH: 30 ~ 90 CM. * ROTAR SPEED: - FORWARD: H: 110RPM L: 54RPM - REVERSE: H: 80RPM L:46RPM * NET WEIGHT: 55.00 KGS. * Speed Transmission with 2 of Forward and 2 of Reverse. * Good application for Tilling, furrowing, Weeding, Suitable for Vegetable, Orchard. |
| Model | SZTM-1 | |
| Tiller | Tilling Width(mm) | 1050 |
| Tilling Depth(mm)
| >100 | |
| Drive-way Transmission | Full Gear | |
| Gearshift | Fast-Slow-N-R | |
| Cluth Type | Friction,with emergency stop | |
| Tire | 5.00-12 | |
| Productivity(hm2/h) | >0.04 | |
| N.G/W.G(KG) | 100/105 | |
| Dimension(mm) | 1700*1050*800 | |
| Engine | Model | DIWEI 178F Diesel Engine |
| Engine Type | single-cylinder, vertical,four-stroke,Direct injection, air-cooled | |
| Bore*Stroke(mm) | 86*70 | |
| Displacement(ml) | 406 | |
| Rated Power(kW/rpm) | 6.3/3600 | |
| Max. Power(kW/rpm) | 6.6/3600 | |
| Fuel Tank Capacity(L) | 5.5 | |
| Fuel Consumption(g/kW.h) | ≤420g/kw.h | |
| Fuel Type | 0# in summer,-10# or-20# in winter | |
| Oil Capacity(L) | 1.65 | |
| Lube type | SAE10W30 (above CC grade) | |
| Start System | Electric start with 30AH MF Battery, recoil and hand-operated | |
| Others | Included Parts | with dry land blade(8x4 blades) |
| Packing | Cast-iron Bracket +Caron Box | |
| 20” GP(Set) | 66 Units | |
| 40” HQ(Set) | 144 Units | |
| MOQ | 20 Sets | |
