Specifications
SpecificationsF12+R4, Famous engine
120-130HP big tractor
Comfortable and convenient operation
125hp big farm tractors
Farm Tractor Usage and New Condition tractor
30hp 50hp 80hp 100hp 130hp Farm tractor with implements

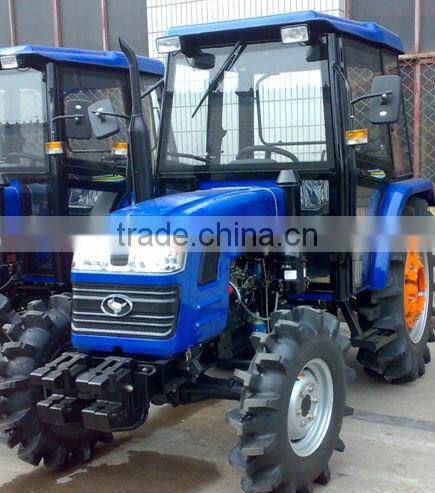

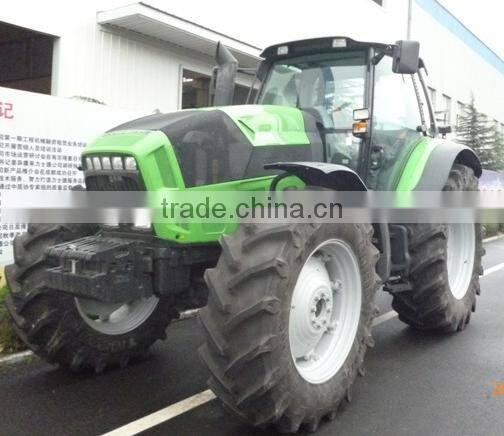

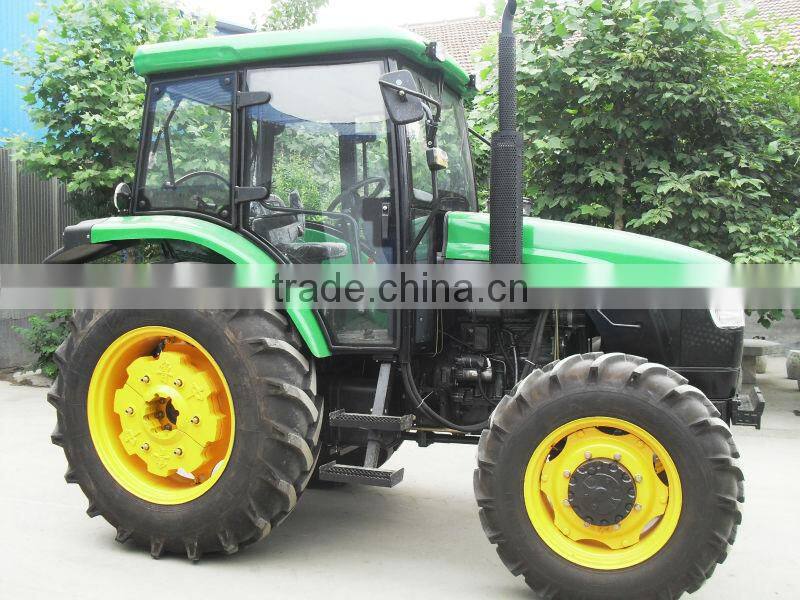

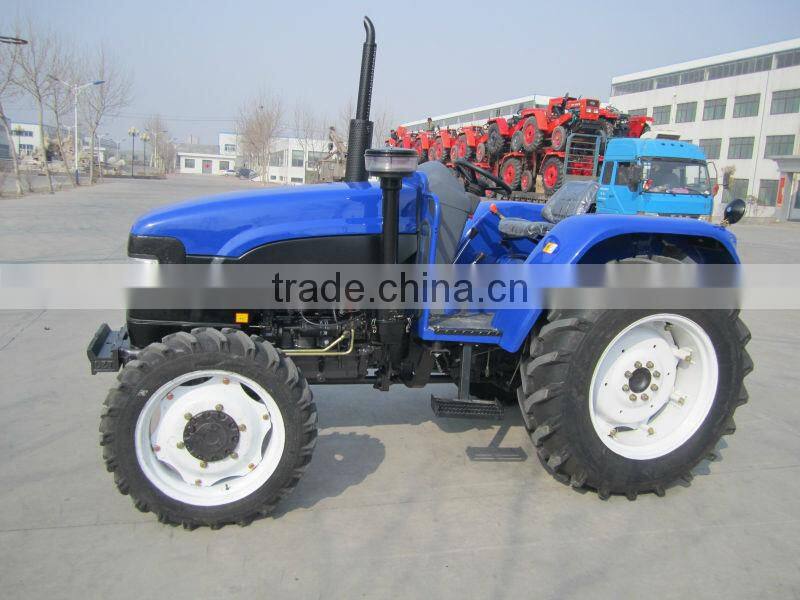

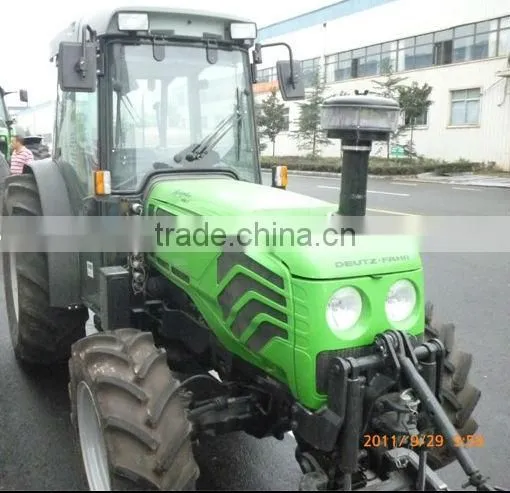

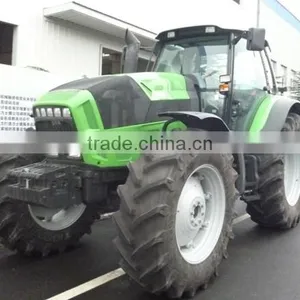

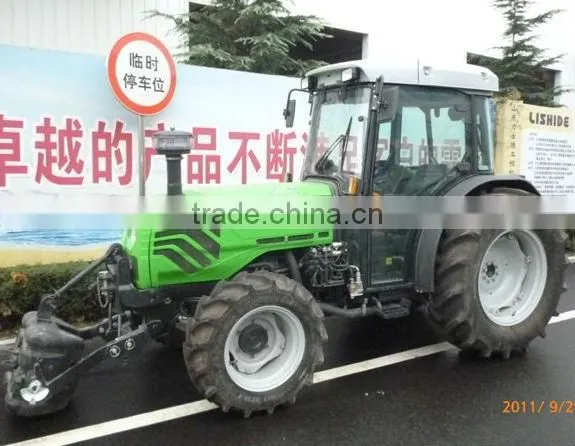

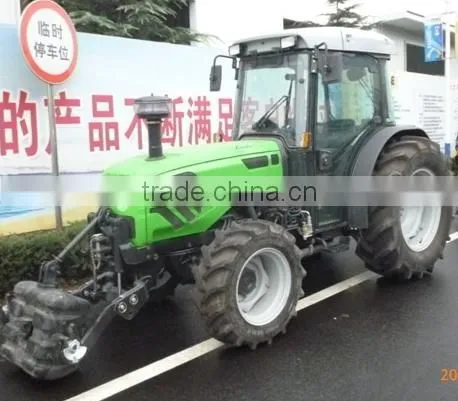

1.Picture
TY 4WD Gardening Tractor, in another name of 4WD Greenhouse King Tractor, is suitable for gardening, greenhouse, lawn and family work. It is assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular in international market. With the characteristic of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and enviroment protection, it is a right tractor for famiy and small farm for agriculture and gardening.
It assembled wit3T30diesel engine, 22.06 kw with or without EPA certificate. Many options are available according to users requirments: single stage clutch or double stage cultch, (3+1)×2 gearbox or (4+1)×2 gearbox, creeping shift (with 8 shifts gearbox), single speed PTO or double speed
PTO, dual-way hydraulic output, ROPS and sunshine shield.
Type | TY304 | |||
Type | 4×4 Wheeled Type | |||
|
| |||
Over all dimension | Length | 2988/3074 | ||
| Width | 1340/1222/1296/1560 | ||
| Height | 1100 | ||
| Tread | Front Wheel | 910/1000 /1200Fixed | |
|
|
|
| |
|
| Rear Wheel | 1000/1200Adjusted | |
|
|
|
| |
| Wheel Base | 1520/1606 | ||
|
|
| ||
| Min.Ground Clearance | 223 | ||
|
|
| ||
(kg)Dry Mass | Six Shift :1000(small chassis ) or 1260 Eight Shift:1290 | |||
Engine | Model | LD385 | ||
|
| Double cylinder ,Vertical, Water Cooled and 4-stroke | ||
| (kw)Rated Power | 18.4 | ||
|
|
| ||
| (r/min)Rated Rev. | 2400 | ||
|
|
| ||
| Fuel | Diesel Oil | ||
Tire | Front Wheel | 5.0-12 or 6.0-12 | ||
| Rear Wheel | 9.5-16 | ||
Clutch | Dry-friction,single stage or Dry-friction,Two Stage | |||
|
| |||
Steering | Mechanical Type/Mechanical Type or Hydraulic Type | |||
|
| |||
Transmission Box | (3+1)×2or(4+1)×2or(4+1)×2×2(with creeping Shift) | |||
|
| |||
Suspension Type | Post Positioned Tri-point suspension Cat or 1 | |||
|
| |||
PTO shaft | (r/min) Type and Rev | Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720 | ||
