Truck Trailer Use and Steel Material Tractor Tipper Trailer

Truck Trailer Use and Steel Material Tractor Tipper Trailer photo-1

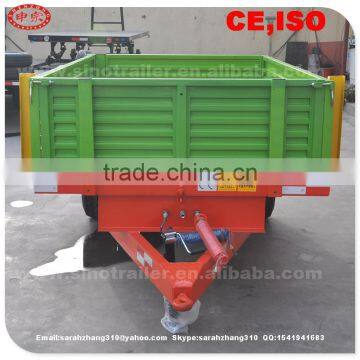

Truck Trailer Use and Steel Material Tractor Tipper Trailer photo-2

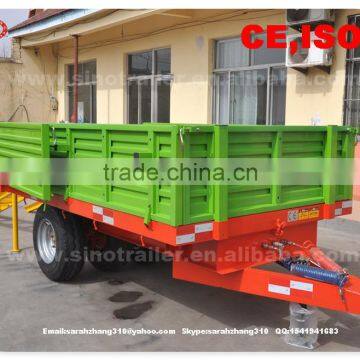

Truck Trailer Use and Steel Material Tractor Tipper Trailer photo-3
Truck Trailer Use and Steel Material Tractor Tipper Trailer photo-4

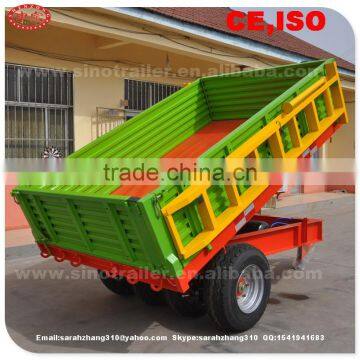

Truck Trailer Use and Steel Material Tractor Tipper Trailer photo-5
US$ 1,500 - 3,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Full Trailer
Material:
Steel
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Type Full Trailer
Material Steel
Certification CE
Size 3000*1850*600mm
OEM No. 7CX-5
Max Payload 5t
Place of Origin Shandong, China
Brand Name Shenzong
Model Number 7CX-5
Product Description

Product Application

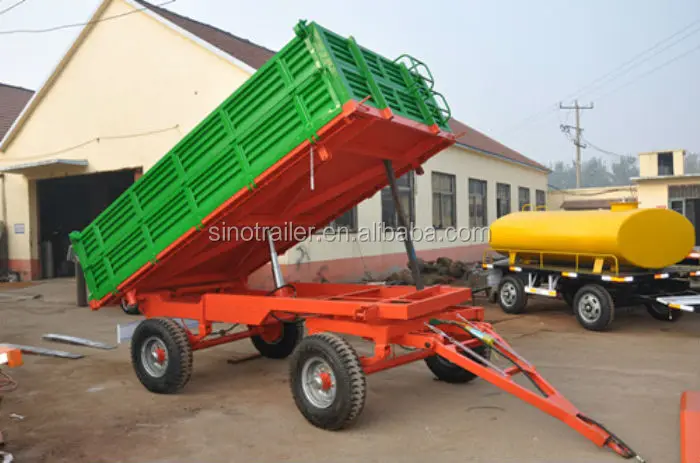

Shenzong 7C series farm four wheel trailer applicable for plains, mountains, swamps, hills, farmlands, and highway transportation of different region environment, different kinds of the trailer used together with different types of tractor that make full use of the tractor function. Based on the tow basic type, our company expand production of various types of mechanical and hydraulic auto dump trailer, improve operational efficiency. Small auto dump trailer is backward of tipping; in middle and large dump trailer is lateral or backward tipping with the hydraulic lifting , and mainly is two sides to dump. The trailer adopts whole steel structure, has good matching performance, firm structure, beautiful shape, reliable braking, safe use, stable running, big load potential, convenient maintenance, durability and other characteristics, set farmlands and road transport in a body, is a good tool for the plain, mountain area.

SPECIFICATIONS FOR 5 TON SINGLE AXLE DUMPTRACTOR TRAILER

Carriage Size
lengh
mm
3000
width
mm
1850
height
mm
600

Main performance parameters
Tire item
--
10.0/75-15.3/4
Travel speed (max. & min.)
km/h
<=40
Max. loading capacity
kgs
5000

main parts
Brake
air brake
drawbar
mm
1200
frame
channel
2mm thickness

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced  components in electric parts and operation parts.

3) Could unload the goods by itself hydraulic systerm.

4) The back door could open by operate the tractor systerm,save the person working.

5) This trailer have two function, can load the crops,also can load the crop machine,such as harvester.With ramp in the back.

Certifications
Detailed Images

Machine Parts

Name: hydraulic cylinder

Travel: 3 stroke

Original: China

high quality iron, strong driving force, low fuel consumption, high economic benefits ,3 travel,use by the tractor oil hose,5ton cylinder.

Main Features

Name: Ramp
Brand: no
Original: China

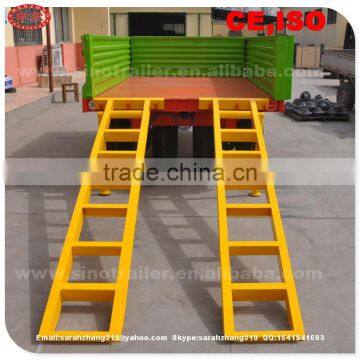

With two pieces ramp,for machine load easy.When use,put in the back.If not use, can taken down,put on side of the trailer.

Machine Parts

Name: Drawbar And Axle
Type: farm
Original: China
The tyre is farm tire,could run in the common road and the farmland,high quality for the 5 tons loading capacity,round axle.Drawbar is 1200mm, with oil hose and air hose.One Standard Jackwheel.

Main Features

Name: Hook
Standard: yes
Original: China
With hooks in the back,for machine fixed.Cage height can customized.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support. design drawing support

* View our Factory.


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* video or picture through email available to service machinery overseas.24h online services

Packing & Delivery
Packaging
Size
3300*2000*2200mm
Weight
800kg



Packaging Details

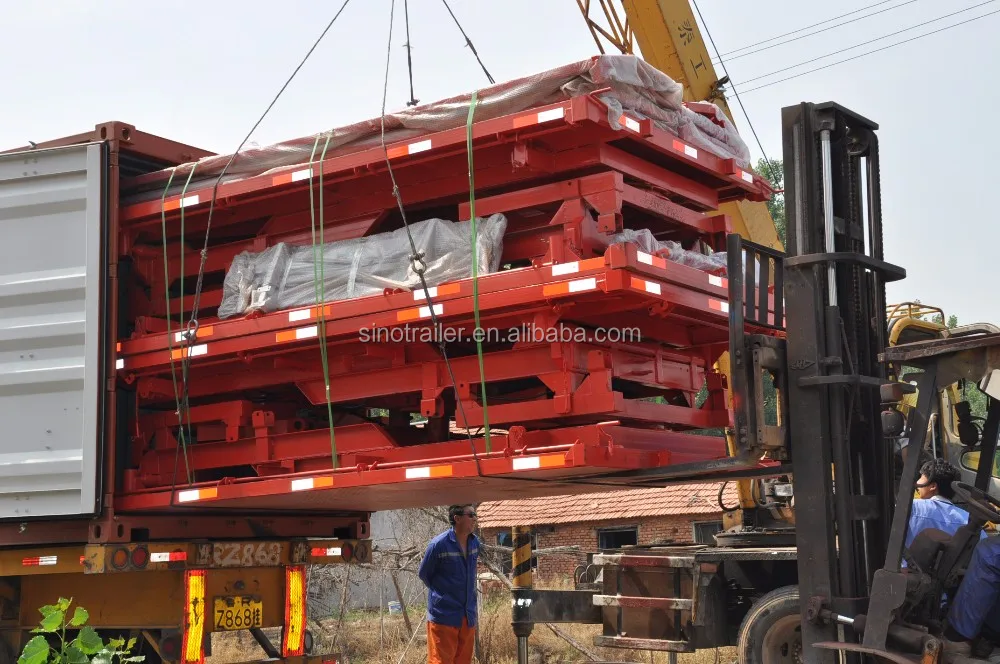

The normal package is like this(Size: 3300*2000*2200mm). The trailer is disassembled,need customers assemble it .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

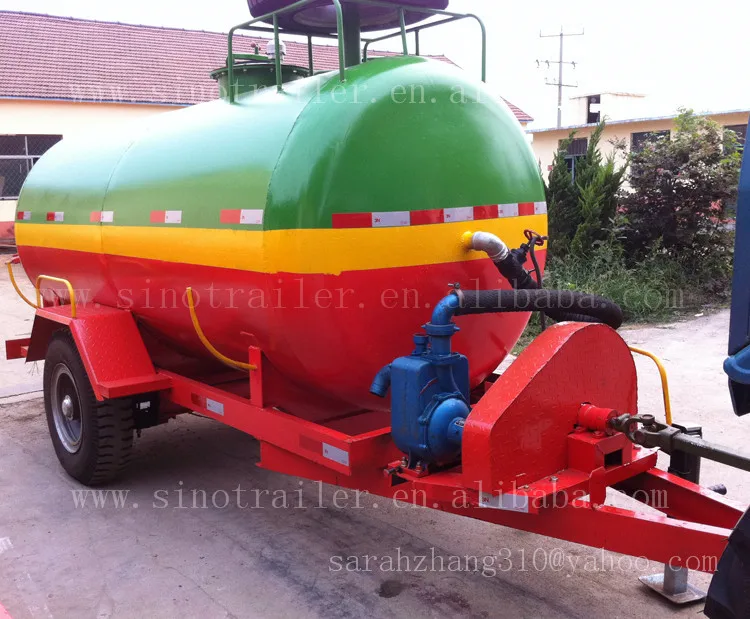

WATER TANK TRAILER
