Agricultural Disc Plough

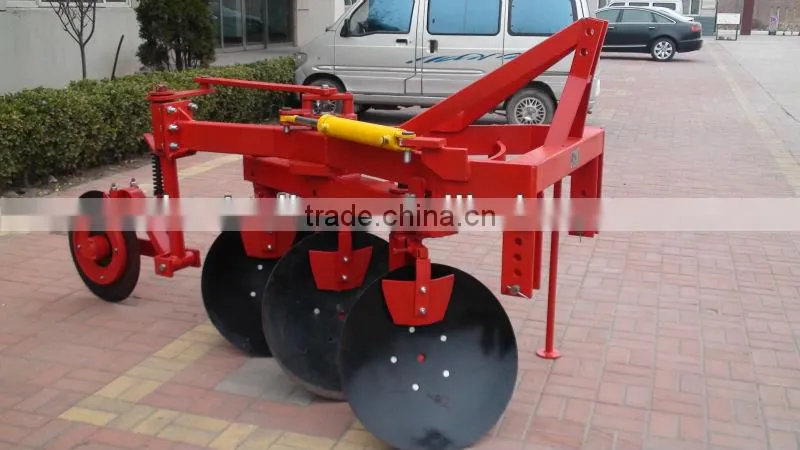

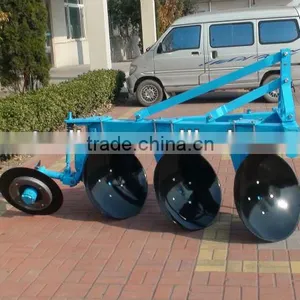

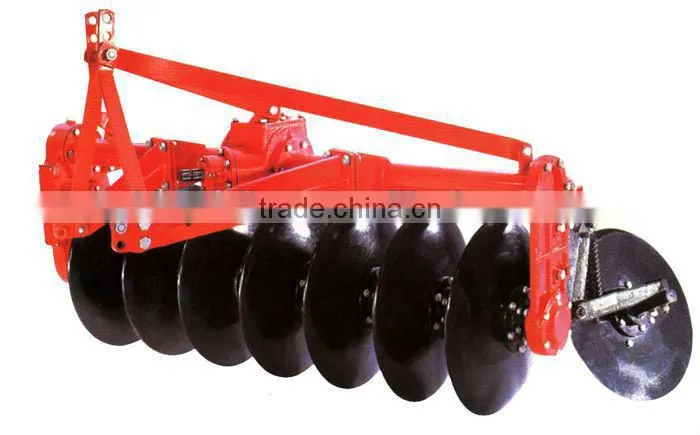

Name: Agricultural Disc Plough
Brand: shenzong
SKU: 138738695

US$ 200 - 600 MOQ: 1 Set

Key Specifications

Type:

szgc

Use:

farming

Certification:

ISO9001

Shandong Shenzong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Type szgc

Use farming

Certification ISO9001

Place of Origin Shandong, China

Brand Name shenzong

Model Number szgc

Agricultural Disc Plough

SERIES OF DISC PLOUGH

This series of disc plough is completely mounted with tractor,during operation,the discs by its rotating to turn

the soil,particularly,it is suitbale for operation on the field with grasses,straw and stems of crops or plants,big

soil resistance and with many stones and brickbat,etc.in the field.It is good at cutting the grasses and straw,

free from being stopped by the grasses,soil or stones,etc.According to the structure can be divided into

diffirent forms of 1LTS series;1 LY(T)series;1LY series;1LYX series;1LY(SX)series.

1LTS series of disc plough

Uses:

The disc plow provides quality and higher yield in plowing services in general and in the construction of contour

lines.Tubular structure of greater strength,Adjustments simplified ensure the best fit for the job in any type of soil.

The discs and wheel hubs guide are assemed with tapered bearings.The discs produced to rigorous standards

have high wear resistance and impact.Optional:Depth wheel,to help control the penetration of the discs.

Complete wheel weight:50kg.

1LY(T) series of disc plough

moel	unit	1LYQ(T)-220	1LYQ(T)-315	1LYQ(T)-320	1LY(T)-325	1LY(T)-425	1LY(T)-525	1LY(T)-625	1LY(T)-230	1LY(T)-330	1LY(T)-430
Working width	m	0.4	0.45	0.6	0.75	1.0	1.25	1.5	0.6	0.9	1.2
Working depth	mm	200	180	200	250	250	250	250	300	300	300
Disc diameter	mm	510	460	510	660	660	660	660	710	710	710
Qty of disc	pcs	2	3	3	3	4	5	6	2	3	4
Overall weight	kg	150	180	200	420	496	550	630	380	440	520
Matched power	hp	≥18	≥25	25-40	50-80	90-110	120-140	140-160	45-60	55-80	90-110
linkage	Staandard three point mounted

1LY series of disc plough(fitted with scraper)

moel	unit	1LYQ-220	1LYQ-315	1LYQ-320	1LY-325	1LY-425	1LY-525	1LY-625	1LY-230	1LY-330	1LY-430
Working width	m	0.4	0.45	0.6	0.75	1.0	1.25	1.5	0.6	0.9	1.2
Working depth	mm	200	180	200	250	250	250	250	300	300	300
Disc diameter	mm	510	460	510	660	660	660	660	710	710	710
Qty of disc	pcs	2	3	3	3	4	5	6	2	3	4
Overall weight	kg	200	210	230	460	520	580	660	400	470	550
Matched power	hp	≥18	≥25	25-40	50-80	90-100	120-140	140-160	45-60	55-80	90-110
linkage	Standard three point mounted
