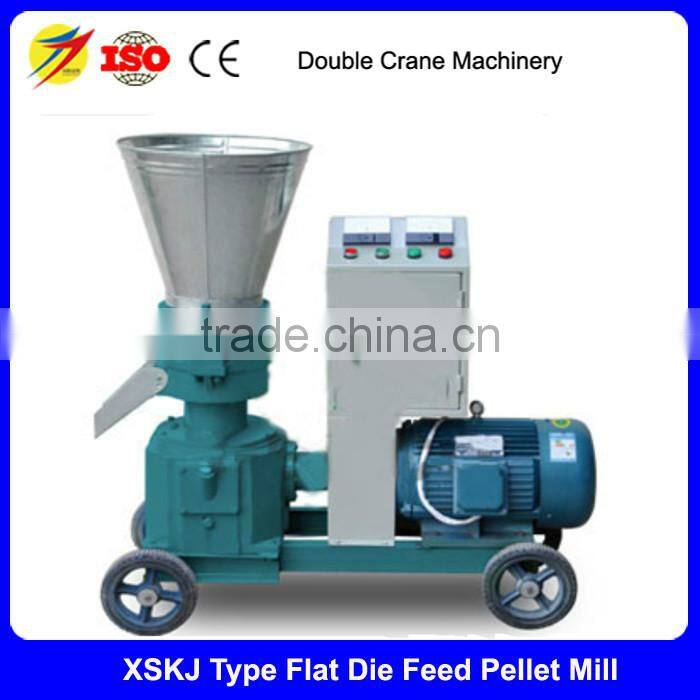

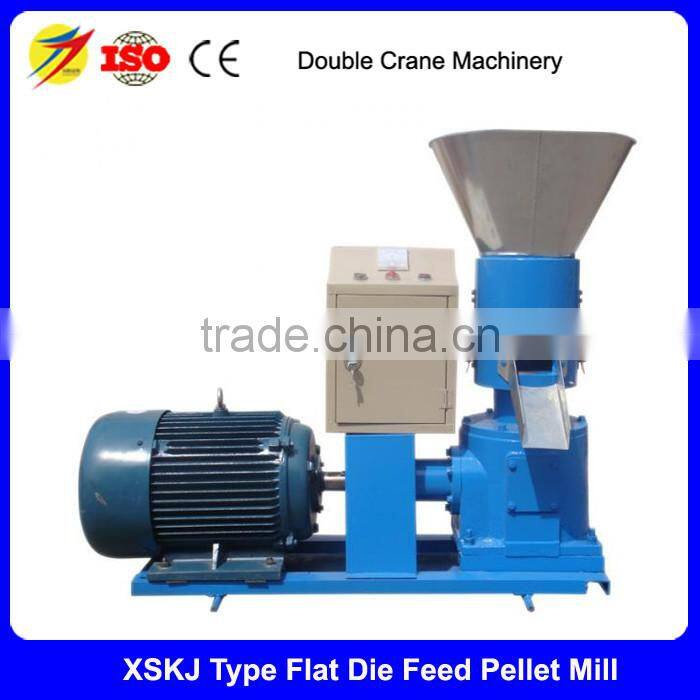

prime quality flat die feed pellet mill for sale
If you are a small scale poultry or animal breeding farm, and you may look for a low hourly capacity feed pellet mill to meet your need.It happens that the flat die pellet mill we produced is your best choice. It can not only press the grain such as corn,soybean powder into pellet, but also can squeeze the coarse fiber such as rice straw,leaves into pellet. Our flat die feed pellet mill can produce 100-2000kg feed per hour with different models.The electric motor driven makes it more energy-saving and environmentally friendly,it is made of wear-resistant material thus having a long service life with simple structure, small area coverage, easy operation and maintenance,low consumption, competitive price and cost saving.
Main Technical Data For Flat Die Feed Pellet Mill
Item NO. |
SKJ250 |
SKJ350 |
SKJ400 |
SKJ450 |
SKJ550 |
Output (t/h) |
0.3-0.5 |
0.7-1 |
1-1.5 |
1.2-2 |
2-3.5 |
Main Power(kw) |
18.5 |
22 |
37 |
45 |
55 |
Die Dia.(mm) |
250 | 350 | 400 | 450 | 550 |
Feed Dia (mm) |
3-5 | 2-8 | |||
Roller Qty (pc) |
2/3 | ||||
Driven |
direct transmission | ||||
Application |
Use to produce feed pellet for poultry/chicken/rabbit/sheep/cattle/cow farm. | ||||
Main Features:
1.Flat die pellet mils are easier to be cleaned and maintained and cheaper because of the design of portable rollers and die.
2.Flat die pellet mils are more convenient for you to monitor the process of pelletizing by watching the pelletizing chamber which make the experiment of indeterminate materials for raw materials expansion easier.
3.the flat die pellet mills are usually used to process materials with large adhesive force for both fuel pellets and feed pellets in small scale and medium scale pellet production.
4.rational structure, low power consumption and high efficiency, sturdy and durable, it achieves combining the advantage of both flat die pellet machine and horizontal ring die pellet mill and becomes the real professional pellet machine that is used to the materials with low adhesiveness and low shaping, such as the rice husk, sunflower husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, household waste, rubber, cement, ash and other chemical materials.
Certificate:

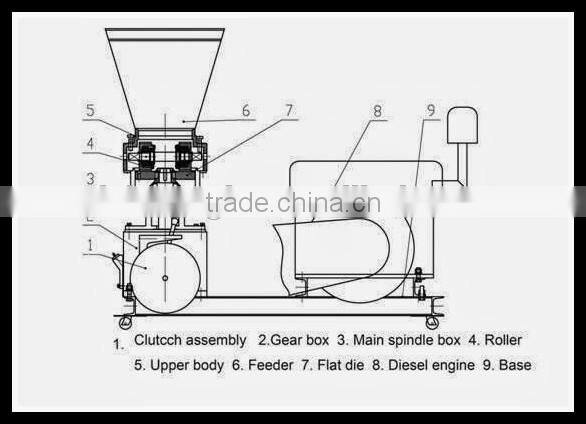

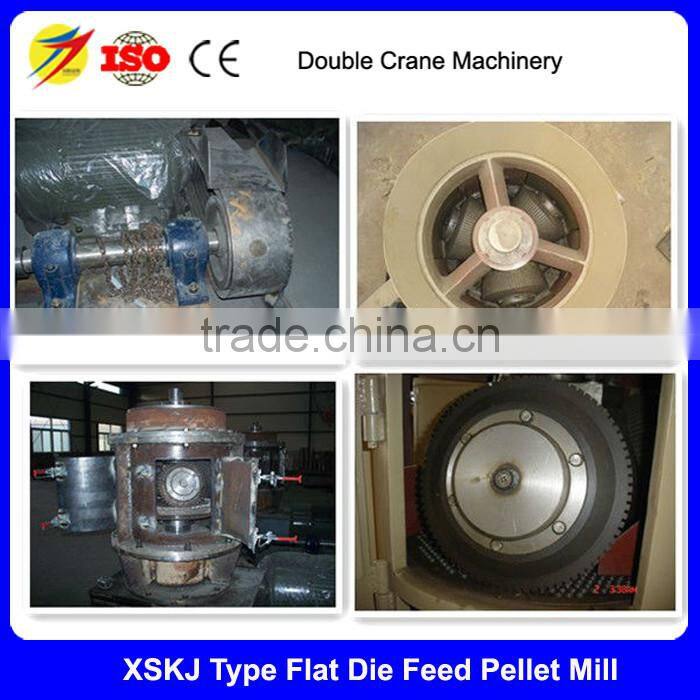

Main structure:

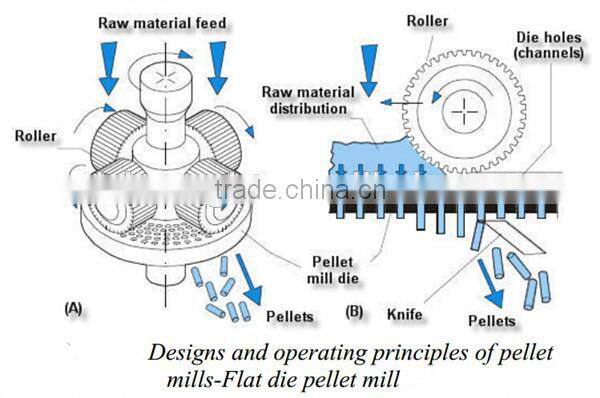

Working principle:

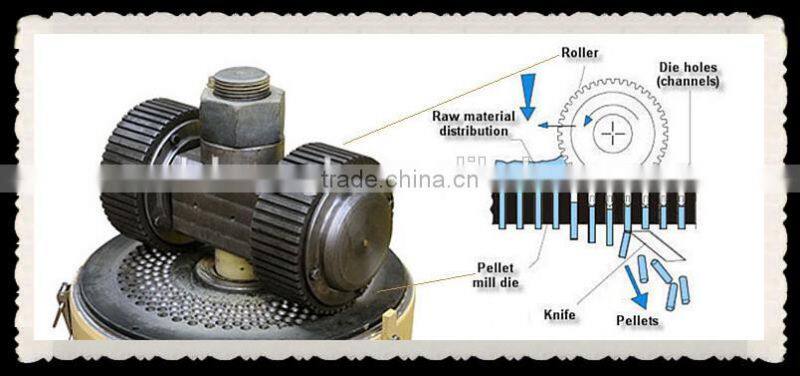

Flat die mills use a flat die with slots. The powder is introduced to the top of the die and as the die rotates, a roller presses the powder through the holes in the die. A cutter on the other side of the die cuts the exposed pellet free from the die. Its primary structural feature is that its die is horizontal with a series of rollers above it. When making pellets, the powders of raw material fall down into the space between the flat die and the rollers. Then the rollers compress these powders into the small holes through the flat die to form pellets. As soon as the pellets emerge on the other side of the flat die, a series of knives will cut them into the same determined length immediately. Thus, the final pellets with the same length are made. Flat die pellet mill is mainly applied in individual use and home usage, as it is easy to move and operate. Flat die pellet mill can also be divided into two types: rotating roller flat die pellet mill and die-turned flat die pellet mill.
Application:
For priviate farm, small farm and home use in chicken /duck/cattle/pig feed
The difference between the ring die feed pellet mill and flat die feed pellet mill:
1. Price: The flat die pellet mill is far cheaper than that of the ring die pellet mills.
2. Capacity: The output capability of the flat die pellet mill ranges from around 80 to 1000 kg /h at most while the ring die pellet mill can produce around 1 to 20 t/h at most.
3. Feeding: The feeding of the flat die pellet mills relies on materials weight and the feed stock enters into the pelleting room directly and evenly. While the feeding of ring die pellet mills is forced into the pelleting chamber and distributed by the speed-changed feeder.
4. Pressure: The pressure of flat die pellet mills is adjustable. The diameter of rollers in the flat pellet mill is not restricted by the diameter of the pellet die so that the roller pressure can be increased by enlarging the inside bearing space, adopting a big bearing which also expands the working life. While as for the ring die pellet mill, the pressure of the pinch roller is limited because the diameter of the rollers are limited by the diameter of the pellet die.
5. Discharging: The percentage of damage of flat die pellet mill is lower than that of ring die pellet mills because of the high rotary speed of the ring die.

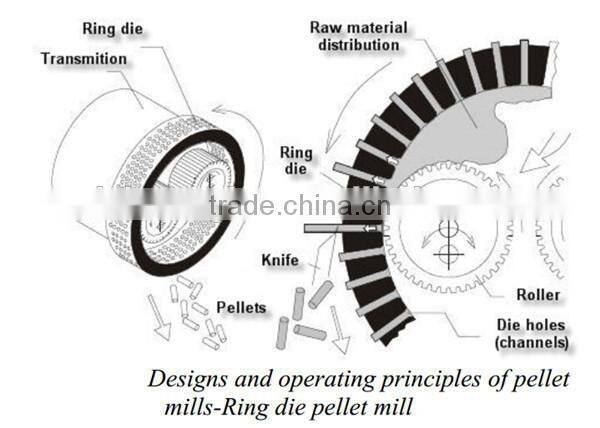

6. Pellets formation: The flat die type have a circular perforated disk on which two or more rollers rotate and force the material through the holes to form pellets. The ring die press features a rotating perforated ring on which rollers (normally two or three) press on the material to the inner perimeter to form pellets.
Though the comparison, the features of the two different pellet mills are obvious. When purchasing the pellet mills, it is better to consider the all around situation of your pellet production and find the suitable pellet mill.
SKJ350 flat die feed pellet mill net size and weight: 1200*460*950 mm /0.25 T
paked size and weight: 1300*550*1000/0.35T by wood case
For single pellet mill shipping, we can use the wood case packing. if your order quantiry is full to load
into a container, you can choose wether to be packed or not.
|
Wood case or bublle film wrapping paked into 20 GP/40GP container |
|
|
Pre-sale service: 1.remmond and select suitable machine according to the customer requests. fessional suggestion to the customer. 3.if you buy the whole productin line, we can supply the professional design,suggestion, if necessary, we can go to the customer company for communication. |
After-sale service: 1.24- hour online to solve problem. 2.supply training,guide and maintain for machine. 3.for production line,we can install and commissioning at the customer company. 4.supply the feed raw material ingredients 5.other help for the customer need. |
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological
development zone,Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.
Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines
and biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been
always focused on designing and manufacturing feed pellet machines and biomass pellet machines since
the foundation in 2005.We had cooperated with domestic famous universities like Shandong University,
Jinan University and Shandong Agricultural University in feed pellet production line and biomass pellet
production line research and development since 2008.We had obtained more than 30 patents and
successfully developed 8 series of products,including 60 different kinds of machines. In the feed pellet
industry ,we had achieved advanced level in man-machine design,functional design,automatic control and
user experience and became the professional pellet mill manufacturer in China.
We have strong competitive advantages in feed production line with the capacity of 1-30 tph and
biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200 sets
of machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to
build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth
automatic and integrative technology development.These investments have greatly promoted the upgrading
of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane
Machinery is willing to become your partner with our high price-performance products,excellent quality
and perfect after-sales service.
Promise provide customer Best Quality! Best Price! Best Service!
1.Are you manufacturer or trading company?
R:Our company is manufacturer and public company,we have been specialized in this field more than ten years.
our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.Located in
Dezhou city,Shandong Province.
2.How can we promise the equipment quality?
R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System
Certification, Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member, Well-known
Trademarks In China.We have professional R&D and production team can promise all equipment is
qualifyed befor deliver to customer.
3.If we want to establish a feed production line,can you help us?
R:Yes,our company can provide service of free design,training,guidance,onsite installation,and debugging.
Only need customer tell us which type animal feed do you want to produce,production capacity demand,
we will recommend you the best design and offer.
