powder feed mixer machine, poultry feed processing machine for sale
Double Shaft Paddle Pneumatic Type Feed Mixer Brief Description:
This type feed mixer general match large type animal feed production line project,it have high mix capacity,
pneumatic discharge,easy operate,It has the advantage of low investment, high returns advantage.
1. Usage: widely applied to additive, premix, feedstuff, medicine, food chemical industries, etc.
2. Short mixing period 40-180s/batch,5-10batch/h, high mixing homogeneity (CV≤3%);
3. Specially design: pneumatic type discharger door sealing system has good tightness, ensur no products leakage,discharge quickly,so the mix capacity very high;
4. Customized carbon steel or stainless steel body, strong resistance to corrosion,can also add liquid material;
5. "W" shape double-circle rotor design,inside and outside double-circle paddle design,reinforcing convection.
Double Shaft Paddle Pneumatic Type Feed Mixer Main Model:
| Paddle Mixer Model |
SLHSJ 0.5 | SLHSJ 1 | SLHSJ 2 | SLHSJ 4 | SLHSJ6 |
| Motor Power(kw) | 5.5kw | 11kw | 18.5kw | 30kw | 37kw |
| Mix Capacity(ton) |
0.25T/Batch |
0.5T/Batch |
1.0T/Batch | 2.0T/Batch | 3.0T/Batch |
Effective Volume(m³) |
0.5 |
1 |
2 |
4 |
6 |
| Dimension(m) | 1.85*1.75*1.37 | 1.79*2.34*1.5 | 2.32*2.59*1.64 | 3.16*2.94*2.1 | 3.82*3.33*2.44 |
| Weight(ton) | 1.3t | 2.6t | 4.5t | 5.4t | 6.5t |
| Steel Thikness (mm) |
Carbon Steel or Stainless Steel,Thikness 5-20mm |
||||
Mixing Time(minutes) |
40-180 Second/Batch, 5-10batch/h |
||||
Mixing Evenness(cv%) |
CV ≤ 3% |
||||
Structure |
"W" shape double shaft horizontal pneumatic type paddle mixer, Electric motor drive chain transmission,main shaft speed 25rpm Big pneumatic door discharging feed at paddle mixer's bottom,no residue. |
||||

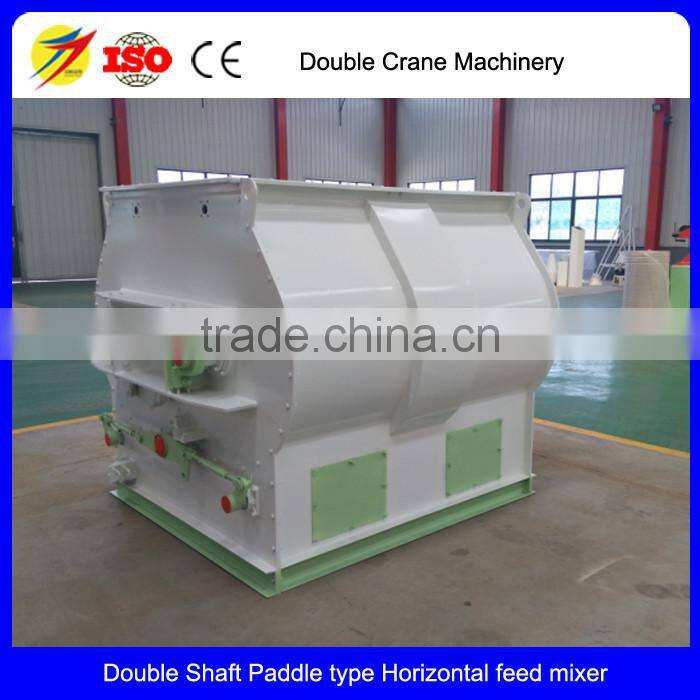

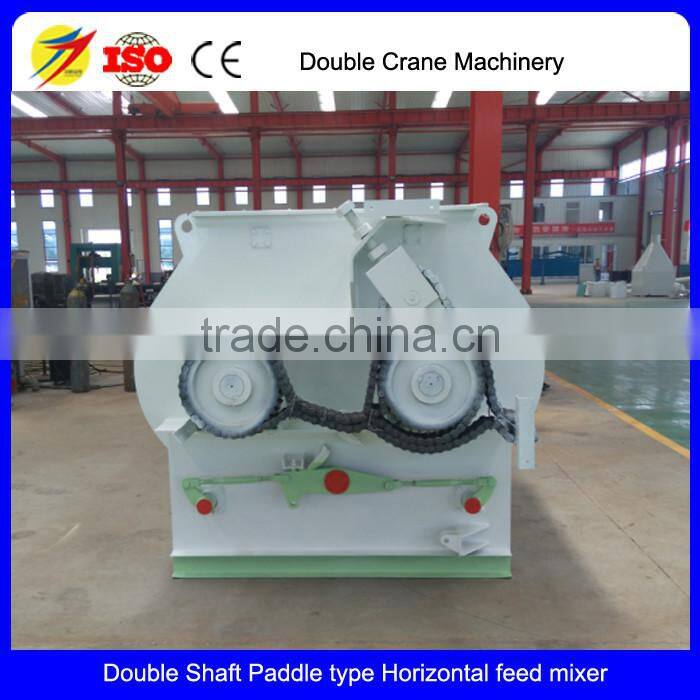

Photos for our Double shaft Paddle Mixer
1. for single machine, it will cover plastic film and then packing into a plywood case.

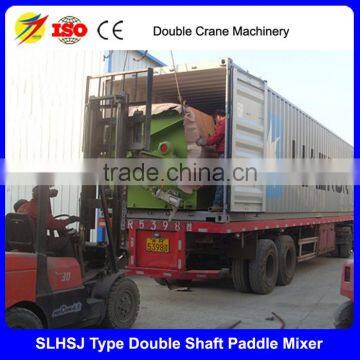

2.If by Container, the machine with plastic film will loading into container and then fixed. If you have special request,we will also pack machine as your request.
Shandong Double Crane Machinery Manufacturer Co., Ltd was found in 2005. It located in Leling town, Dezhou city, Shandong province. Our company is specialized in feed machine, grass machine, chemical machine and organic fertilizer production machine for more than 10 years. and independent innovation and first develop biomass briquetting complete set in China. The main raw material is sawdust, straw, Grain, fiber. etc., In order to ensure the high quality product and make it meet different client requirement, Our company retain well known agricultural experts and skilled engineer to make more new designs and improve the product process.
Our main product contain hammer mill, double shaft/single shaft mixer, plat die/ring die pellet mill,counter flow cooler, different type screener, wood chipper, chaff cutter, airflow drier, and transfer equipment,such as bucket elevator, screw conveyor.Our product is honored with the authoritative certifications, such as SE,GS Safety Certification,ISO9001 Quality Management System Certification,
Our products enjoy extremely high reputation both at domestic market and abroad, such as in South Korea, Vietnam, Philippine,Thailand, Malaysia, Australia, Russia,America, Finland, Spain, Bulgaria,Africa and other countries and regions.
1. Q: Are you a trading company or a manufacturer?
A: We are top manufacturer which specialized in this feed machine field for more than 10 years and also high reputation in China.Our factory cover 67000m2 and annual sale is 60 million.
2. Q: The MOQ for your product.
A:The MOQ for our product is 1 set.
3. Q: Do you provide the after-sale service?
A: Yes. The warranty period of our machines is one year, (Calculated from the equipment arrives the customer’s side). and we have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Will you dispatch engineers to guide installation the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5.Q: Do you provide product flow chart?
A:Yes. Our experienced engineers are specialized in designing process flow for various project.
6. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Grezece, Romania, Lithuania, etc.
7. Q: How can I get to your company?
A: You can get a flight to Jinan Airport and We are just about 1hours away from Jinan Airport. Or you can flight to Beijing or Shanghai and then take the high-speed train (G-train). The nearest railway station is Dezhou East station.
Our company is the top manufacture and will be the best choice in feed pellet series machine and wood pellet series machine .If you have any suggestion about our product,Please feel freely to inform me at any time.The best service will supply for us ASAP.Wish to get a chance to cooperate with you in Early days.
