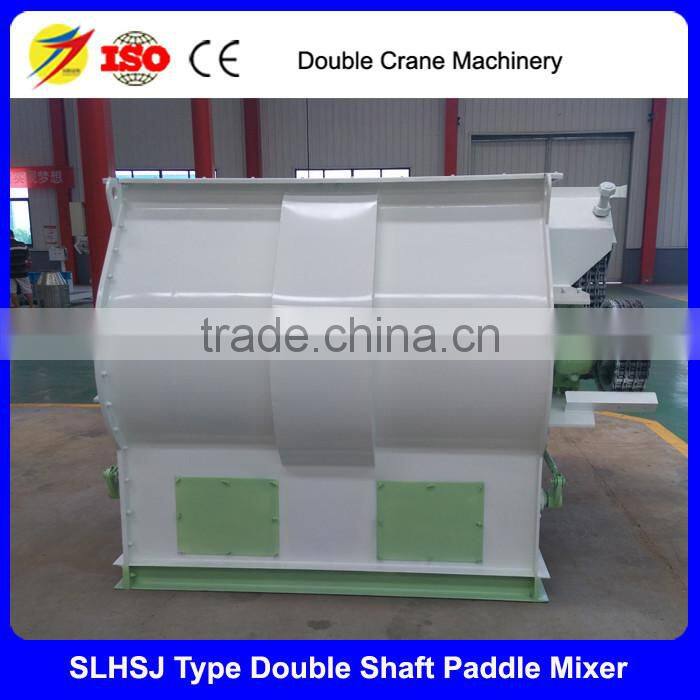

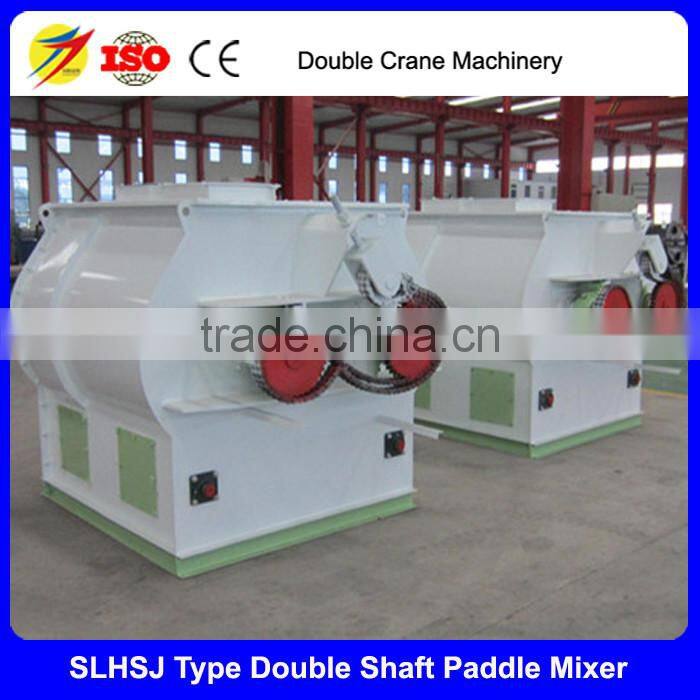

0.5 T/H double shafts paddle type horizontal animal feed mixer
Introduction for 0.5 T/H double shafts paddle type horizontal animal feed mixer
Applicable to cooperate with feed mills in the mixed powder material, the composition of the mixture
uniform distribution ensure the quality of compound feed widely applied in putty paste, really stone
paint, powder, putty, medicine, food, chemicals, feed mixture. 0.5-2T/Batch capacity is choosen for
your requests made of stainless or carbon steel, short time mixing time and high -speed stiring produce
good quality feed powder.
Main parameters for 0.5 T/H double shafts paddle type horizontal animal feed mixer
| Model |
Power (kw) |
Capacity Feed (Ton/h) |
Size(mm) Weight |
Remark |
| SLHSJ0.5 | 7.5 | 0.25T/Batch |
L:1650,W:1800,H:1300, Weight:1300kg |
Transmission Type: Chain drive Structure:Double shaft,paddle-type Rotate Speed:25r/min Mix Evenness:98% Spaying system. Mixing time:4-180s |
| SLHSJ1 | 11 | 0.5T/Batch |
L:2050,W:2185,H:1650, Weight:2500kg |
|
| SLHSJ2 | 18.5 | 1 T/Batch |
L:2580,W:2970,H:2100, Weight:4500kg |
Features for 0.5 T/H double shafts paddle type horizontal animal feed mixer

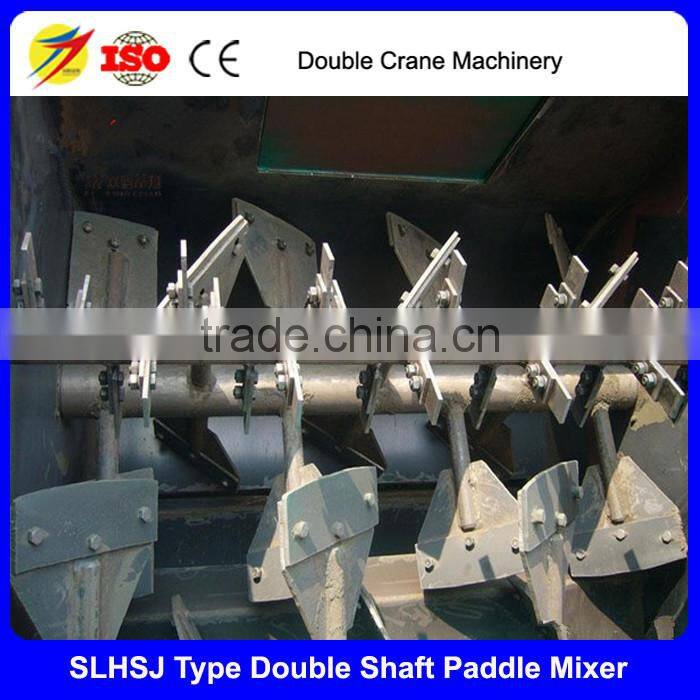

1. The body is W type with double rotors inside, spraying device on the top is suitable for mixing low
and high density materials together. The atomization can to avoid material blocking.
2. Specially designed discharging mechanism makes the machine have large door opening angle with
quicker discharging speed and less residue. The machine has compact structure,good sealing performance
and no leakage.
3.Quick mixing speed and high degree of homogeneity.The mixing process is unaffected by the material
volume and density.
Working processing for 0.5 T/H double shafts paddle type horizontal animal feed mixer
The formulation ratio of various ingredients are put into the mixer, outside screw belt pushes the material
from one side to the other side,while the inside screw belt pushes the material opposite destination movement,
inner material being pushed to the side after rolling out,layer of material from the inside to the outside back
after being pushed to one side, the outer material is pushed to the other side after rolling by extroversion,
So repeated many times, finally through discharge control system discharge from the discharging door.
Basic operation for 0.5 T/H double shafts paddle type horizontal animal feed mixer
(1) Before use should be run idle, the body should be smooth, no more than the normal
vibration, and should observe the discharging mouth work.
(2)When using, should start the speed reducer, the rotor rotation normal after feeding.
(3) The material surface shall not be lower than in the spindle axis plane.
(4) should be in general by the body's main ingredient batch after additives,oil should be in the body
by all main ingredient after injection, after the injection should be mixed rear can put the material for
a period of time.
(5) Without downtime, grease add no remaining oil in the pipeline and avoid oil pipeline after solidification.
(6) Material into metal impurity in order not to be so as not to damage the rotor blade.All landowners
speed reducer and the cylinder, the use of auxiliary components, shall comply with the terms of the
instruction for use.
Application for 0.5 T/H double shafts paddle type horizontal animal feed mixer
1.It is the second key process to mix the all raw material powders well in the whole feed pellet production
line for poultry/animal/Aqua feed mill.

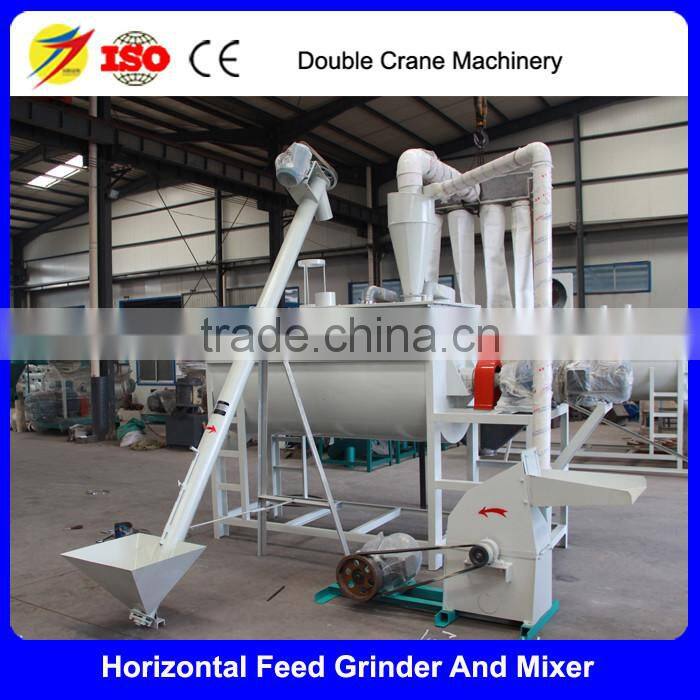

2.Being together with hammer mill to produce feed powder /mash.
Certificate for 0.5 T/H double shafts paddle type horizontal animal feed mixer
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological
development zone, Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.
Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and
biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused
on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.
We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong
Agricultural University in feed pellet production line and biomass pellet production line research and development
since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60
different kinds of machines.
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic
control and user experience and became the professional pellet mill manufacturer in China.We have strong
competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line
with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build
19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic
and integrative technology development.These investments have greatly promoted the upgrading of the machines,
offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to
become your partner with our high price-performance products,excellent quality and perfect after-sales service.
Promise provide customer Best Quality! Best Price! Best Service!
About Professional Service:
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include:free training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further information!
1.Are you manufacturer or trading company?
R:Our company is manufacturer and public company,we have been specialized in this field more than ten years.
our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.Located in
Dezhou city,Shandong Province.
2.How can we promise the equipment quality?
R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System Certification,
Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member, Well-known Trademarks In China.
We have professional R&D and production team can promise all equipment is qualifyed befor deliver to customer.
3. what is your raw material and hourly capacity ?
R: The raw material can be crused corn,soybean,straw,grain,additive and liquid ...
The hourly capacity is 0.5-2T/Batch.
4.Is the mixer can use alone ?
R: Yes, but you had better match a elevator to hoisting the crushed power into mixer.
Welcome your inquiry and we will reply you within 12 hours !
