High-tech Feed Grinding And Mixing Machine For Poultry Feed 3-5TPH
- 100 Set / Sets per Month
- Qingdao port China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Double Crane | Model Number | SH-5000 | |
| Type | Mill Machine | Voltage | Standard 380V,50hz,3phase | |
| Power(W) | 55KW | Dimension(L*W*H) | L 7*W7*H8*D(-2)m | |
| Weight | 6000 kg | Certification | CE SGS ISO | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High-tech Feed Grinding And Mixing Machine For Poultry Feed 3-5TPH
Brief Introduction Of Poultry And Pig Feed Hammer Mill And Mixer Production Line 3-5T/H:
This premix feed production line is very suitable to produce premix/powder/mash feed for egg chicken,pig,etc.It can process all kinds of grain feed,such as corn,soybean,sorghum,legumee,and crushed bone,fish,etc.
It has the advantage of low invest high return,crush thoroughly,mix evenly,it easy to adjust feed formulation and feed material mix proportion,to meet customer various demand,this production line already working in Kenya,Tanzania,
Ghana,Niger,win high reputation.
Premix feed production capacity (up to 3-5t/h),have dust cleaning system make sure workshop clean,Hammer mill screener sieve size can be 2,4,6,8,10,12mm,to meet different demand for the animal feed.This automatic powder feed plant Installed by steel frame structure,strong and durable, so equipments have long service time,promise it can work at least 15 years.
Major Production Process Of Poultry And Pig Feed Hammer Mill And Mixer:
Feed Screw Conveyor → High Capacity Feed Hammer Mill → Bucket Elevator A→ Automatic Pneumatic Feed Mixer →Bucket Elevator B → Package Silo → Automatic Packaging Scale,and Electric Control Cabinet,Air compressor,
Dust collection system.
Major Equipment Introduction Of Premix Chicken Feed Grinder And Mixer:
1.Water Drop Type Feed Hammer Mill: (Grind Corn Feed,Alloy Sieve Size Can Be 2-12mm)
(1) Wide chamber feed hammer mill,unique design,novel struture and easy operation.
(2) The effective material crushing circulation layers can make twice crushing to ensure uniform fineness of the
finished products,two metal sieve can help improve crush efficiency.
(3) Avariety of sieve sizes are available to choose 1.5-12mm,flexible opening device and elastic pressure sieve mechanism,convenient to change hammer and sieve and maintain.
(4) The rotor is running smoothly through balance correction,low noise and excellent performance.
(5) Security door type operation, to ensure the door can't open during rotor rotates.higher safety.
(6) Water drop type hammer mill can crush feed and sawdust,etc.Multi-function usage.
2.Automatic Feed Mixer With Pneumatic Discharge: (Mix Crushed Feed Evenly)
(1) Feed mixer adopt special steel material,not easy to rust and corrosion, easy to clean and maintance;
(2) The support frame is of strong carbon steel framework design,solid and durable;
(3) Propeller is wholly processed after welding,with high concentricity;
(4) The mixer equipments standing operation only need little space;
(5) Mixing in a sealed manner,uniform mixing and no leakage definitely;
(6) Small horse power,large mixing capacity and fast speed to realize a uniform mixing in 3 minutes.Mixing time only
3 minutes/Batch,Mixing Evenness (CV%) ≤ 5%,discharge speed within 1 minutes.
(7) Oil filler and material discharging device are designed at frame bottom,with durable bearings.
(8) Under the bottom have automatic pneumatic discharge device,it can discharge mixed feed within 1minutes.
3.Automatic Packing Scale System: (Automatic pack bag)
Mixed feed automatic feed into packaging scale,can automatic weighing 25-50kg/bag,save labor,by horizontal belt conveyor transport bag under automatic sewing machine to sewing bag,packaging speed 200-400bag/h.

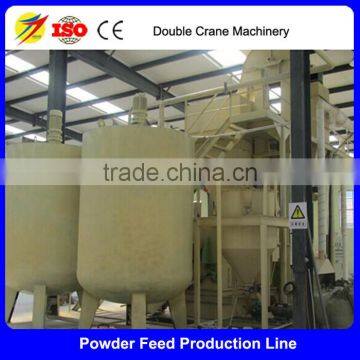

Amimal Feed Mill And Mixer Production Line 3-5T/H Installed Pictures:
1>Crushed Chicken Corn Feed Picture:Hammer Mill Match Sieve Hole 8-10mm.
Full Container or Wooden Box Packaging & Shipping Picture:
About Professional Service:
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include:free training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further information!
SFSP Type Feed Hammer Mill Pass EU CE Certificate:
Double Crane Machinery Area 67000m² Factory Show:
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological development zone,Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong Agricultural University in feed pellet production line and biomass pellet production line research and development since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60 different kinds of machines. In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic control and user experience and became the professional pellet mill manufacturer in China.We have strong competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic and integrative technology development.These investments have greatly promoted the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to become your partner with our high price-performance products,excellent quality and perfect after-sales service.
Join our company and win our future.
Double Crane Machinery Workshop Show:
If you're interested in our equipment, please kindly reply us the following question:
1. What's the feed hammer mill and mixer production capacity do you want?
R:We can supply feed hammer mill and mixer production line with output from 0.5-20t/h.
2. What's your feed raw material situation?
R:Our feed hammer mill and mixer can crush grain feed,such as corn,soybean,etc.
3. What's the final crushed feed size do you want?
R:Our hammer mill can crush feed based on screen 1.5mm-12mm,final product powder or particle product.
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
