China double 11 large discount highly take advantage of corn soy wheat processed feed pellet making line
We are manufacturing aqua feed pellet mill, animal feed pellet mill, fish feed pellet mill, CE machine, feed machinery, compound fertilizer machinery, grass processing machinery, bio-energy equipments and Installation for complete engineering for exportation
Scope of our supply :
1. Animal feed pellet line.
2. Cattle feed line.
3. Chicken feed line.
4. Floating/sinking fish feed line.
5. Shrimp feed line.
6. Biomass pellet line.
We can also provide Turnkey Project as per your demands !
Please check below brief introduction about the feed project we did and your inquiry will be warm welcomed !
Features of poultry feed production line
1. Wide applicable scope
It can process different materials such as corn, maize, grass, grain, SBM, MBM, alfalfa, molasses, straw, and some other raw materials.
2. Complete feed pellet process

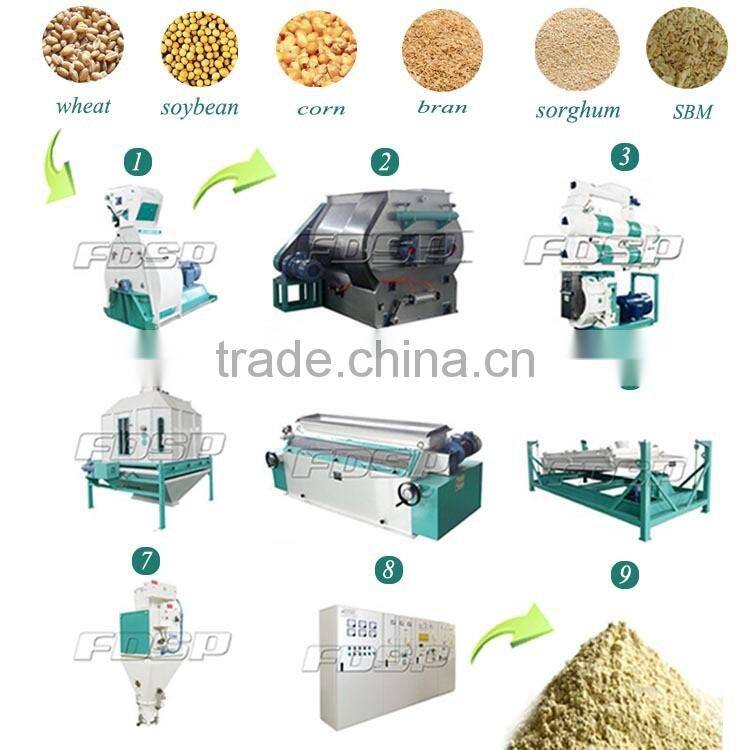

Animal feed pellet production line contains receiving and cleaning, grinding, batching and mixing, pelletizing,cooling,crumbling ,screening and packing pellets parts. Full line
contains crusher, mixer, pellet mill, cooler,crumbler,cooler and all bins, screener,packing machine conveyors etc.We will design the full pellet line flow chart according to your
raw materials and specific requirements.
3. Good quality finished feed pellets
Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency.
4. High efficient feed machines
High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.
5. Customized Capacity
We can customize the different capacities from 1 ton per hour to 50 ton per hour or
even more.
6. Different kinds and size of feed
We can customize solution of producing mash feed, pellet feed, crumble feed for you. The size of pellet feed can be 1.5mm to 18mm.
Technical parameter:
A complete animal feed production line includes: Hammer Process, Mixing Process, Pelletizing Process, Cooling Process, Crumbling Process, Sieving Process and Packaging Process.
Main machines and anxiliary equipment:

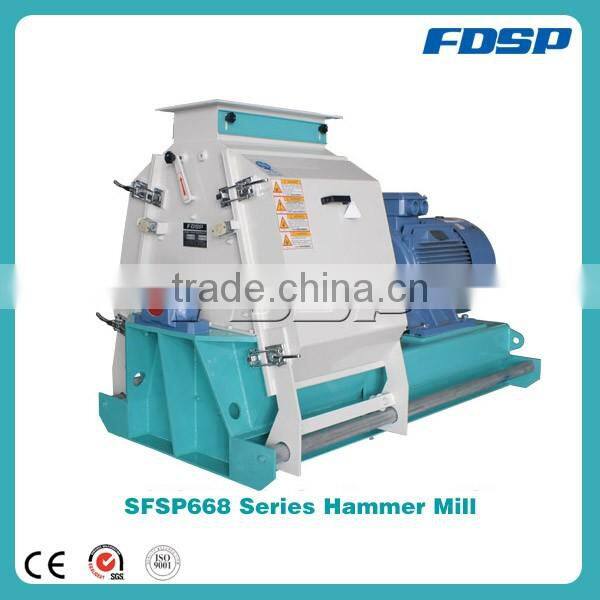

1. Grinding processing with our grinding machine
2. Pelleting processing with our Feed Production Line
Feed pellet mill is the main equipment of the whole production line. There are several main common
kinds of ring die feed pellet mills: Livestock Feed Pellet Mill, Combination of Livestock and Aqua Feed Pellet Mill, Aqua Feed Pellet Mill, Wood Pellet Mill. Also , you can according to the needs of yourself
to customize modulator to apply to the production of different materials or feed object.
Parameters of our Feed Production Line
| Model | Capacity(t/h) | Power(kw) | Inner diameter of Die(mm) |
| SZLH32 | 2-5 | 37/45 | 320 |
| SZLH35 | 3-7 | 55 | 350 |
| SZLH400 | 3-10 | 75/90 | 400 |
| SZLH420 | 3-14 | 90/110 | 420 |
| SZLH508 | 6-15 | 160 | 508 |
| SZLH678 | 11-32/11-36/11-40 | 220/250/280 | 678 |
Other Equipment and Auxiliary System for Feed Production Line
We treat customers sincerely and pay more attention to how to maximize return of investment. We improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service. We will furnish comprehensive, professional, and thorough service to meet customer's requirements. Thinking from customer's side, and solve problems timely.

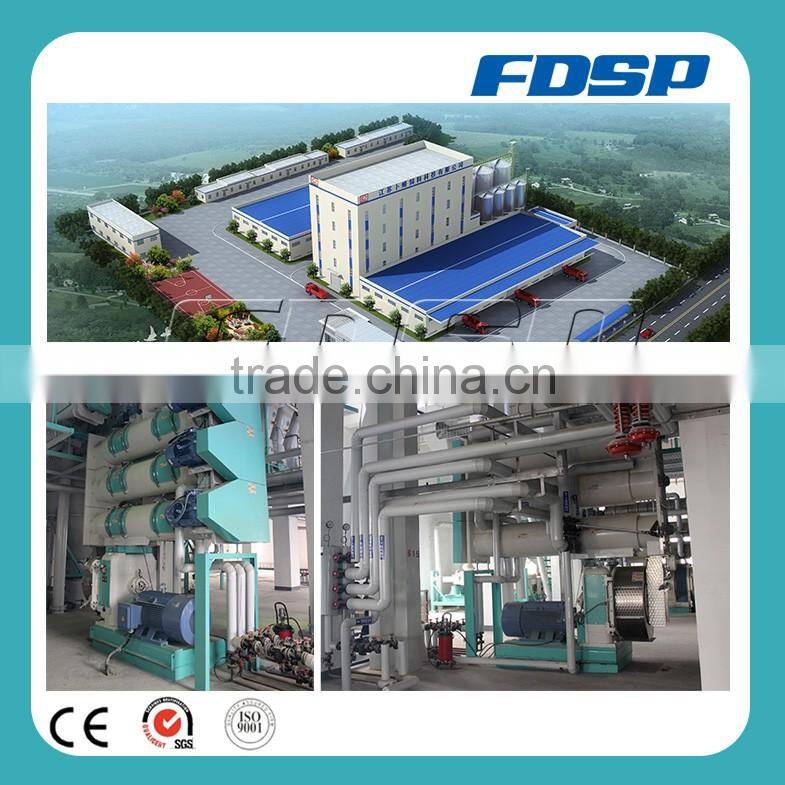

Typical Project
Company View
FDSP has about 20 years of experience in the comprehensive development and utilizationin agriculture field. It covers an area of 15000 square meters, covering
total area of 15,000 square meters with over 200 staffs, located in liyang city, jiangsu province, China, a beautiful and ancient city.
Certifications
obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification
