Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > Chain Conveyor Equipment/Screw Conveyor Price

Chain Conveyor Equipment/Screw Conveyor Price

Name: Chain Conveyor Equipment/Screw Conveyor Price
Brand: FDSP
SKU: 138716427
Availability: InStock

Chain Conveyor Equipment/Screw Conveyor Price thumbnail-1

Chain Conveyor Equipment/Screw Conveyor Price photo-1

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

FDSP

Contact Supplier Request Quote Chat Now

Jiangsu Liangyou Zhengda Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name FDSP

Certification CE ISO SGS

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Introduction of Chain Conveyor

FDSP TGSS and TGSU series en-masse conveyors are well constructed and diversified. There are different types can be chosen according to different raw materials. The conveyors are widely applied to grain storage, oil processing, feed processing, mine, cement, chemical, and metallurgy industries etc.

Item	Conveying equipment/TGSU Series Chain Conveyor
Discription	Our TGSU series en-masse conveyors are well constructed and diversified. There are different types can be chosen according to different raw materials. The conveyors are widely applied to grain storage, oil processing, feed processing, mine, cement, chemical, and metallurgy industries etc.
Main scraper types	--Flat scraper, --U shaped scraper --airtight scraper etc. Head pulley and tail pulley are dissection assembly type, whose rail is fixed by bolts, which is easy for maintenance and replacement.
Chain types	--Weld cranked link chain, --Die forging chain, --Bush roller chain
Safety Protection device	According to customers’ requirements and working condition, there are optional devices which include dust explosion proof motor, backstop, fluid coupling, blockage alarming devices, stall alarming device and chain-breakage proof device.
Packing Details	Iron case or iron pallet etc
MOQ	1 Set
Payment	L/C, T/T, Western Union, Money Gram as client require
Warranty	One year warranty and all around after-sale service.

Safety Protection device:

According to customers’ requirements and working condition, there are optional devices which include dust explosion proof motor, backstop, fluid coupling, blockage alarming devices, stall alarming device and chain-breakage proof device.

Advantage of Chain Conveyor

It can be widely used for conveying raw materials, semi finished grains, feed etc. for grain warehouse, port, wharf.
It is with simple structure, occupy small floor space.
High quality with lower power consumption and large load capacity.
It is with good tightness, stable conveying and low noise.
Long using life and easily installation and maintenance.
The chain is high strength type. Blockage detector is optional

Specification of Chain Conveyor

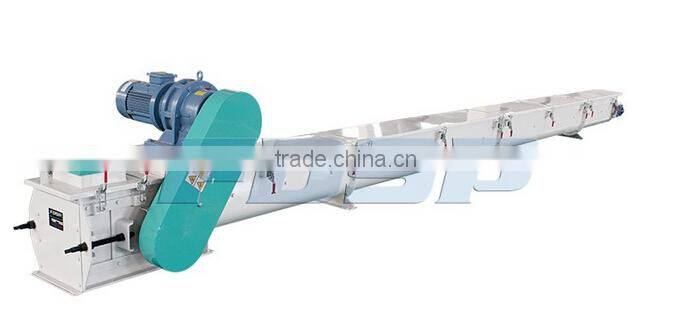

---TGSS Self Cleaning Chain Conveyor

Type	(mm) Trough width	(mm) Chain speed	(t/h) Conveying capacity	(mm) Material layer height
TGSS16	160	0.3-0.5	5-20	220
TGSS20	200	0.3-0.6	10-30	280
TGSS25	250	0.3-0.6	20-50	280
TGSS32	320	0.3-0.7	30-100	340
TGSS40	400	0.3-0.7	50-200	430
TGSS42	420	0.3-0.7	80-250	450
TGSS50	500	0.3-0.75	100-300	540
TGSS63	630	0.3-0.75	200-500	630
TGSS80	800	0.3-0.8	300-800	720
TGSS100	1000	0.3-0.9	500-1000	720
TGSS120	1200	0.3-0.9	800-1350	720
TGSS160	1600	0.3-0.9	1000-2000	720

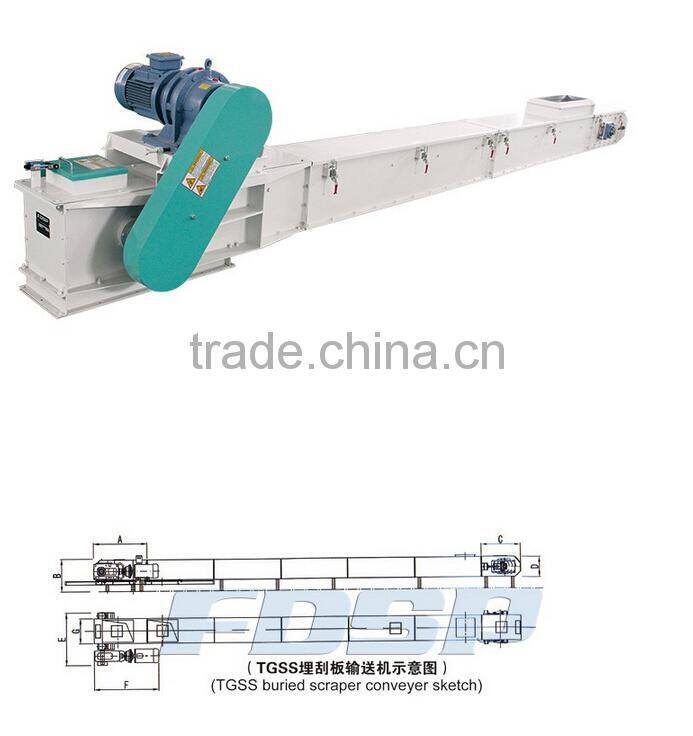

---Picture & Drawing

---TGSU Chain Conveyor (U-Shape)

Type	Trough width (mm)	Chain speed (mm)	Conveying capacity (t/h)	Material layer height (mm)
TGSS16	160	0.3-0.5	4-8	220
TGSS20	200	0.3-0.6	8-15	280
TGSS25	250	0.3-0.6	15-30	280
TGSS32	320	0.3-0.7	30-50	340
TGSS40	400	0.3-0.7	50-80	430
TGSS50	500	0.3-0.75	80-120	540

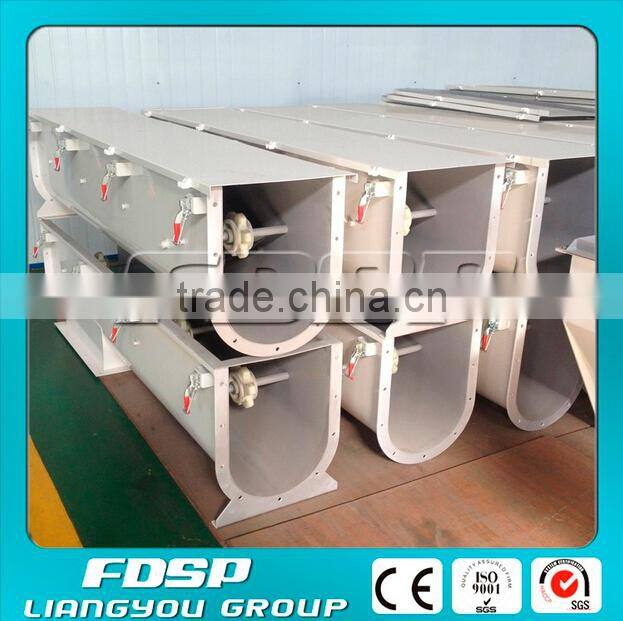

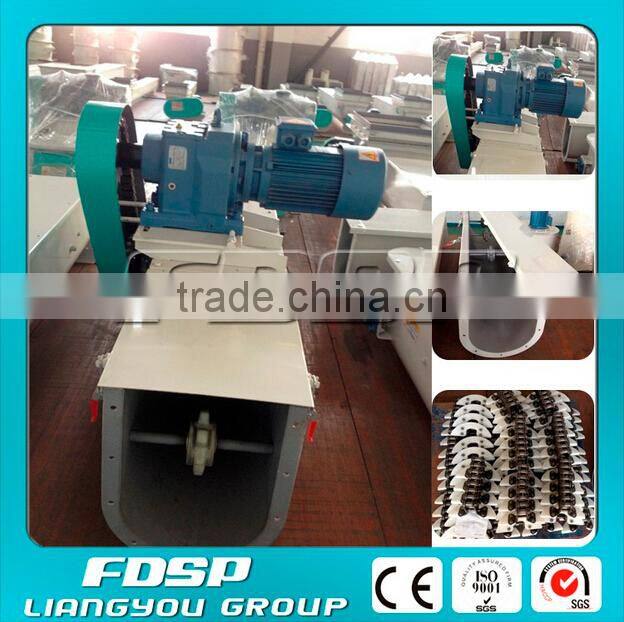

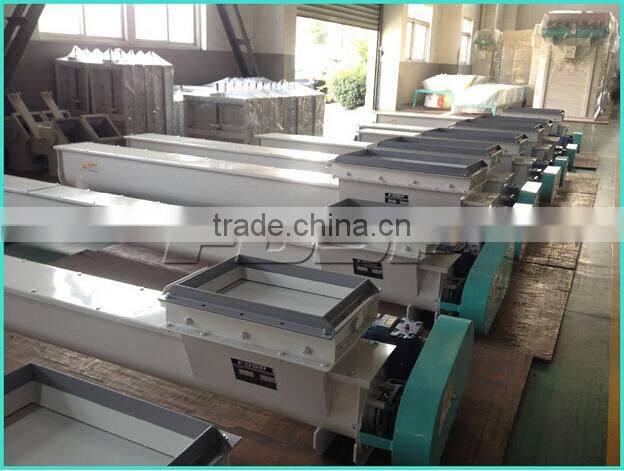

Pictures of En-Masse Conveyor

Other Types of Conveyor Machine

Srew Conveyor Machine
Chain Conveyor Machine
Enclosed Belt Conveyor Machine
En-masse Conveyor Machine

What We can Supply

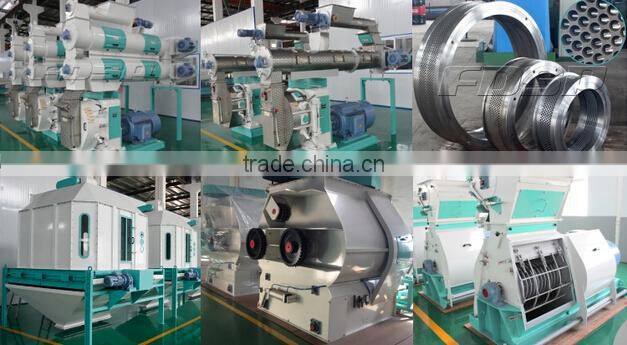

Feed Machinery: Hammer Mill, Mixer, Pellet Mill, Cooler, Crumbler etc.
Biomass Machinery: Wood Chipper, Wood Hammer, Pellet Mill, Cooler, etc.
Steel Silo Equipment

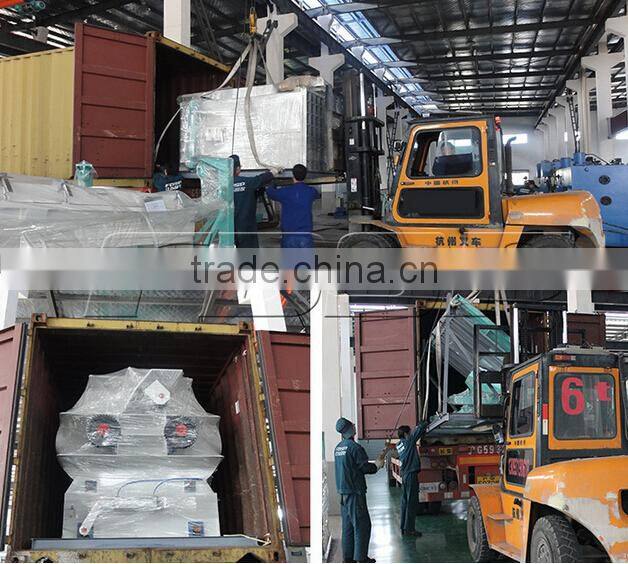

Packing & Shipping

Our Service:

-24 Hours Online Service.

-All-the-way tracking service offered from placing order to delivery.

-Custmoized design for each different customer.
-Professional training for operation, debugging and daily maintenance.
-We can also provide professional guide installation.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.

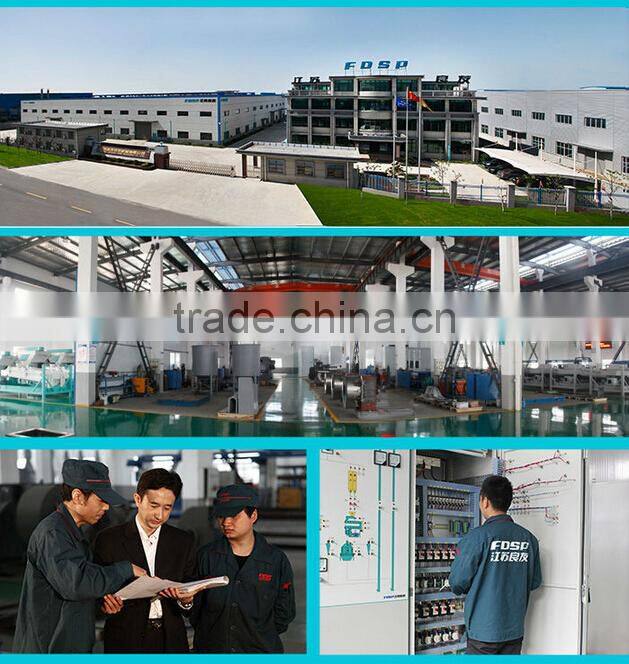

Company Information:

FDSP is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood chipper, packing Machine etc. []
