Long Working Life Straw Pellet Mill Plant Turnkey Project
What material can be produced by Long Working Life Straw Pellet Mill Plant Turnkey Project?
Nearly all forestry and agro waste material can be made into wood pellets by our ring die wood
pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnut shell, Sugarcane Bio gases, Caster
Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard
Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power
plants as well as home heating.
Biomass pellet application:
Brief introduction of complete
1. This serious of complete wood pellet production line are mainly used for making the
wood pellets applies for raw material like wood waste or agricultural waste, such as corn/wheat/ rice straw, coffee/peanut shell, etc. The pellets are used as fuels in electricity-generating and
water –heating in power plant industry, boiler factories, etc.
2. They adopt the imperative feeding device, reinforced conveyed parts, dedicated ring die,
compression roller and hoop.
The main features of Long Working Life Straw Pellet Mill Plant Turnkey Project
1. The main drive of our complete wood pellet production line adopts the high accuracy
gear driving, so the output is 20% more than the belt drive.It makes gear directly-connecting as
the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more
than the same type machine with belt-convey.
2. It uses the imported bearing and oil seal to make sure the high-efficiency, stable performance
and low noisy of the whole machine.
3. The pelletizing chamber is equipped with air suction cooling system.
4. The feeder of our complete wood pellet production line uses variable-frequency and
variable-speed motor to make sure the good quality of the pellet.
5. Advanced world standard compensatory S-shaped coupling with the structure of novel, compact,
safe, low-noisy and low fault.
6. Feeder, conditioner and chute of our complete wood pellet production line made of
stainless steel with long service life.
7. Our complete wood pellet production line with magnet and over load protection system,
which can protect machine well during production
8. We have different bore diameter of the ring dies for your choice. And the feeder is with a
variable speed controlled to meet different outputs requirements.

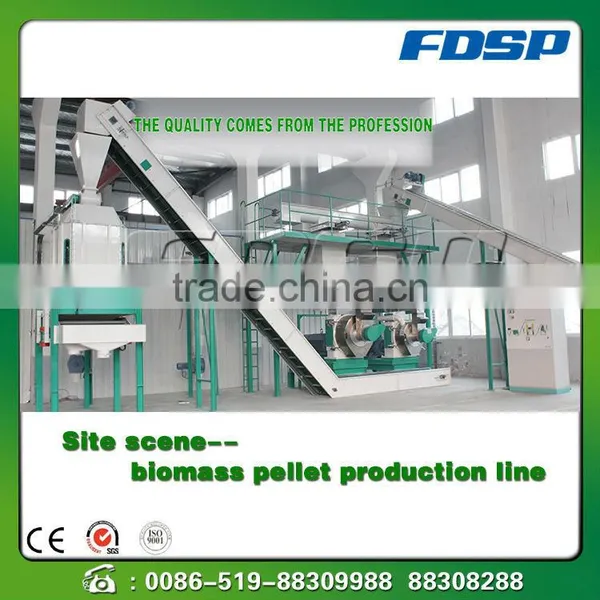

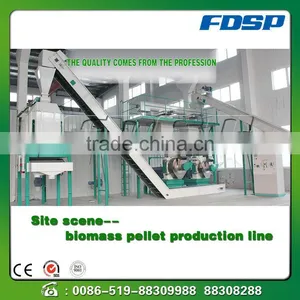

Insite of biomass pellet complete production line:
Details of main equipment - biomass pelletizer:
Main technical parameters of biomass pelletizer:
Model |
MZLH420 |
MZLH520 |
MZLH680 |
MZLH780 |
Capacity(T/H) |
0.8-1.2 |
1.5-1.8 |
2-2.5 |
2.5-3.5 |
Main motor power(kw) |
75/90 |
110/132 |
160/185 |
200/220 |
Feeder power(kw) |
2.2 |
3 |
4 |
4 |
Ring die dia(mm) |
420 |
520 |
680 |
780 |
Pellets dia(mm) |
6-8 |
6-8 |
6-8 |
6-8 |

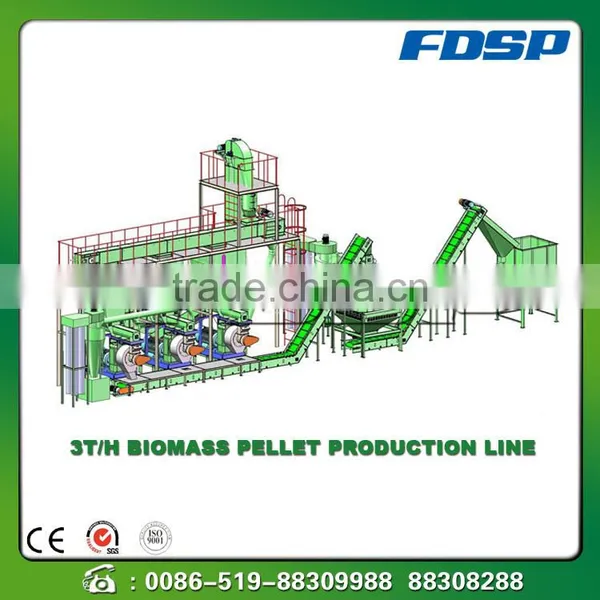

Main equipments of complete biomass pellet production line:
Detail quotation solutions for you, we need to know information as follows:
(1). What capacity would your prefer?
-----The Capacity Range of Wood Pellet Machine: 0.8-1T; 1.5-2T; 2-3T; 3-4T.
(2). What is your raw material?
-----According to different raw material(such as hard wood, soft wood, straw, rice hust), capacity
is different.
(3). What is your raw material size?
-----Best size for pressing high quality pellets is 3mm-5mm.
(4). What is the moisture of your raw material?
-----Better to be 10-15%. ( If large than this, then we will recommend your Dryer Machine)
(5). Final Pellets Size?
-----We have Diameter for Pellets: 6mm, 8mm, 10mm, 12mm,
(Different Diameters for your Different Requirement.)
------Pellets Length: Adjustable20-50mm. (Normally our clients ask pellets length of 33mm,
between 30-36mm)

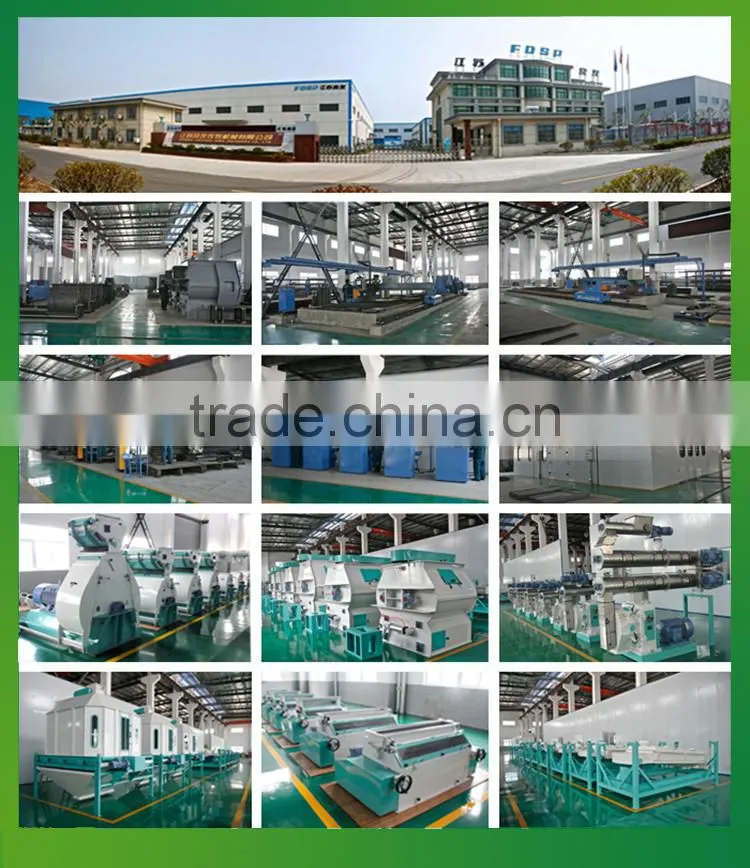

Company view:
Gold service:
Our honours:

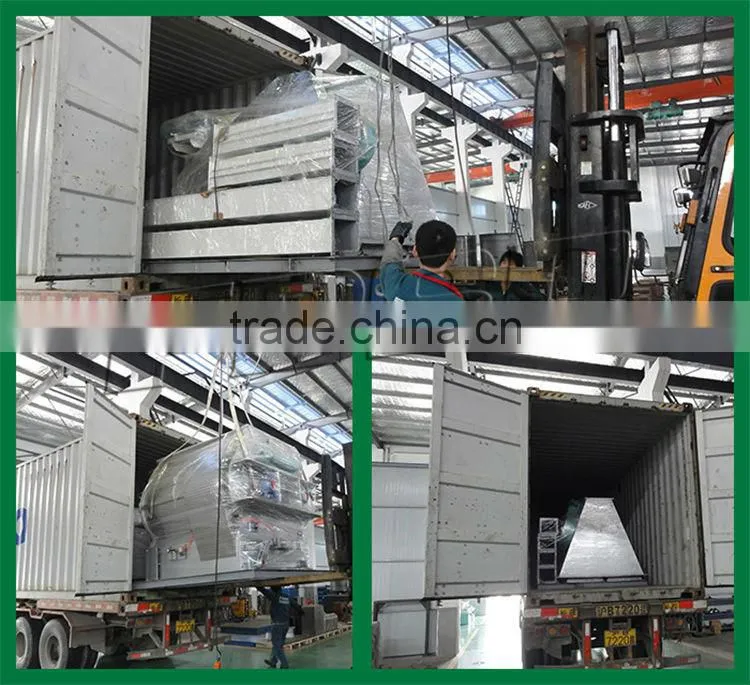

Packing and delivery:
