Specifications
Hammer Mill:1.High efficiency;
2.Hammer qty:24 pcs;
3.Simens motor;
4.CE,ISO,SGS approved
2014 New Type Automatic Continuous Hammer Mill Herb Grinder
YDF Series 40,50,65*27,65*55,65*75,65*100,130*55,130*100
Introduction of multifunctional hammer mill
automatic continuous hammer mill herb grinder for wood chip, agri-straw piece, crop husk, grass, hay and other farm biowaste.
Introduction of automatic continuous hammer mill herb grinder :
The series automatic continuous hammer mill herb grinder can crush the wood chips, rice husk, agricultural stalk/straw pieces, shell or grain crops. Meanwhile, the hammer mills can crush the PVC and rubber with water cooling system, so it called the multifunctional hammer grinder.
For the hammer mills, they have the requirement for materials' moisture. Low moisture, the capacity will be higher; wet materials, the capacity will be lower. Generally, the water content of materials less than 15% is best working efficience.

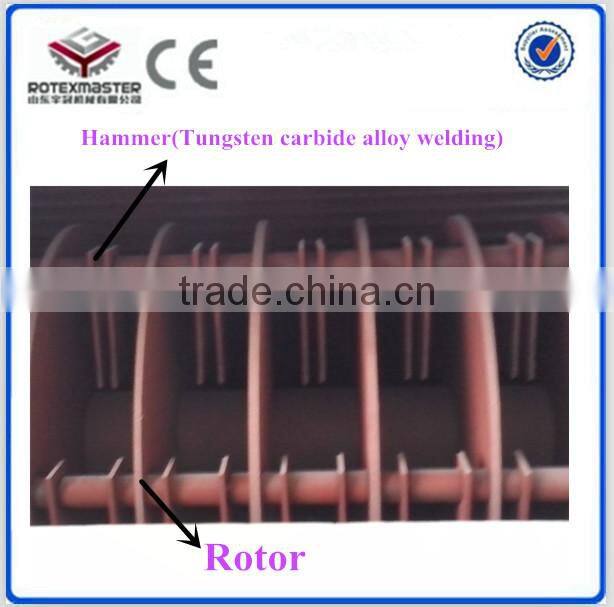

The hammers, sieve and chief axis are processed by heat treatment, then made by CNC system, make sure the high quality and long using time.
The hammer mills are normally with blower, cyclone, airlock as the dust-collecting machines, reduce the dusts during crushing process and keep clean environment.
>Technical Parameters of Hammer Mill with CE
| Model | Power(KW) | Capacity(t/h) | Dimension(mm) | Weight(T) | Hammer Qty |
| YSG40 | 7.5 | 0.2-0.5 | 1310*800*1070 | 0.27 | 12 |
| YSG50 | 15 | 0.6-0.8 | 1380*800*1070 | 0.45 | 16 |
| YSG65*27 | 22 | 0.8-1.5 | 1500*1000*1100 | 1.1 | 24 |
| YSG65*55 | 37 | 1-2 | 1700*1000*1100 | 1.5-1.7 | 48 |
| YSG65*75 | 55 | 2-3 | 2100*1000*1100 | 1.9-2.2 | 72 |
| YSG65*100 | 90 | 3-4 | 2400*1000*1100 | 2.3-2.6 | 96 |
| YSG130*55 | 110 | 5-6 | 2800*1620*2100 | 5.3-5.6 | 80 |
| YSG130*100 | 160 | 7-8 | 3020*1620*2170 | 6.8-7.1 | 160 |

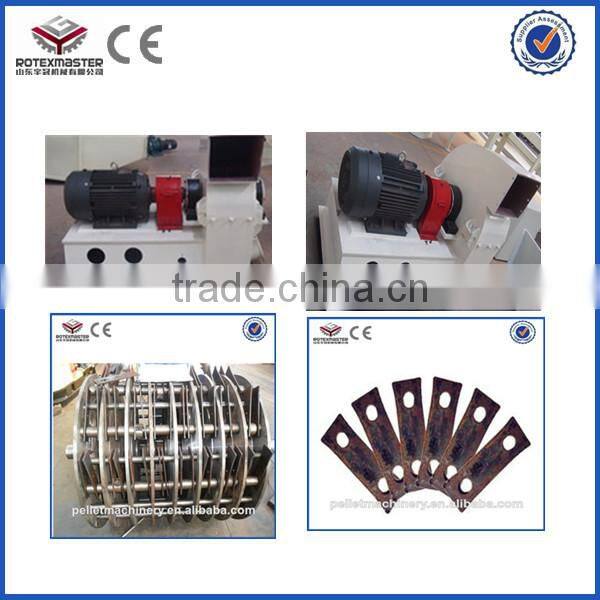

>More Picture Show of Hammer Mill with CE
> Sample made by the feed hammer mill with CE

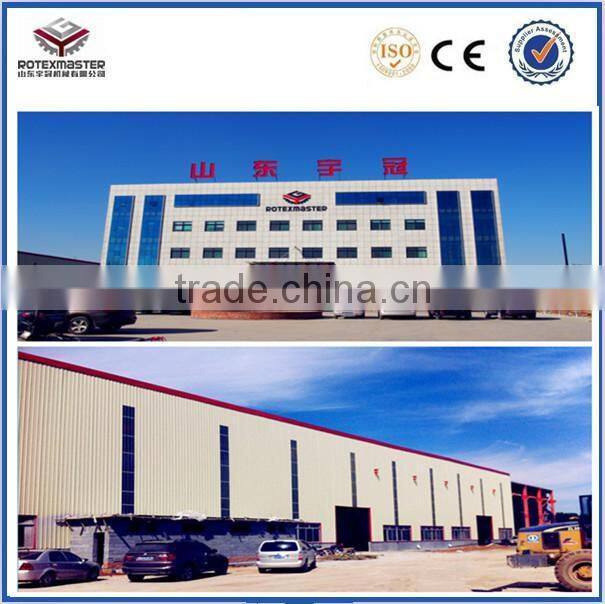

Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development, manufacturing, international trade as a whole, registered capacity is 10 million Yuan, more than 150 staff. Strong technical force, advanced production technology, perfect after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line, organic fertilizer and Municipal Solid Waste processing equipment, agricultural equipment, forestry equipment, etc.
o
>More Certificate of Hammer Mill
1.Guarantee period is one year, since the date of purchasing (with invoice), if there are
failure issues due to manufacturing quality during this one year, factory will be responsible for the maintenance for free. (Die, rollers, bearing, spare parts are not included).
2.If failure or damage caused by the user’s improper operation, our factory will provide
paid services.
3.Users need service, please contact our factory.
4. New drawing and technical parameters will change without notice to the user, please understand.
FAQ
1.Why need to choose right materials use in pellet production line?
Different material has different characteristic, surely their pellet features will be different. Before you establish you pellet plant, you shall make it clear that the heat valve, ash and nitrogen content etc of your pellets suit your target market.
2.As Pellet mill manufacture ,what type of machines are offered?
We offer complete pellet line and many models of Flat Die Pellet mill, Ring Die Pellet mill and Diesel Engine Pellet Mill to meet your wood pellets and feed pellet making requirement.
3.I have a huge supply of wood chips, can I make pellets out of them?
Yes, but you will have to grind them down to a sawdust form, to run through the pellet mill. We sell hammer mills that will do that for you.
4.Is there a formula for making pellets?
It is more of a process than formula, depending on your raw material.
