concrete,cement,coal,mining industry Application and Hammer Crusher Type hammer mill coconut shell crusher

Specifications

Hammer Mill:
1.High efficiency;
2.Hammer qty:24 pcs;
3.Simens motor;
4.CE,ISO,SGS approved

concrete,cement,coal,mining industry Application and Hammer Crusher Type hammer mill coconut shell crusher

                   YDF Series 40,50,65*27,65*55,65*75,65*100,130*55,130*100







>Products Introduction of Hammer Mill

The more cards 40,50,65 vibration hammer mill series is my factory styling products, it is crushed PVC foam board, rubber and all kinds of straw, weeds and wood chips, the best equipment, the series structure is reasonable, durable, safe and reliable operation conveniently. Slight vibration, high efficiency, mainly used for feed mills, farms, organic fertilizer factory. Chinese herbal medicine, and chemical. Deeply welcomed by the general customers.



>Advantages of Mammer Mill

(1)The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.

(2)Unique feeding design, the feeding inlet is made at the side of the device to make feeding easily.

(3)The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.

(4)Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.



>Technical Parameters of Hammer Mill

Model	Motor Power    (kw)	Capacity    (t/h)		Dimensions       ( mm)	Hammer   Qty    (pcs)
YDF40	7.5	0.2-0.5	1310*800*1070		12
YDF50	15	0.6-0.8	1380*800*1010		16
YDF65*27	22	0.8-1.5	1500*1000*1100		24
YDF65*55	37-45	1-2	1700*1000*1100		48
YDF65*75	55-75	2-3	2100*1000*1100		72
YDF65*100	90-110	3-4	2400*1000*1100		96
YDF130*55	110-160	5-6	2800*1620*2100		80
YDF130*100	160-220	7-8	3020*1620*2170		160



>More Picture Show of Hammer Mill

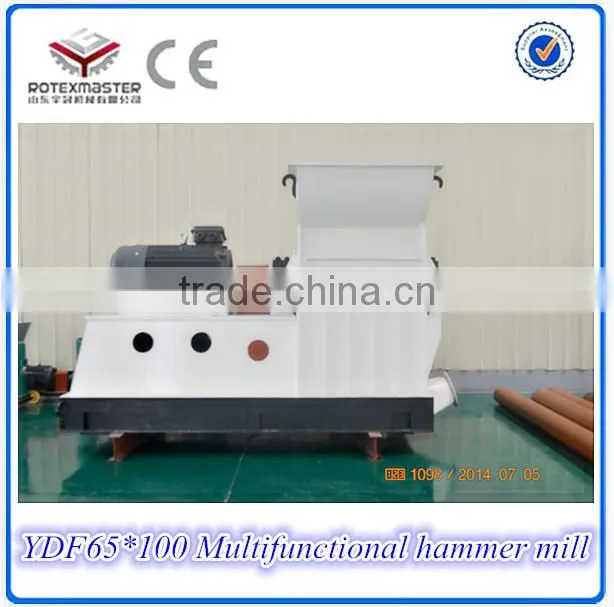

 >Complete Set Hammer Mill

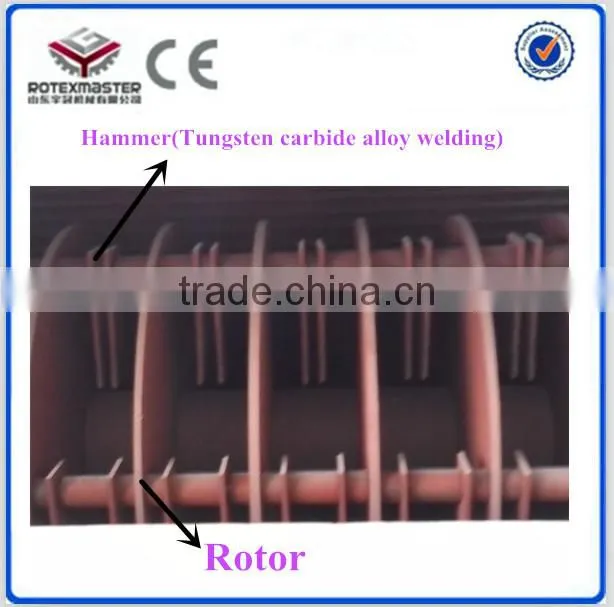

 >Rotor and Hammer ,Stronger,Powerful and High Quality



 >Finished Products Made by Hammer Mill

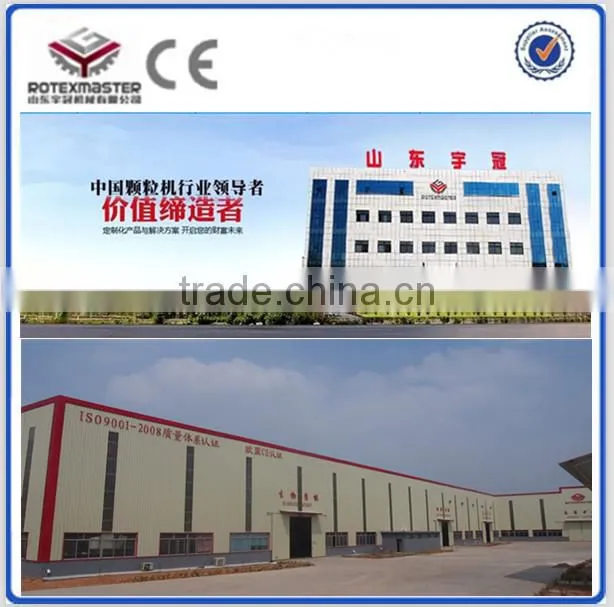

>Welcome to Visit Our Company





Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,manufacturing,international trade as a whole,registered capacity is 10 Million Yuan,more than 150 staff.Strong technical force,advanced production technology,perfect after-sales service.Mainly produce:biomass fuels pellet production line,feed pellet production line,organic fertilizer and Municipal Solid Waste processing equipment,agricultural equipment,forestry equipment,etc.

>Our Workers Take Part in Thailand Exhibition



 >More Certificate of Hammer Mill





 >After-sales Service





"Customer-oriented": providing customers with whole considerate services;

"Service as core": providing the most suitable products to customers;

"Quality-centered":All-round services to every customers!

"Technical support":on-site technical training and technical advice available.
