Specifications
1)Metal mesh structured packing2)High quality and reasonable price
3)Ontime delivery
4)One-stop service
5)ISO9001:2008
metal sturctured tower packing:
It is the important milestone of the development of structured packing. It is made up from silk screen tablets with bellows and this bellows tablets have 30° or 45° inclination. Adjacent bellows tablets are in opposite directions. When being filling in the tower, the filler from top to bottom is arrayed with staggered stacked. It has some advantages such as high efficiency, low pressure drop and big flux. It has two models: BX and CY. It is applied to vacuum distillation for difficult separation and thermal material. Also it is applied to atmospheric distillation and absorption process.
metal sturctured tower packing Features:
1)High free volume, large void space;
2)low pressure drop;
3)Top mass transfer performance
4)High floating point;high separation efficiency.
5)Excellent corrosion and heat resistance
6)Easy to install or remove. Recyclable
metal sturctured tower packing Application:
It's available for Distillation, Gas absorption, Deabsorption systemAnd it is widely used in petrochemical industry, chemical industry and environmental protection, etc..
metal sturctured tower packing Material:
carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.
metal sturctured tower packing Technical data
Model |
Wave height mm |
Surface area M2/m3 |
Theoretical plate I/m |
Void volume % |
Pressure drop MPa/m |
F factor M/s(kg/m3)0.5 |
CB700Y |
4.5 |
700 |
5-7 |
85 |
9.3*10-4 |
1.6 |
CB500Y |
6.3 |
500 |
3-4 |
93 |
2.3*10-4 |
2.1 |
CB250Y |
12 |
250 |
2.5-3 |
97 |
3.0*10-4 |
2.6 |
metal mesh structured packing
Working flow:
Product picture:

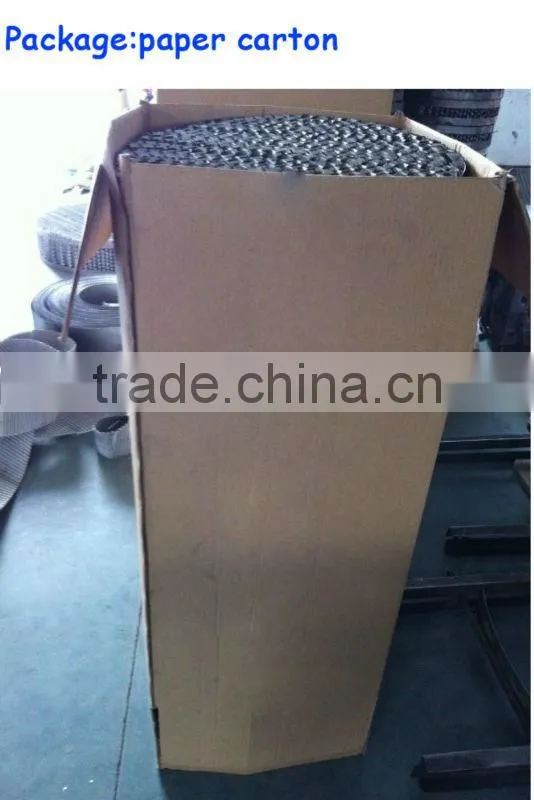

Package:
Welcome to inquiry!
