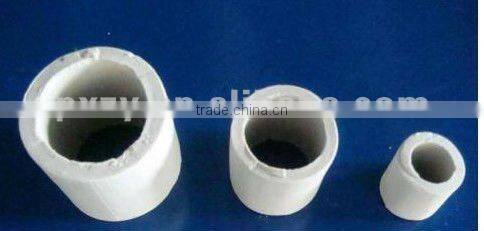

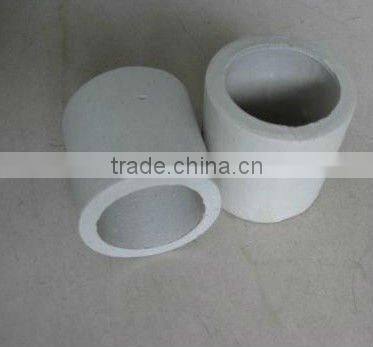

Filter Media Ceramic Ring
US$ 360 - 1,500
/ Cubic Meter
1 Cubic Meter(Min. Order)
- shanghai shengzhen or any port you need
- T/T L/C D/P D/A Credit Card
You May Like
-
High Purity Ceramic Lined Ball as a Wear Liner
-
Colorful Negative Ion Ceramic Ball for Health Drinking Water Filter
-
China Good Quality Clay Ball for Hydroponics,flower Decoration and Plant
-
Ceramic Ball With Hole&New Inert Ceramic Ball
-
High Quality Cheap Hot Sales Ceramic Ball
-
High Quality Cheap Hot Sales High Alumina Ceramic Ball
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Cascade Ring | Brand Name | zy |
Product Description
Specifications
Ceramic Rasching Ring is a traditional packing with simple shape and the outside diameter is equal to the height.
Ceramic Rasching Ring
Performance features and uses:
Ceramic Rasching Ring is a traditional packing with simple shape and the outside diameter is equal to the height. The large size of the Rasching ring (above 100mm ) generally use the entire masonry filling, the size below 80mm generally use the random packing.
Technical data of the Ceramic Rasching Ring:
| | Specification (mm)
| Diameter* Height* Thickness | Surface area (m²/m³) | Void space | Number per m³ | Bulk density (kg/m³) | Packing factor |
6 | 6*6*2 | 789 | 73 | 3110000 | 737 | 2030 | |
10 | 10*10*2 | 440 | 70 | 720000 | 700 | 1280 | |
15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 | |
16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 | |
25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 | |
| | 40 | 40*40*5 | 136 | 75 | 12700 | 577 | 305 |
50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 | |
80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 | |
100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 | |
150 | 150*150*15 | 50 | 68 | 295 | 790 | 142 | |
Note: The above data is for reference only.. | |||||||
