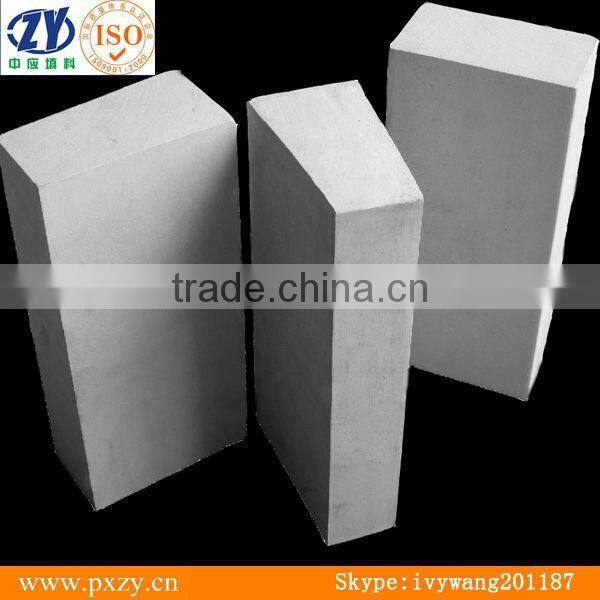

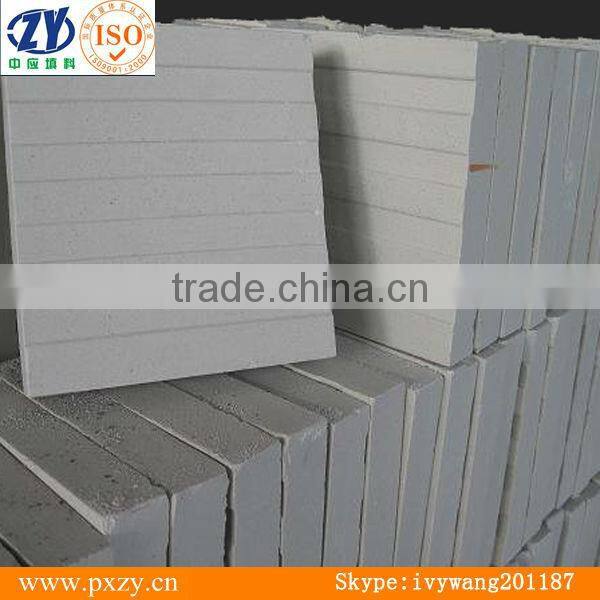

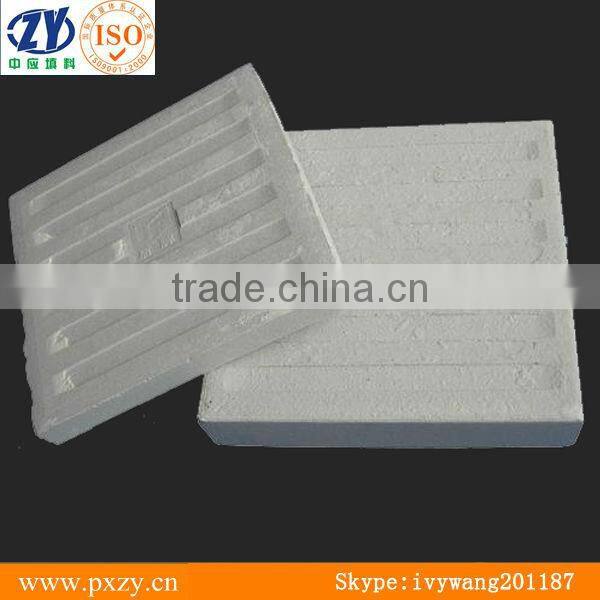

Acid Resistant Tiles

Acid Resistant Tiles thumbnail-1
Acid Resistant Tiles photo-1
US$ 800 - 1,200 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Plates
Application:
Industrial Ceramic, Industry ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai and any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Plates
Model Number X256
Brand Name ZY

Specifications

1)20 years professional manufacture
2)Acid Resistant Tiles
3)Ontime delivery
4)One-stop service
5)ISO9001:2000

Ceramic acid resistance brick



They are widely used in reaction tanks, towers, troughs and ponds in metallurgical and chemical processes as equipment linings. They are the special materials that can resistant high temperature, fast cooling and strong acid corrosion.



Main technical data





Item

Unit

Index

Measurement standard



Volume density

G/cm3

2.31-2.4

ZBG94003-86



Water absorption

%

<0.2

GB/T8488-2001



Acid resistance

%

≥99.8

GB/T8488-2001



Bending strength

Mpa

>42

GB/T8488-2001



Compression strength

Mpa

>120

ZBG94003-86



Heat stability

130°C-20°C

Three times do not crack

GB/T8488-2001












Remarks: Any technological index can be made as user requires.



Chemical composition

Composition

SiO2

AI2O3

K2O

Na2O

CaO

MgO

Fe2O3

Burning loss

Acid resistance

Content(%)

69.8

22.5

2.7

0.95

0.82

0.12

0.49

0.54

99.8



Main specification

Name

Specification(mm)

Name

Specification(mm)

Standard brick

230*113*65

Anti-acid ceramic plate

100*100*15

Rectangular brick

230*65*65

Anti-acid ceramic plate

150*150*15-30

Horizontal wedge brick

230*113*55/65

Anti-acid ceramic plate

150*75*15-30

Horizontal wedge brick

230*113*25/65

Anti-acid ceramic plate

100*100*10-30

Vertical wedge brick

230*113*55/65

Anti-acid ceramic plate

80*80*10

Vertical wedge brick

230*113*25/65

Anti-acid ceramic plate

50*50*10





Anti acid brikds, Acid Resistant Tiles





Acid Resistant TilesAcid Resistant TilesAcid Resistant Tiles
