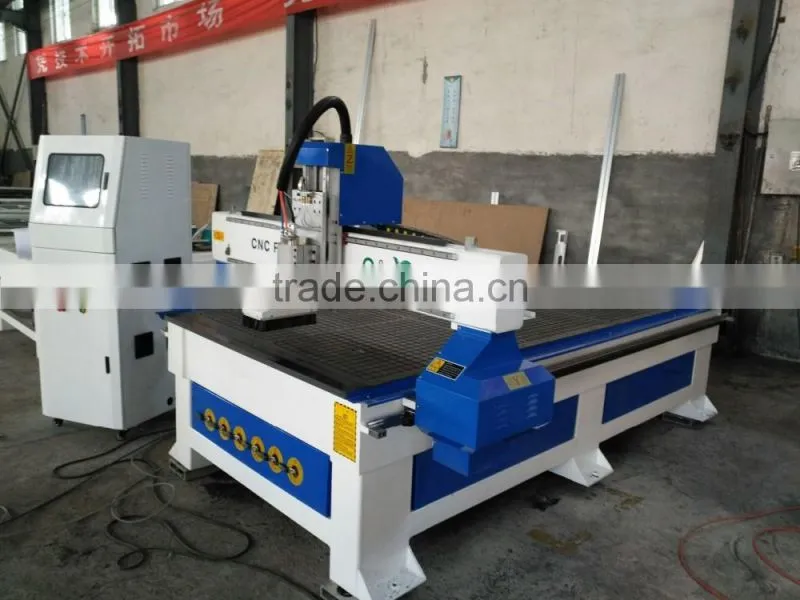

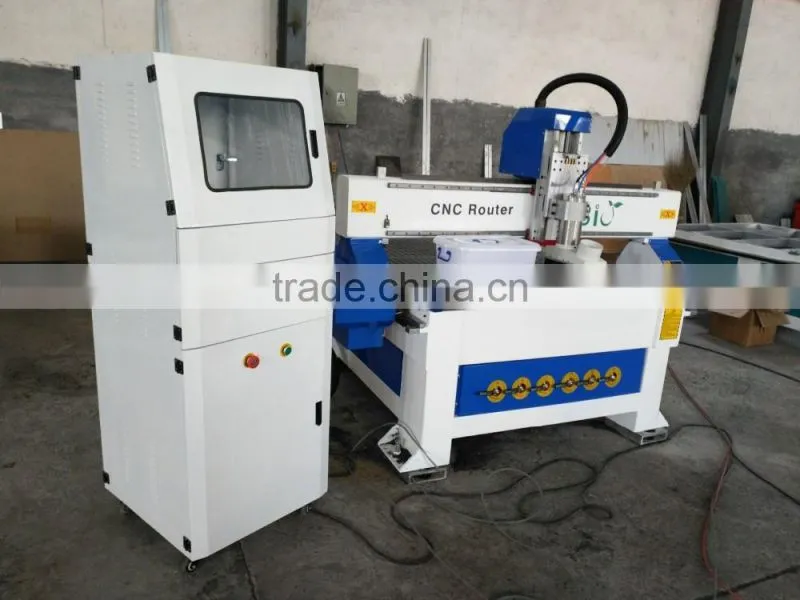

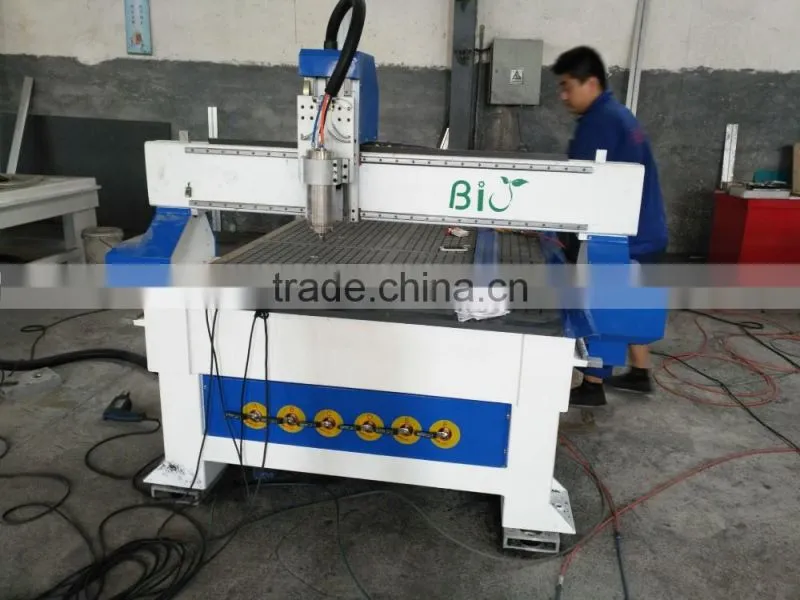

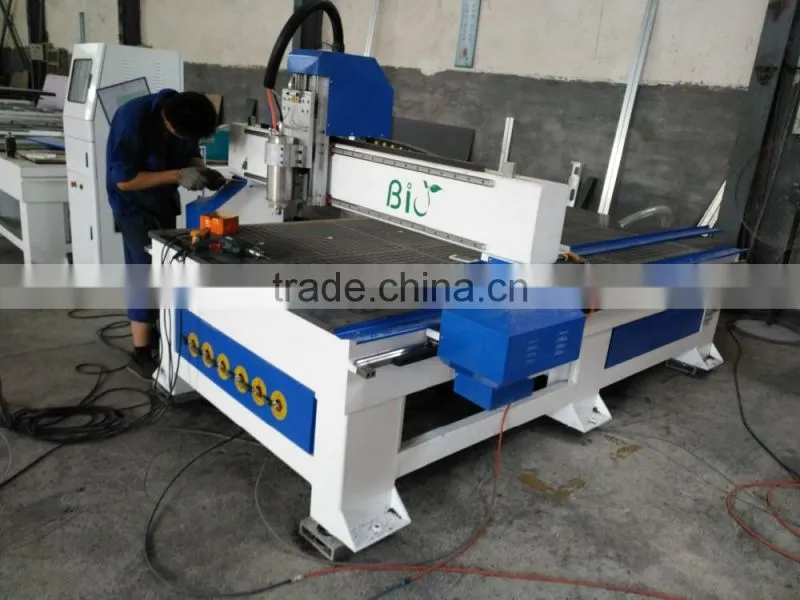

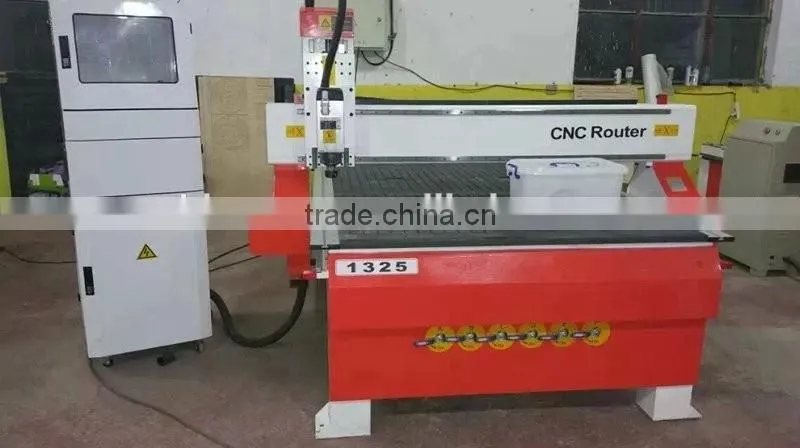

Wood router cnc cutting machine
1. Application
Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving.
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and decorative products making.
2. Application materials
MDF, wood, plywood, solid wood, PVC, acrylic, double-color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and other materials.
3.Models of Jinan Bio 1325 3 axis cnc milling machine
BIO1325, BIO1530,BIO2030, BIO2040, Linear ATC CNC Router, Cylinder ATC CNC Router, etc.
4. Main features
1). The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing strength, processing jitter low.
2). Machine 3 axis adopt linear guide rail, double class four row ball slider, operating smoothly, high accuracy, durable.
3). XY axis adopt super-modulus gear with high speed and accuracy. At the same time, Z axis use imported ball screw, high precision, lower knives accurately
4). Adopt high-speed stepper motors and drivers. Two motors for Y axis make machine operating more sable and higher accuracy. Japan servo motors and drivers are optional.
5). 3.0KW/5.5KW water cooling spindle match with domestic well-known brand of high power water-cooled frequency conversion brushless motors, small noise, strong and free maintenance, continuous working. Italy HSD spindle is optional.
6). T-slot aviation aluminum working table covered PVC protects the tools from breaking. T-slot with clamps makes it convenient to fix the material. Vacuum table is optional.
7). T-shape dragon gate makes 3 axis working stable, high speed and accuracy. Dragon gate moving, customer can work on any area of the material.
8). Optional control system, RichAuto/NcStudio/DSP/Mach3, high stability, high efficiency, easy to learn.
9). Continuing working after the break point/power failure, lower the rejection rate.
10). Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such as CAD/CAM software, 2D/3D processing,more convenient to using.
ABOUT THE MACHINE DETAILS:
1) spindles air-cooling ot water ait-cooling.
2)Aluminum alloy working table
3)Mach 3 controller system
4)Artcam(English version)software
5)Taiwan Hiwin aquare linear guide rail
6)450B steeper motor and leadshine 860 driver;
7)One box cutter tools(10 pieces);
8)Software compatibility support:CAD/CAM Software ,PLT Format,Corel Draw,AutoCAD;
9)Command Language:English version,Windows 98/2000/XP Operation System.
10)Operational software:Type3,ArtCam software or Wentai Software.
Technology parameter
Working Area(X*Y*Z): |
1300mm*2500*230mm |
Feeding Height |
230mm |
Resolution |
0.025mm |
Spindle |
3.0 KW |
Max Moving Speed |
50000mm/Min |
Spindle Speed |
6000-24000rpm. |
Tool Diameter |
3.175mm, 6mm,12.7mm |
Voltage |
AC380V/50HZ |
Working Dictate |
G Code |
Transportation |
X Y Axis Gear, Z Axis Imported Ball Screw. |
Control System |
DSP |
Wood cnc router working video:
Samples
1.Before delivery,we should chack the machine withraw materials,make the machie working video sent to our customer,until customer satisfied with our machine,they can pay the balance,we will arrange the loading details.
2.After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days or so and we will notify you of the exact phase of production process.
3.Small models normally pack with wood case,and the more machines will pack with full container.
Related Products
|

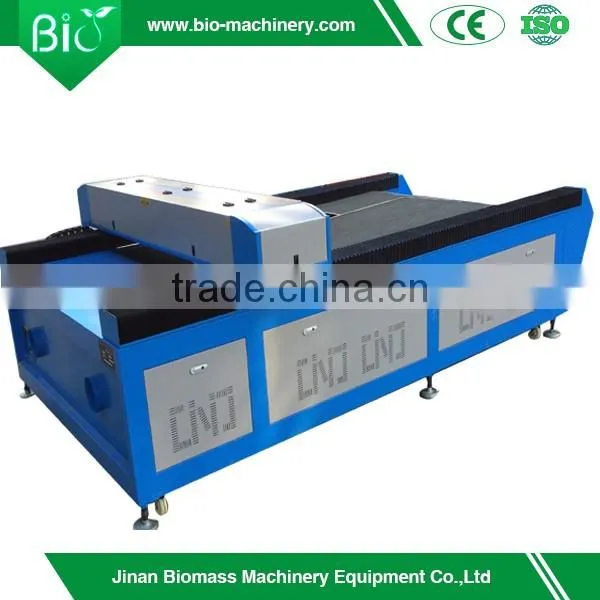

Laser cutting machine |
