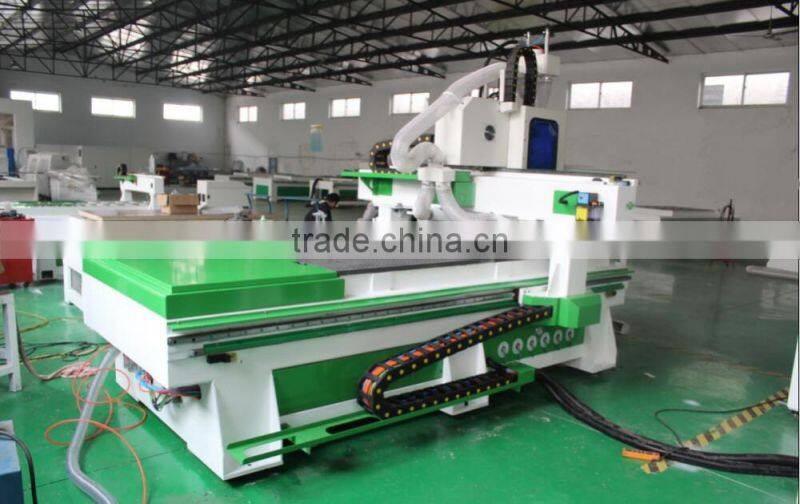

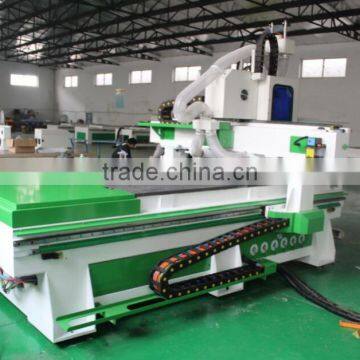

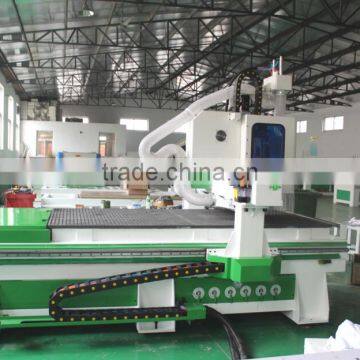

Wood door cnc router 1325 model,it can work on wood,wood board,MDF and others wood raw materials.
Application scope.
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plasDrive Motorsboard, PVC sheet, dual color board, aluminum, etc.
CE certificate.
Technical parameters.
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | Vacuum absorption working table with T solt |
5 | Frame | Whole steel structure |

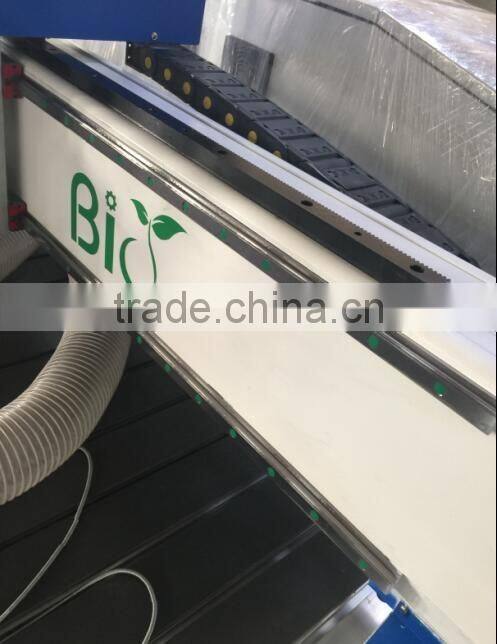

6 | X, Y Structure | Taiwan Hiwin linear guide block |
7 | Z Structure | Taiwan Hiwin Rail guide Linear and high precision ball screw. |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 4.5kw Italy Spindle air cooling spindle |
12 | Spindle Speed | 0-24000RPM/18000rpm (For Italy spindle) |
13 | Drive Motors | Servo Motor &driver |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | DSP System (Options: Mach3/Ncstudio/Taiwan SYNTEC) |
17 | Computer Interface | USB |
18 | Flash Memory | 512M(U Disk) |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/Artcam Software(option: Ucancam) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Machine weight(T) | 1500kgs. |
25 | Machine Size(mm) | 3100*2500*1700mm |
1.24hours on line service.
2.before buying engrave the sample for clients.
3.Machine finished,aleast working 48 hours in our factory then can arrange delivery.
4.Different work size we also can make for you,like 600*900mm,1200*1200,1300*1800,....2000*4000mm,3000*1500mm..
5.Machine parts shows

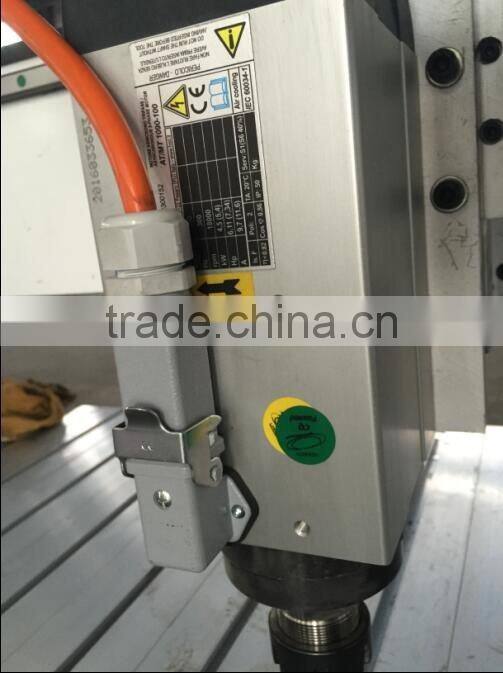

4.5KW ITALY HSD AIR COOLING SPINDLE

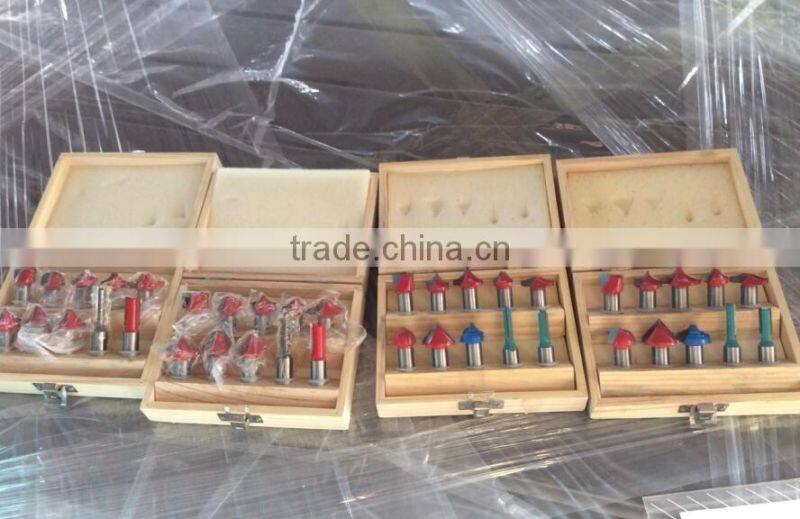

CUTTER TOOLS

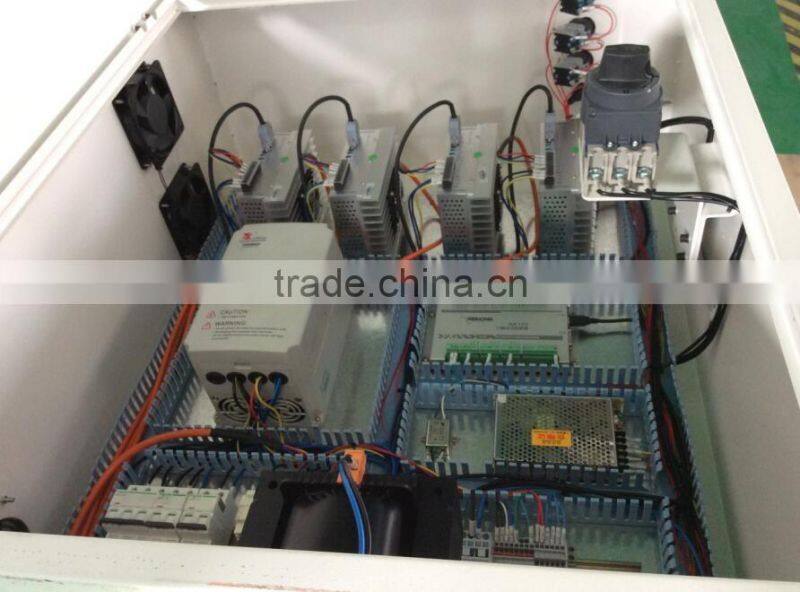

Electric control cabinet
Different device,different design based on your budget for your selection,
