35A 1000V KBPC 3510 Bridge Diode Bridge Rectifier

Model NO.: KBPC3510

Material: Element Semiconductor

Signal Processing: Analog Digital Composite and Function

Model: Kbpc3510

Brand: DHJL

Origin: Jiangsu China

• Manufacturing Technology: Optoelectronic Semiconductor
• Type: Intrinsic Semiconductor
• Application: Refrigerator
• Ampere: 35A
• Polarity: as Marked
• Lead: Solder Plated
• Specification: RoHS
• HS Code: 85411000

We are specialised in designing and manufacturing diodes and bridge rectifiers. If customers require, we can also offer OEM service according to customer's requirement.

We provide wide products lines, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive diodes, etc. The major application industries cover automobile, computer,consumer appliances, telecommunication ,etc.


Advantage
1)ISO9001, RoHS
2)As manufacturer, have high quality low price
3)15 years Professional Technical
4)warranty period: 18months
5)good after-sale service

Single phase bridge diode bridge rectifier

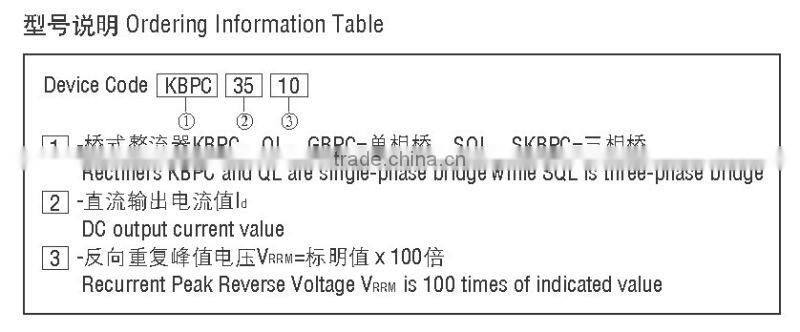

KBPC3510 KBPC3506 kbpc5010 kbpc5006
QL50A QL30A QL40A QL60A QL100A QL200A QL150A QL300A

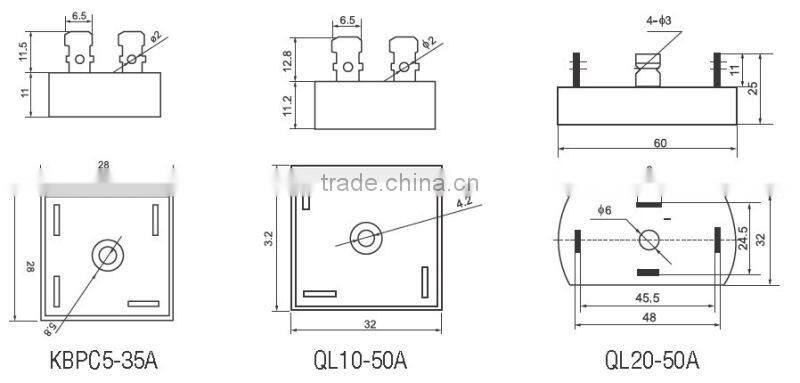

Mechanical Data

• Case :           Metal case.
• Terminals:   Lead 0.25"(6.35 mm) diameter.
• Polarity :      Polarity symbols marked on case.
• Mounting position :  Thru hole for #8 screw,5in.-lbs.torque max.
• Weight : 1.02 ounce, 29 gram.
•

Typical Applications
Rectifier current
Industrial automatic control
Digital-controlled machine and remte control system
