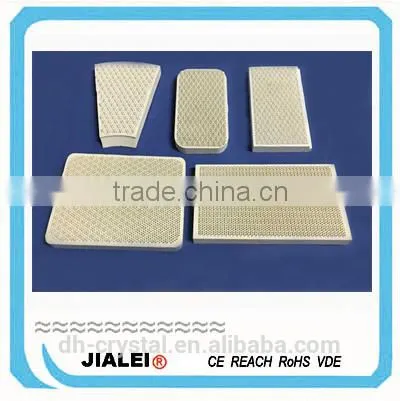

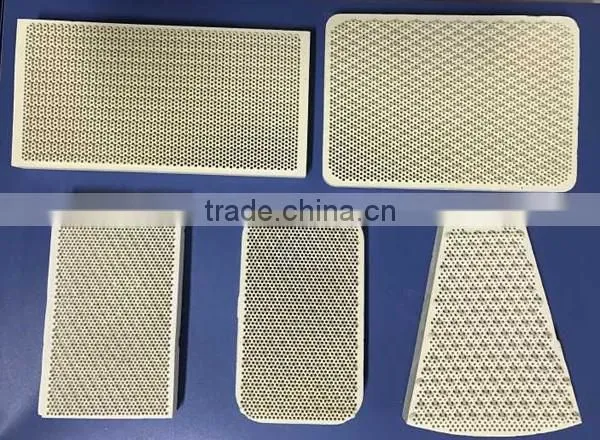

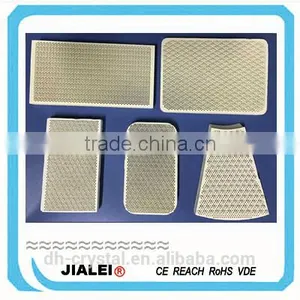

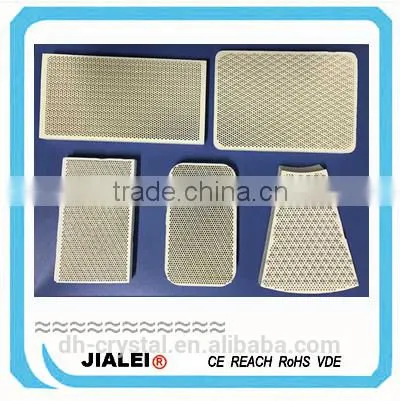

Infrared Honeycomb Ceramic Plate
CS Ceramic Infrared Honeycomb Ceramic Plate for Gas Stove/Burner/Heater has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating condition.
Item |
Index |
Specifications |
Materials |
Cordierite |
We can provide you |
Water absorption |
50.4% |
|
Open Porosity |
61% |
|
Specific gravity |
0.9-1.10Kg/cm3 |
|
Thermal expansion coeffecient |
1.5-3(×10-6K-1) |
|
Temperature softening |
>1280 |
|
Cooking Surface Temperature |
1000-1200 |
|
CO Release |
≤0.006% |
|
NOx Release |
≤5ppm |
Sample Dimensions (mm) |
Shape |
Square (LxW) |
<200×140 |
Round (Diameter) |
50--200 |
||
Thickness |
11--15 |
||
Hole Diameter |
1.1--1.8 |
||
Holes Interval |
2--2.1 |
||
