Help CenterCeramic Heating Plate Circular Square or Quadrate and Heating Resistors Heating Element
Related Products
infrared quartz heater element/ infrared quartz heating element
Quartz heater: 1) 122 x 62 x 25mm, 122 x 120 x 25mm, 248 x 62 x 25mm, 248 x 120 x 25mm, 306 x 306 x 25mm2) Sizes according to customers' requirements With CE certificate
You can check detail at our website . and add us at MSN on our website, then we
can talk on line freely.

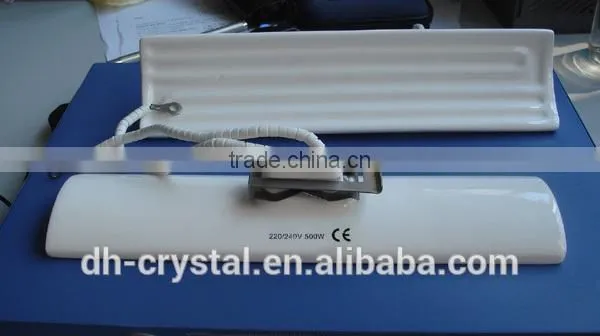

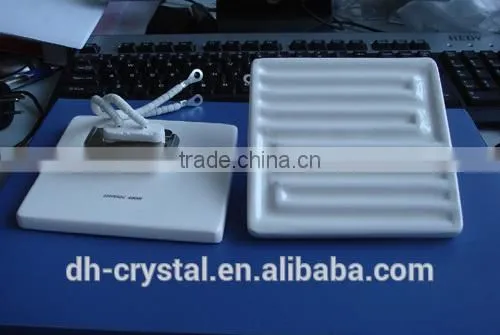

Infrared Ceramic Heating Element
Electric ceramic elements are efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying.
They are also used very effectively in infrared outdoor heaters and infrared saunas. Most plastics and many other materials absorb infrared wave best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Technical parameter
- Nickel chrome resistance wire(NiCr20/80)
- Type K thermocouple mounted internally in center heater. Type J is also available.
- Voltage: 120V 220V 230V 240V 380V
- Useful wavelength range: 2-10 microns
- Operating temperature is 300°C to 700°C (572°F - 1292°F)
- Average Operating Life-Up to 20,000 hrs depending on conditions.
- Recommended radiation distance from heater is 100 mm to 250 mm.
- It is heated up to 800C, put in cold water repeatly for ten times and no cracking.
Specifications
Size(mm) |
Type |
Color |
Power |
60 x 60 |
Curved/ Flat/ Hollow |
White/ Black/ Yellow |
125w - 250w |
122 x 60 |
Curved/ Flat/ Hollow |
White/ Black/ Yellow |
125w - 500w |
122 x 122 |
Flat/ Hollow |
White/ Black/ Yellow |
150w - 750w |
245 x 60 |
Curved/ Flat/ Hollow |
White/ Black/ Yellow |
150W - 1000w |
245 x 80 |
Curved/ Flat/ Hollow |
White/ Black/ Yellow |
150w - 1000W |
Application
drying, sauna, vacuum forming, solidify, medical treatment sanitation, BGA rework station, etc.
It has perfect saving energy effect in electron, textile, light industry, chemical, medicine, food industry etc, has obvious social profit and economy profit.
Lianyungang Jialei International trade Co. Ltd
Company Overview
Lianyungang Jialei International Trade is a comprehensive company integrated in the production and export of infrared heaters, heating elements and quartz products. our companies focus our innovations on energy efficiency and resource conservation. Our product range covers:
- Infrared carbon heaters
- Quartz products such as tubes, plates, rods and silicaware
- Heating lamps such as carbon fiber, halogen and metal
- Heating elements such as ceramic and quartz
- All kinds of salts such as sodium chloride, sodium hydrosulfite and calcium carbide
Compliant with International Standardsc
Each year we can turn out up to 500,000 heaters, 500 tons of quartz tubes and 5 million heating lamps. For your assurance, our three factories are ISO 9001:2008-certified and our products have CE, RoHS and REACH marks.
Worldwide Sales Market Coverage
Due to our high quality, steady performance and good after-sales service, 80 percent of our products are exported to Europe, the US and Southeast Asia.
If you have any requirement or question, please feel free to contact with us.
