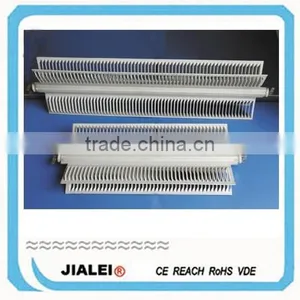

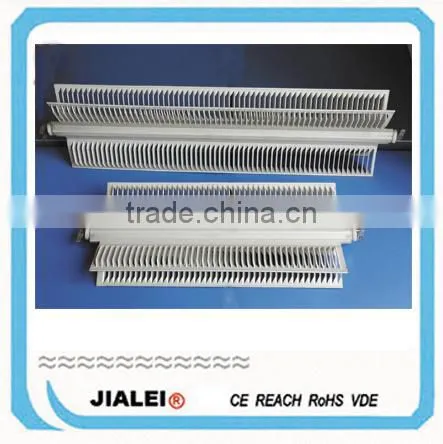

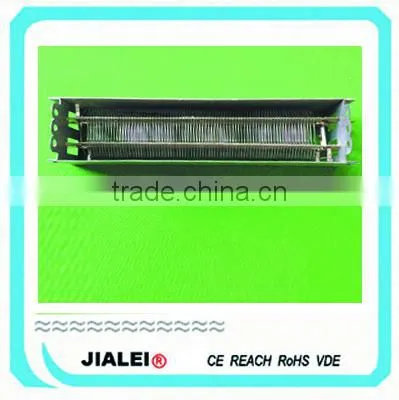

x-shape convector heating element for convector convector Aluminum
Specification:
Hi-pot test: 1800V/2mA/1S
Insulation resistance(cold air addition): 100MΩ
Leakage current to be 0. 5mA max While energized at rated voltage
Power tolerance(standard): +5%/-10%
Heating resistance wire: 0Cr25Al5,Cr20Ni80 or as custom'es requirement
Working Temperature Range: 250-450°C
| Tube Material | 6063 Aluminum |
| Tube diameter | 10-16mm |
| Tube wall thickness | 1.2mm |
| watt | 300-3000W |
| voltage | 100V-240V |
| Dimension | customized |
| Warranty | Three years |
| High pop test | 1800V/2mA/1S |
| Resistance insulation | 100MΩ MIN |
| Leakage current | 0.5mA MAX |
| Surface treatment | original color/sand blasing/black coating |
| Working temperature | 250-450 degree |
| Life time | 3600 hours(standrad) |
| Mounting bracket | with or without |
Lianyungang Jialei International trade Co. Ltd
Company Overview
Lianyungang Jialei International Trade is a comprehensive company integrated in the production and export of infrared heaters, heating elements and quartz products. our companies focus our innovations on energy efficiency and resource conservation. Our product range covers:
- Infrared carbon heaters
- Quartz products such as tubes, plates, rods and silicaware
- Heating lamps such as carbon fiber, halogen and metal
- Heating elements such as ceramic and quartz
- All kinds of salts such as sodium chloride, sodium hydrosulfite and calcium carbide
Compliant with International Standardsc
Each year we can turn out up to 500,000 heaters, 500 tons of quartz tubes and 5 million heating lamps. For your assurance, our three factories are ISO 9001:2008-certified and our products have CE, RoHS and REACH marks.
Worldwide Sales Market Coverage
Due to our high quality, steady performance and good after-sales service, 80 percent of our products are exported to Europe, the US and Southeast Asia.
If you have any requirement or question, please feel free to contact with us.
