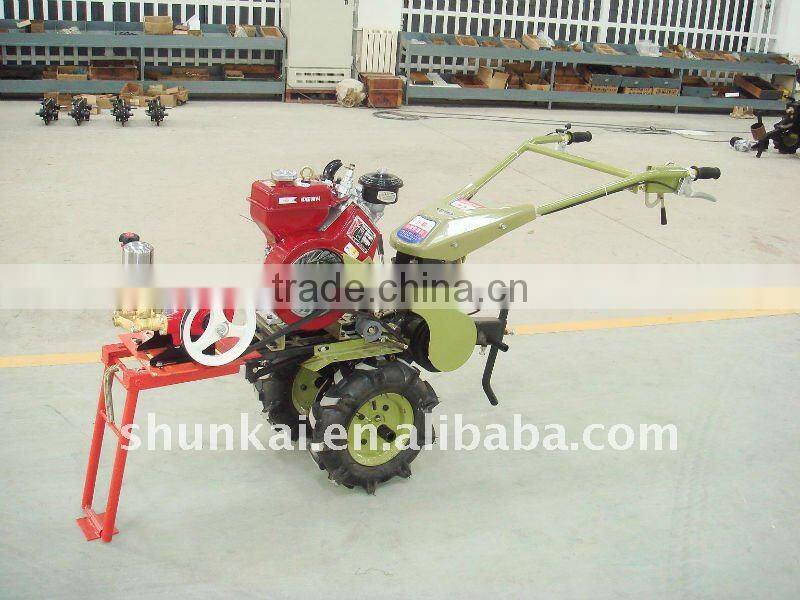

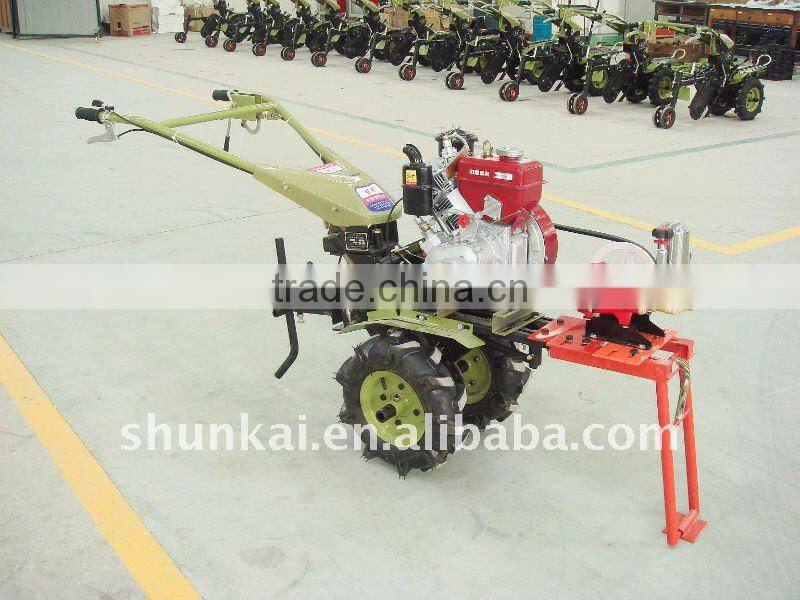

Garden Power Tiller with Power Sprayer

Dimension(mm)L*W*H

1600×570×900 mm

Tilling depth

5—25 cm

Tilling width

40—90 cm

Weight(kg)

95 kg

Engine:

168FA-2 air-cooled  gasoline engine ;4KW/5.5HP;  Max power 6.5HP;  1800r/min;

Clutch model

Belt tensioning pulley /Friction clutch

Main drive

V-belt

Speed control

gear

Start mode

Handle spring starter

speed

(km/h)

Forward shift

high

9.4

low

4.5

Reverse shift

high

6.8

low

3.2

Handle rotating

360^O rotation at 12 position

Handle height adjustment

6 section height adjustment

No of cutters

24 sets

Type model

400-7

No of wheel

2

Packing Quantity

100SETS /1X20FT;

Note: machine equipped with parts

one set of Workbag

Two wheels

one couple of Murder board

cultivator cutter(24pcs)

colors available: green, blue, orange ,red

one copy of instruction
