best price minil loader 910 915 920 with CE joystick Q/H optional many implements
Item |
Specification |
Item |
Specification |
Kerb weight |
3670kg |
Max. speed |
20km/h |
Rated bucket capacity |
0.5-0.9m³ |
DRIVE AXLE |
|
Rated load |
1500kg |
Main transmission type |
Spiral gear, first stage deceleration |
Max. tractive force |
25kN |
TYRE |
|
Max. breakout force |
25kN |
Type specification |
11.00-16 |
Max. gradeability |
30% |
Optional |
12.0-16.5; 14-17.5 |
Max. dumping height |
2645mm |
STEERING SYSTEM |
|
Dumping distance |
976mm |
Type |
Articulated load-sensing hydraulic steering system |
Overall dimension(L*W*H) |
4709*1626*2645mm |
Steering angle |
32° |
ENGINE |
|
Min. turning radius |
4283mm |
Model |
A498BT1 |
HYDRAULIC SYSTEM |
|
Type |
Inline, direct injection, water cooling |
System working pressure |
28MPa |
Rated power |
36.8kW |
Lifting time |
4.5s |
Rated speed |
2400r/min |
Total time |
10s |
Optional |
Cummins B3.3 |
BRAKE SYSTEM |
|
Rated power |
45kW |
Service brake |
Air-over-hydraulic shoe-type |
TRANSMISSION SYSTEM |
|
Parking brake |
Manual disc brake type |
Hydraulic torque converter |
Single-stage three-element hydraulic torque converter |
FILL CAPACITY |
|
Type of gear box |
Axis-fixed, double reduction |
Fuel |
51L |
Gear shift |
2 forward shift, 2 reverse shift |
Hydraulic oil |
68.6L |
best price minil loader with CE joystick Q/H optional many equipments
WITH CABIN AND GRASS FORK
WIND BUCKET

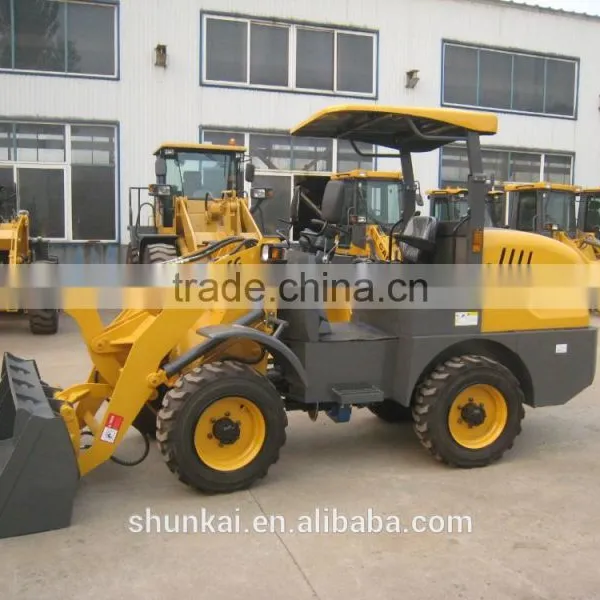

SIDE AND BACK VIEW
JOYSTICK AND QUICK HITCH
Packaging & Shipping
GOOD QUALITY ENGINE
FRONT VIEW
QUICK HITCH BUCKET AND FORKLIFT
SEAT AND AIR CONDITIONER
